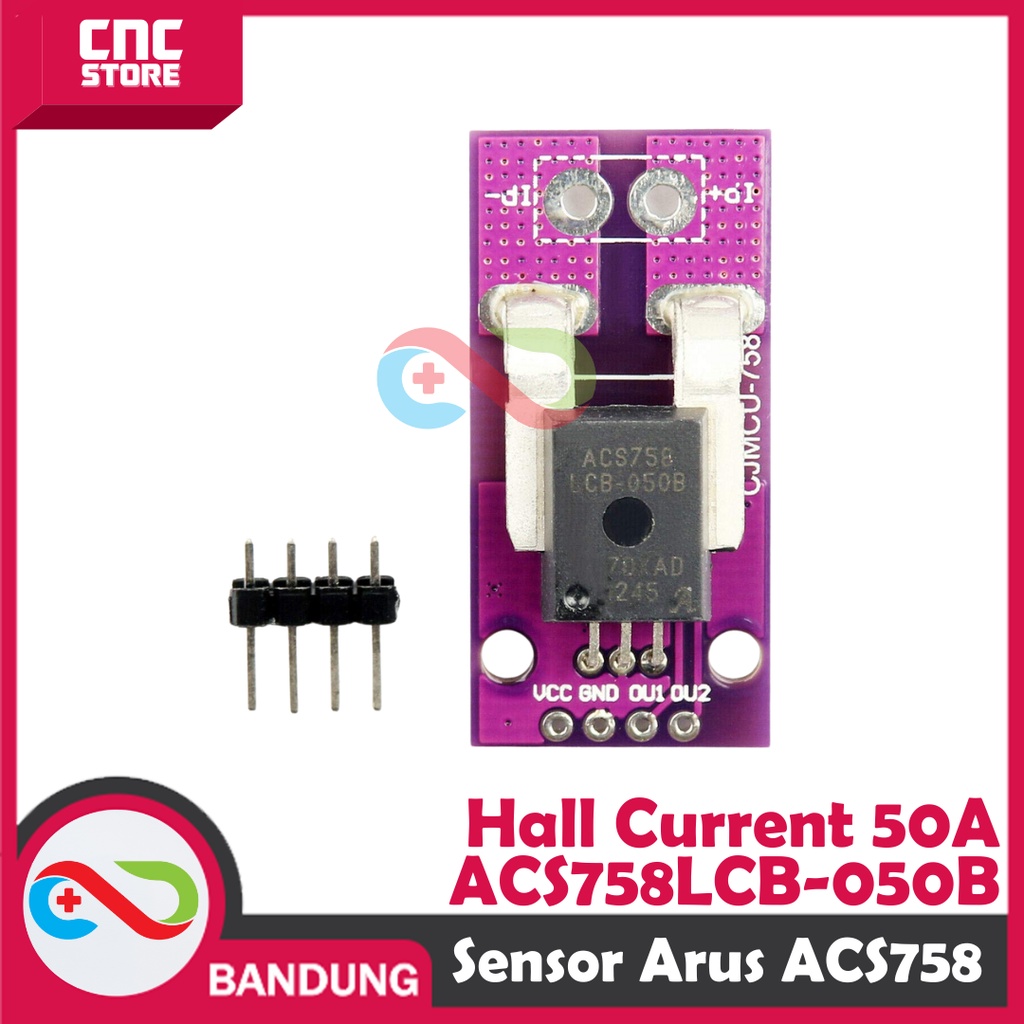

ACS758 LCB-050B-PFF-T Sensor Arus ACS758 50A Current Arduino

Detail ACS758 LCB-050B-PFF-T Sensor Arus ACS758 50A Current Arduino

SEN-0148
========


Deskripsi:
=================================
ACS758LCB-050B-PFF-T.
Sensor arus ini memakai metode Hall Effect, outputnya linier yang memberikan
solusi ekonomis dan tepat untuk penginderaan arus AC atau DC.
Rentang pengukuran arus sampai 50A dan tegangan kerja 3.3-5V dengan output yang
dapat dihubungkan ke mikrokontroler dengan mudah. Hemat dalam penggunaan pinout.

Features and Benefits:
=================================
1.Industry-leading noise performance through proprietary amplifier and filter
design techniques
2.Integrated shield greatly reduces capacitive coupling from current conductor
to die due to high dV/dt signals,and prevents offset drift in high-side,high
voltage applications
3.Total output error improvement through gain and offset trim over temperature
4.Small package size, with easy mounting capability
5.Monolithic Hall IC for high reliability
6.Ultra-low power loss: 100 internal conductor resistance
7.Galvanic isolation allows use in economical, high-side current sensing in high
voltage systems
8.3.0 to 5.5 V, single supply operation
9.120 KHz typical bandwidth
10.3 us output rise time in response to step input current
11.Output voltage proportional to AC or DC currents
12.Factory-trimmed for accuracy
13.Extremely stable output offset voltage
14.Nearly zero magnetic hysteresis
15.Board Size:38.22*18.03mm

Paket:
=================================
1 x ACS758 LCB-050B-PFF-T Sensor Arus ACS758 50A Current Arduino

Gambar produk
