ACR122U Reader & Writer USB Smartcard RFID NFC ACR 122U Reader 122U - A9

Detail ACR122U Reader & Writer USB Smartcard RFID NFC ACR 122U Reader 122U - A9

ACS ACR-122U (Mifare/Felica Card/Tag Reader & Writer)
USB Interface, SDK Available

Support Mifare Classic, DESFire, NFC Tag
Free SDK (Included Source Code in C++, VB, C#, , Delphi, Java)
Interface USB

Reader Writer ACR 122U

Firmware version: ACR122U103
Alat baca tulis NFC dan kartu RFID dengan frekuensi 13.56 MHz

Kompatibel dengan chip Mifare:
- Classic 1k/4k
- Ultralight
- Ultralight EV1
- Ultralight C
- Desfire EV1

Kompatibel dengan chip:
- NTag 203, 210, 212, 213, 215, 216

USB 2.0 Full Speed Interface
CCID Compliance
Smart Card Reader:
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Built-in anti-collision feature (only 1 tag is accessed at any time)
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Peripherals:
User-controllable bi-color LED
User-controllable buzzer
Supports Android' OS 3.1 and above

Dimensions 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight 70.0 g
Compliance / Certifications
ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI, RoHS 2, USB Full Speed, Microsoft WHQL
Interface USB Full Speed
Operating Distance Up to 50 mm (depends on the tag type)
Supply Voltage Regulated 5V DC
Supply Current 200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature 0-50 C
Operating Frequency 13.56 MHz
Smart Card Interface Support
ISO14443 Type A & B
MIFARE

SDKnya kami kirimkan via Email

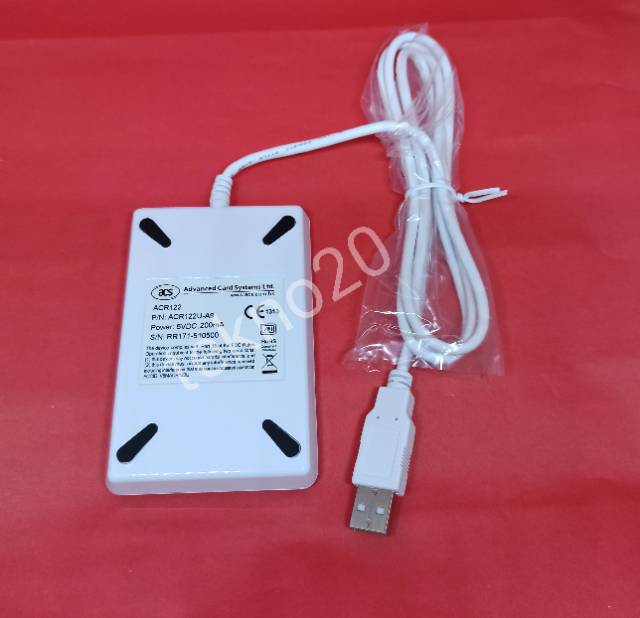

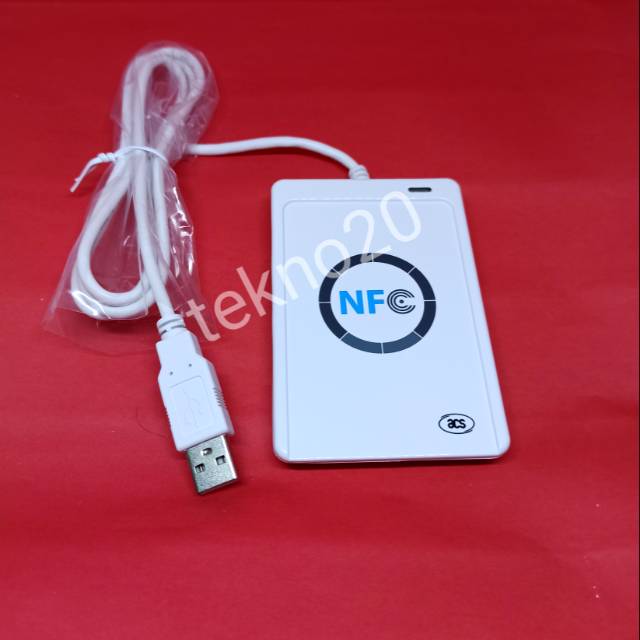

Gambar produk
