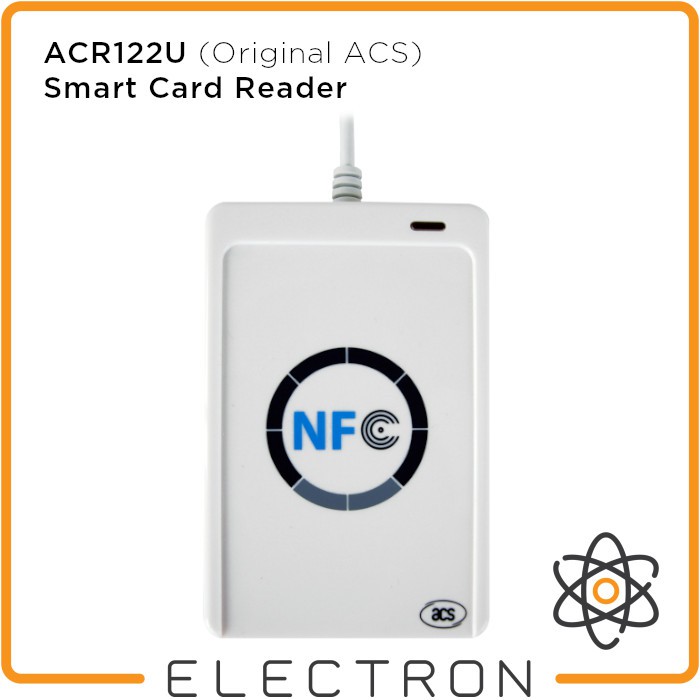

ACR122 ACR122U ACR 122U NFC RFID Reader Writer Smart Card Mifare FeliCa 13.56 MHz

Detail ACR122 ACR122U ACR 122U NFC RFID Reader Writer Smart Card Mifare FeliCa 13.56 MHz

Firmware version: ACR122U103

Alat baca tulis NFC dan kartu RFID dengan frekuensi 13.56 MHz.

Silakan kirim pesan pribadi untuk minta dikirimkan file SDK nya.

Kompatibel dengan chip Mifare:
- Classic 1k/4k
- Ultralight
- Ultralight EV1
- Ultralight C
- Desfire EV1

Kompatibel dengan chip:
- NTag 203, 210, 212, 213, 215, 216

USB 2.0 Full Speed Interface
CCID Compliance
Smart Card Reader:
Read/write speed up to 424 kbps
Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Built-in anti-collision feature (only 1 tag is accessed at any time)
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Peripherals:
User-controllable bi-color LED
User-controllable buzzer
Supports Android' OS 3.1 and above

Dimensions 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight 70.0 g
Compliance / Certifications
ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI, RoHS 2, USB Full Speed, Microsoft WHQL
Interface USB Full Speed
Operating Distance Up to 50 mm (depends on the tag type)
Supply Voltage Regulated 5V DC
Supply Current 200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature 0-50 C
Operating Frequency 13.56 MHz
Smart Card Interface Support
ISO14443 Type A & B
MIFARE
FeliCa
4 types of NFC (ISO/IEC18092) tags
Operating System Support
Windows
Win CE 5.0 and 6.0
Linux
Mac OS
Android 3.1 and above

Gambar produk
