Ac / Dc Clamp Meter Hioki 3288 Original

Detail Ac / Dc Clamp Meter Hioki 3288 Original

Ac / Dc Clamp Meter Hioki 3288 Original


Brand : Hioki
Type : 3288
Made in Japan

Hioki clamp meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. The 3288 and 3288-20 clamp multimeters are AC/DC current and voltage clamp meters that also measures continuity and resistance, featuring a double jaw lever and slim profile for easy access to crowded wires.

■ Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

Specs:
* DC current100.0/ 1000 A, Basic accuracy: ±1.5 % rdg. ±5 dgt.
* AC current100.0/ 1000 A, (10 Hz to 500 Hz, Average rectified),
Basic accuracy: ±1.5 % rdg. ±5 dgt.
* DC voltage419.9 mV to 600 V, 5 ranges,
* AC voltage4.199 V to 600 V, 4 ranges,
Basic accuracy: ±2.3 % rdg. ±8 dgt.
(30 to 500 Hz, Average rectified)
* Resistance 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2 % rdg. ±4 dgt.
* Crest factor N/A 3
* Other functionsContinuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
* DisplayLCD, max. 4199 dgt., Display refresh rate: 2.5 times/s
* Power supplyCoin type lithium battery (CR2032) ×1, Continuous use 60 hoursCoin Continuous use 35 hours
* Core jaw dia.φ 35 mm (1.38 in)
* Dimensions and mass57 mm (2.24 in) W × 180 mm (7.09 in) H × 16 mm (0.63 in) D, 150 g (5.3 oz)

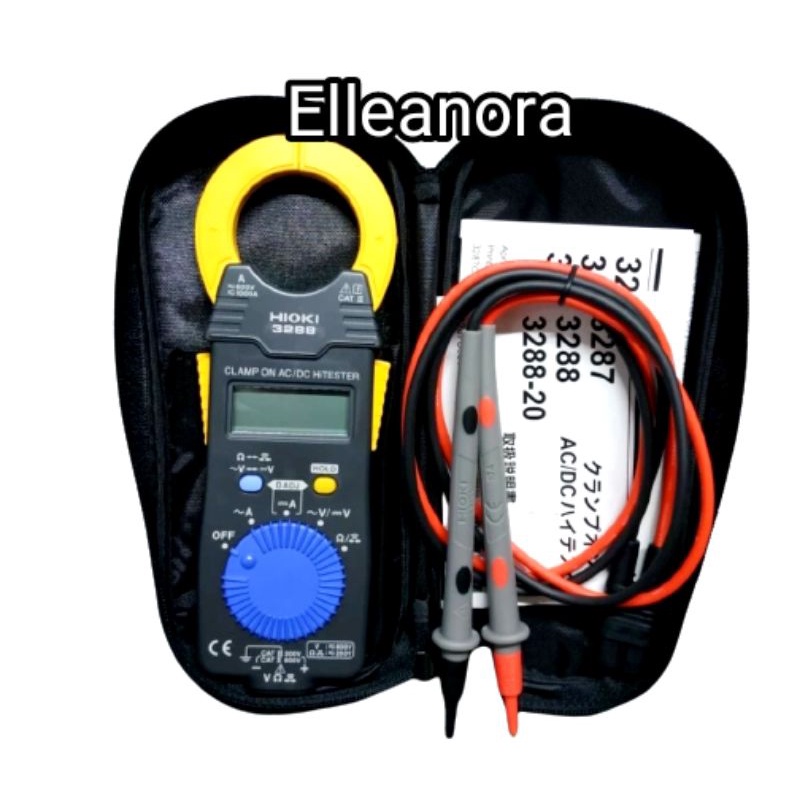

* AccessoriesInstruction manual ×1, Test Lead L9208 ×1, Carrying Case 9398 ×1
