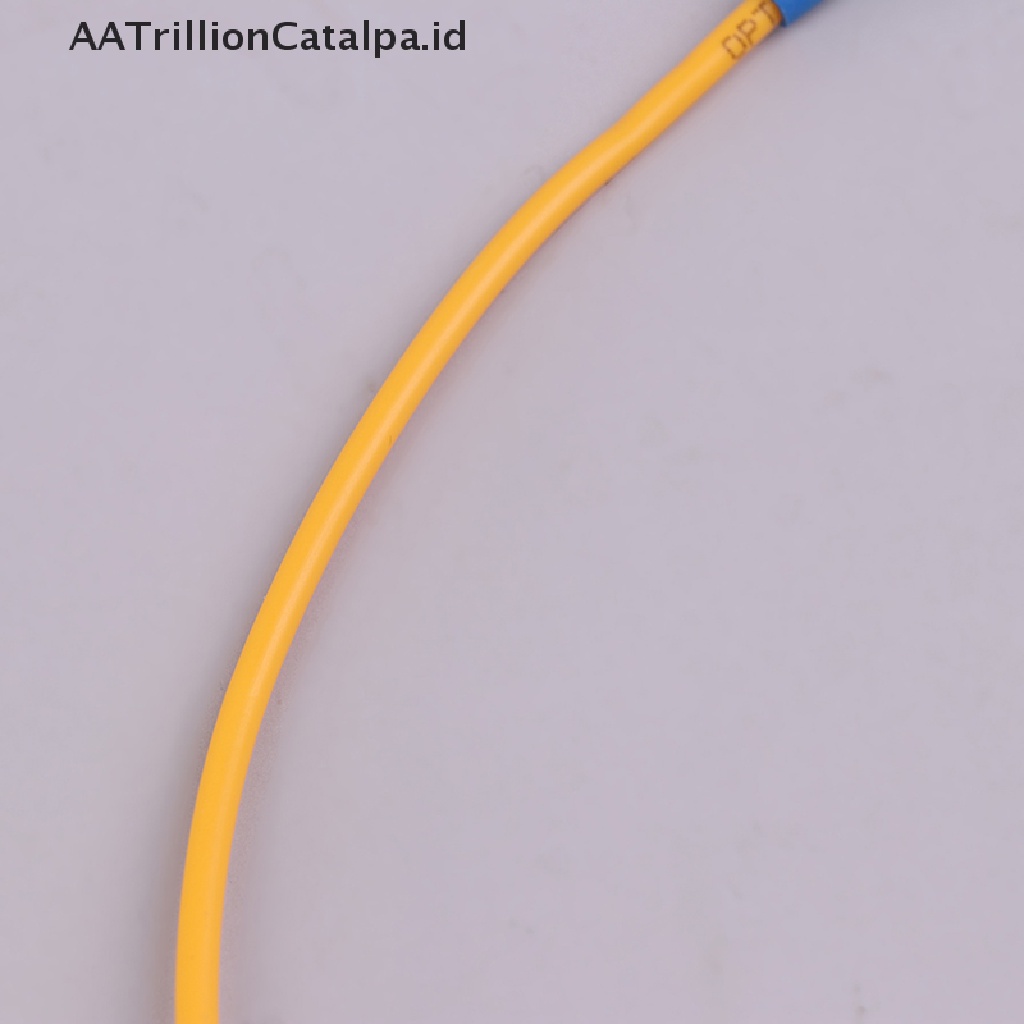

Aatrillioncatalpa Kabel Serat Optik SC-SC Simple Panjang 3m

Detail Aatrillioncatalpa Kabel Serat Optik SC-SC Simple Panjang 3m

It commonly uses for connecting Applications CCTV, Fiber Optic Communication Systems, Fiber Optic Transmission, Construction of the access network, ODF, FTTX applications. Low insertion loss and rear reflection loss. High temperature stability Ce, rohs, fcc.

Product Type : SC to SC Fiber Optic Cable
Conditions : Brand NEW, Work with all brands
Cable Length: 3 Meter
Colour: Yellow
Features:
Cable type: Simplex
Core cladding diameter: Single mode 9/125um
Cable outer diameter (mm): 3mm
Insertion loss: singlemode ≤1dB; Return loss: PC≥55dB UPC≥55dB, APC≥60dB
Number of plug: ＜1000 times
Change the amount of insertion loss: <0.3dB
Interchangeability: any docking ≤0.18dB
Tensile strength: 45Kg
Vibration test: <0.1dB (5-50Hz, 1.55SM amplitude)
Working temperature: -40~+80°C
Storage temperature range: -40~+85°C
Standards: RoHS Compliant

1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Due to different factory measuring techniques, there might be some cable length error 10%-20%.
