(AATrillionCatalpa) Blok Terminal Strip Konektor Speaker Stereo 12 Way 2 Baris
Deskripsi singkat
Perlengkapan Rumah > Perkakas > Perkakas Lainnya > (AATrillionCatalpa) Blok Terminal Strip Konektor Speaker Stereo 12 Way 2 Baris
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail (AATrillionCatalpa) Blok Terminal Strip Konektor Speaker Stereo 12 Way 2 Baris
Features:1. 12 pins 2 row push type speaker terminal board.
2. Spring load design,easy to use
3. Rated Load: AC 50V 3A
4. Wire Range: AWG 24-16
5. Temperature: -40 to 55 C
6. Contact Resistance: <= 0.03 Ohm
7. Insulation Resistance: >= 100M Ohm
8. Withstand Voltage: AC 500V 1 Minute
9. Actuating Force: 1 Kgf
10. Life: >10000 Times
Specifications
1.Type:Push Release Type
2.Material:Plastic, Metal
3.Mounting Hole Dia.:3mm/ 0.12inch
4.Total Size:9 x 3 x 2.5cm/ 3.5 x 1.2 x 1inch(L*W*H)
5.Pin Quantity:12 pin
6.Mounting Hole Center Distance:84mm/ 3.3inch
7.Position:12 Way (2 row)
Package included:
1 x Speaker Terminal Strip Block

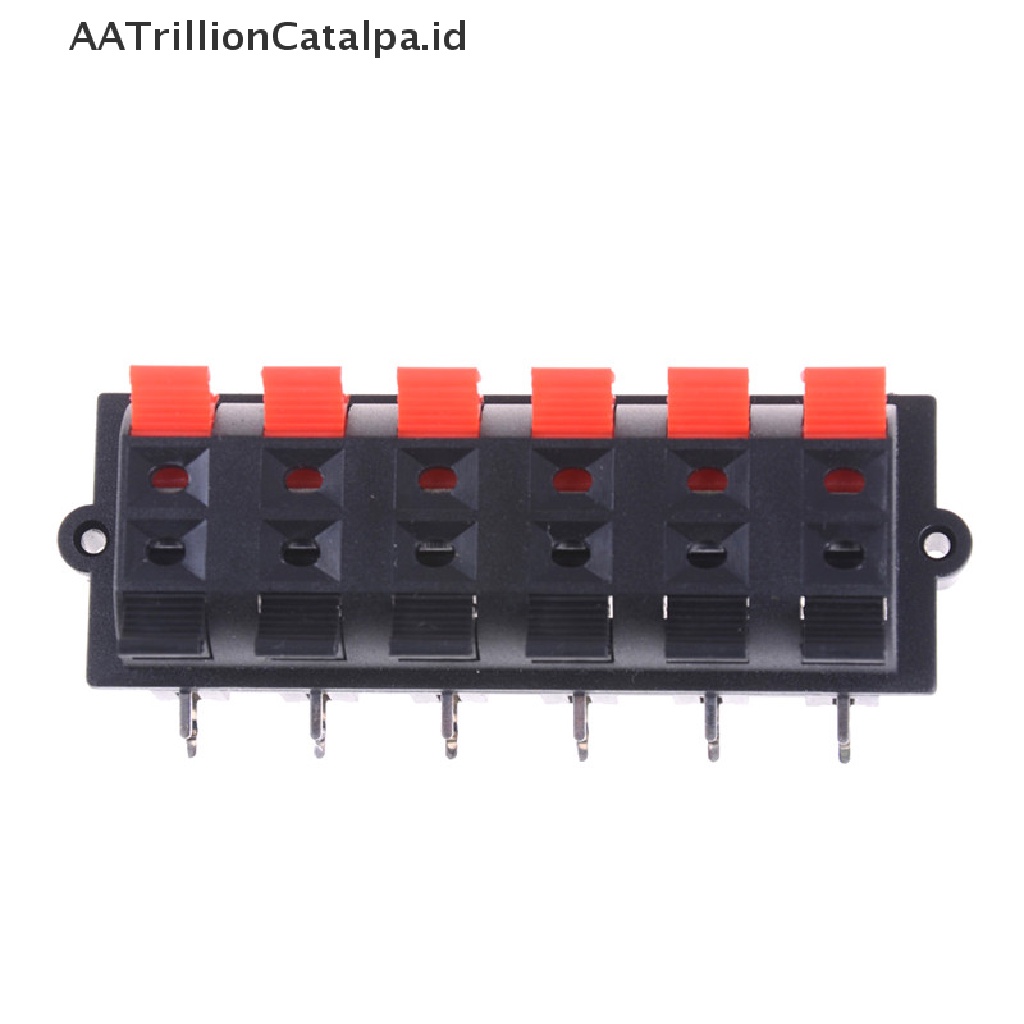

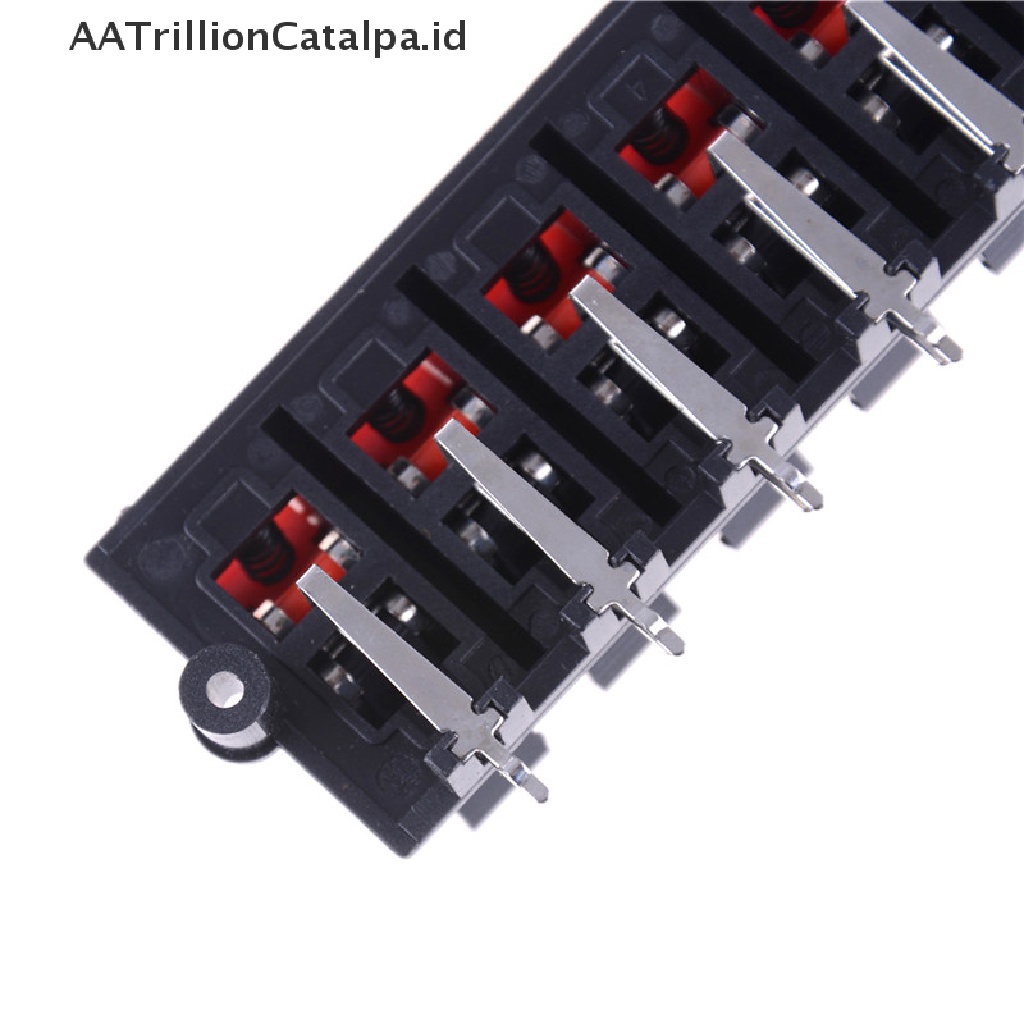

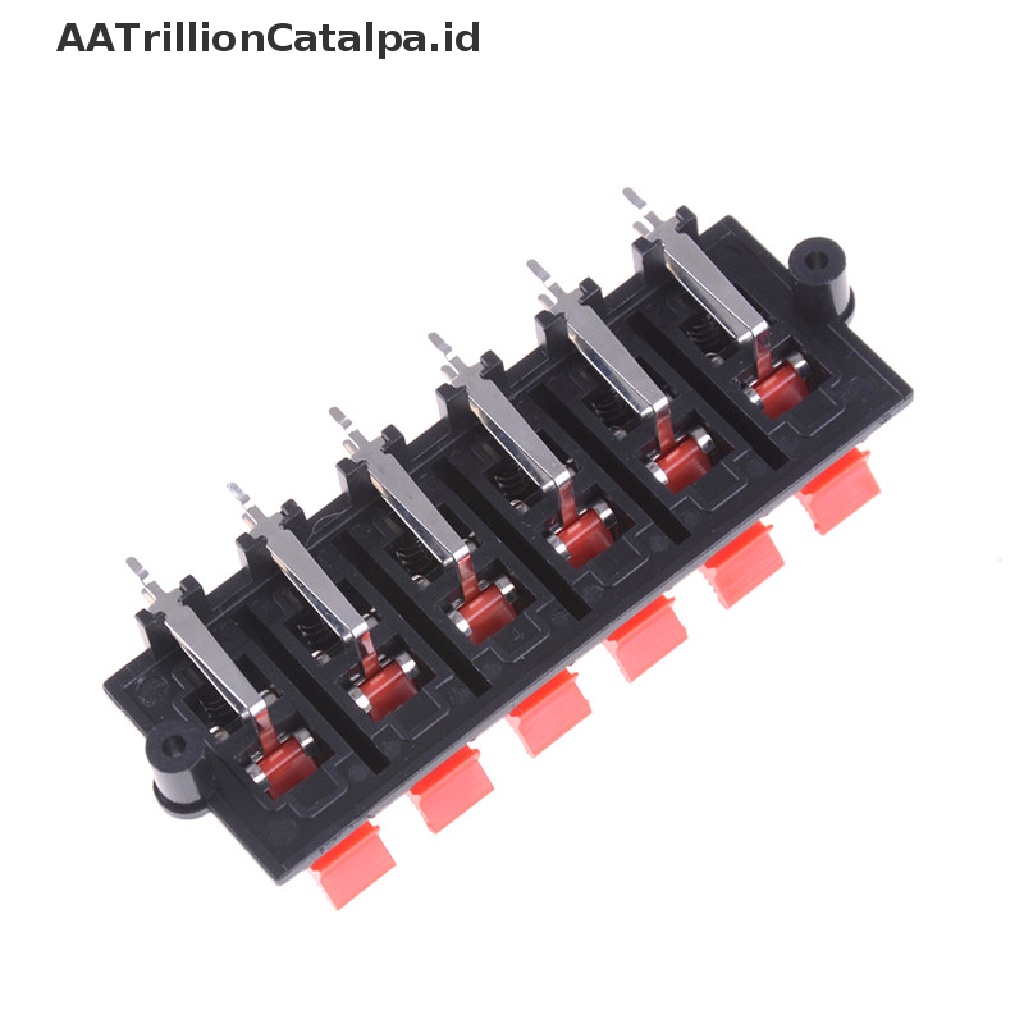

Gambar produk
