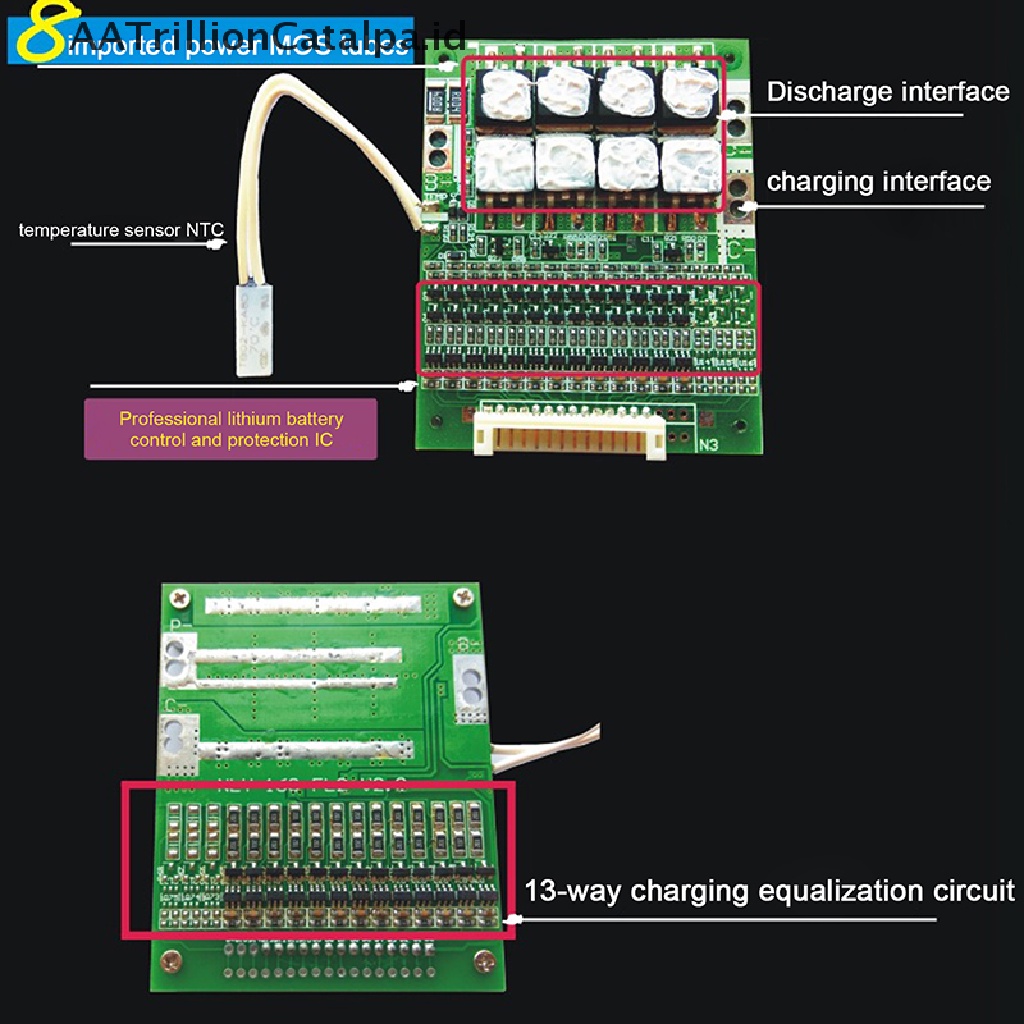

Aatrillioncatalpa 13S 48V 50A 18650 Li-ion Lithium Papan PCB BMS Pelindung Equalizer

Detail Aatrillioncatalpa 13S 48V 50A 18650 Li-ion Lithium Papan PCB BMS Pelindung Equalizer

Features:
It is suitable for 3.7V ternary, lithium cobaltate, lithium manganese oxide battery.

Applicable power and voltage: 48V, less than 2500W

The overcharge protection

Over discharge protection

Over current protection

Output short circuit protection

Overtemperature protection (maximum discharge temperature: 75 degrees,

minimum charging temperature: -7 degrees)



Specifications:
Color:As picture
Size: 70mm/2.76"×56mm/2.20"
Working current: 50A (max)
Continuous working current: 40A (max)
Over-discharge protect voltage: 2.6V
Over-charge protect voltage: 4.25V
Charge current: 40A
Balance charge voltage: 4.2V
Application: electric car, twist car, electrician bicycle, scooter, inverter and so on.
Package Include:1PC Li-ion Lithium Battery Charge Board

Note:
1.Please allow 0.1-0.3cm differences due to manual measurement, thanks.
2.Please understand because of the light irradiation or computer display difference, so I can't guarantee photos and real color is 100% the same.
