A3144 OH3144 Y3144 HALL EFFECT SENSOR SWITCH IC

Detail A3144 OH3144 Y3144 HALL EFFECT SENSOR SWITCH IC

P/N : SEN-0021

===============

The A3144 is an integrated Hall effect nonlatching sensor. That's nice but what does it do? Holding a magnet near the sensor will cause the output pin to toggle. This makes for a robust presence sensor. A reed sensor also works nicely, but can be limited by the glass encapsulation and size. A hall effect sensor is much smaller, but can handle less current than a reed switch.

The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal bandgap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range.If a magnetic flux density larger than threshold Bop, DO is turned on (low). The output state is held until a magnetic flux density reversal falls below Brp causing DO to be turned off (high).

Specifications:
- Working Voltage: 3.5 - 24 V
- Technology: CMOS
- Input Type: Schmitt Trigger
- Output Type: Open-drain
- Output Current: 50 mA (max)
- Packaging: TO-92
- Features; Equipped internal voltage regulator

Paket : 1x A3144 OH3144 Y3144 HALL EFFECT SENSOR SWITCH IC

Order yg kami terima minimal Rp.5.000 diluar ongkir, di bawah Rp.5.000 tidak akan kami proses, order diatas Rp.5.000 akan kami proses.

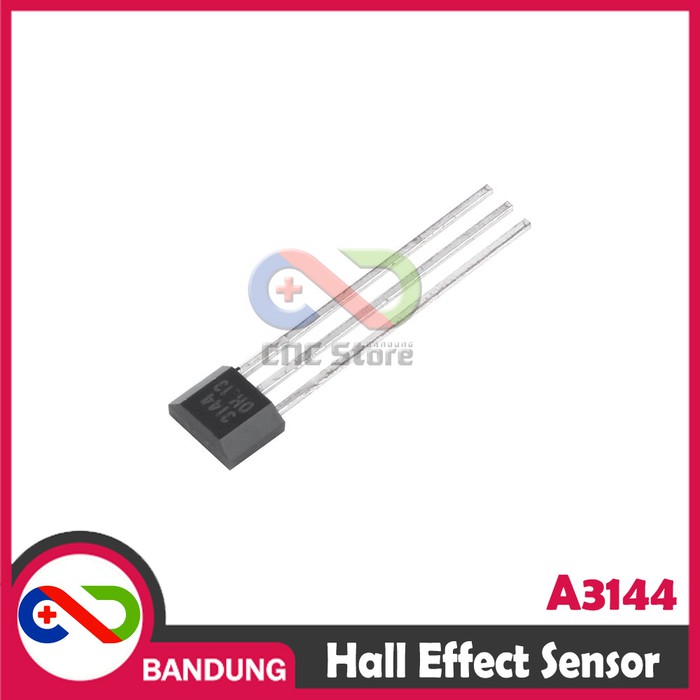

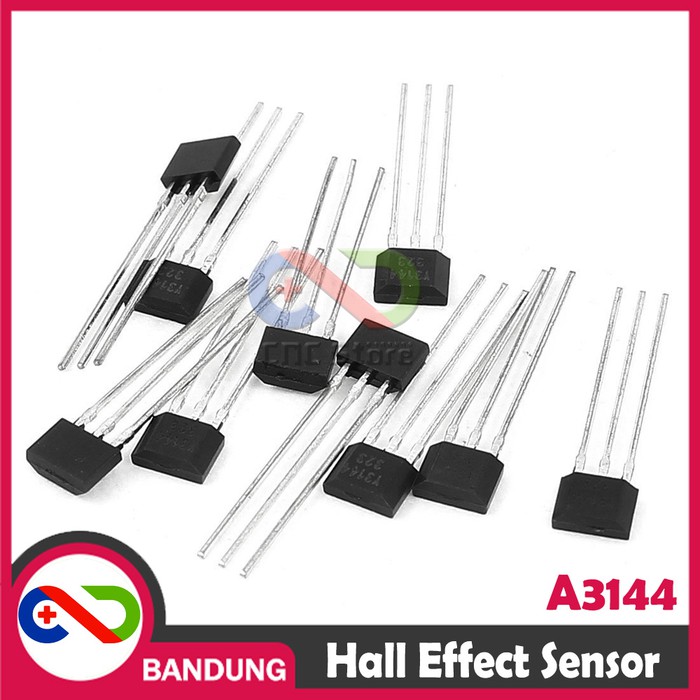

Gambar produk
