A3003 Digital Multimeter Pen Type Meter 4000 Counts Voltage Current Tester

Detail A3003 Digital Multimeter Pen Type Meter 4000 Counts Voltage Current Tester

ANENG A3003 Digital Multimeter Pen Type Meter 4000 Counts with Non Contact AC/DC Voltage Current Resistance Capacitance Hz Tester Tool
Feature:
1. This is a clamp type multimeter with high reliability, high precision and easy to carry.
2. Multi function, it can measure AC and DC voltage, current, capacitance and resistance accurately.

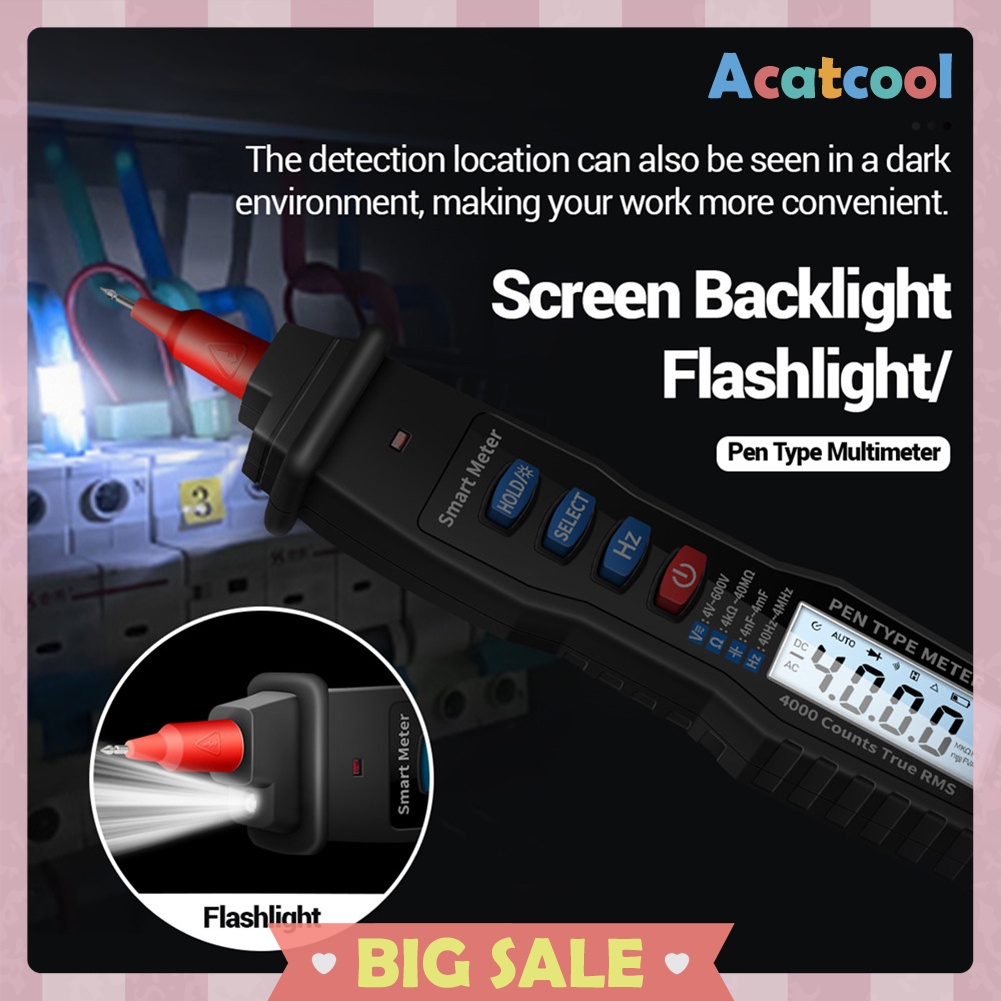

3. With LCD backlight display, convenient to read data in the dark.
4. More advantages, manual range, data holding, diode test, continuity test.
5. Wide application, it is an ideal tool for laboratory, factory and family.

Specification:
Material: ABS
Size: 204 * 39 * 24.4mm/8.03*1.53*0.96''
Power supply: 2 * AAA battery (not included)
Buzzer function: Yes
LCD maximum display: Yes
Data retention function: Yes
Maximum display: 4000 counts

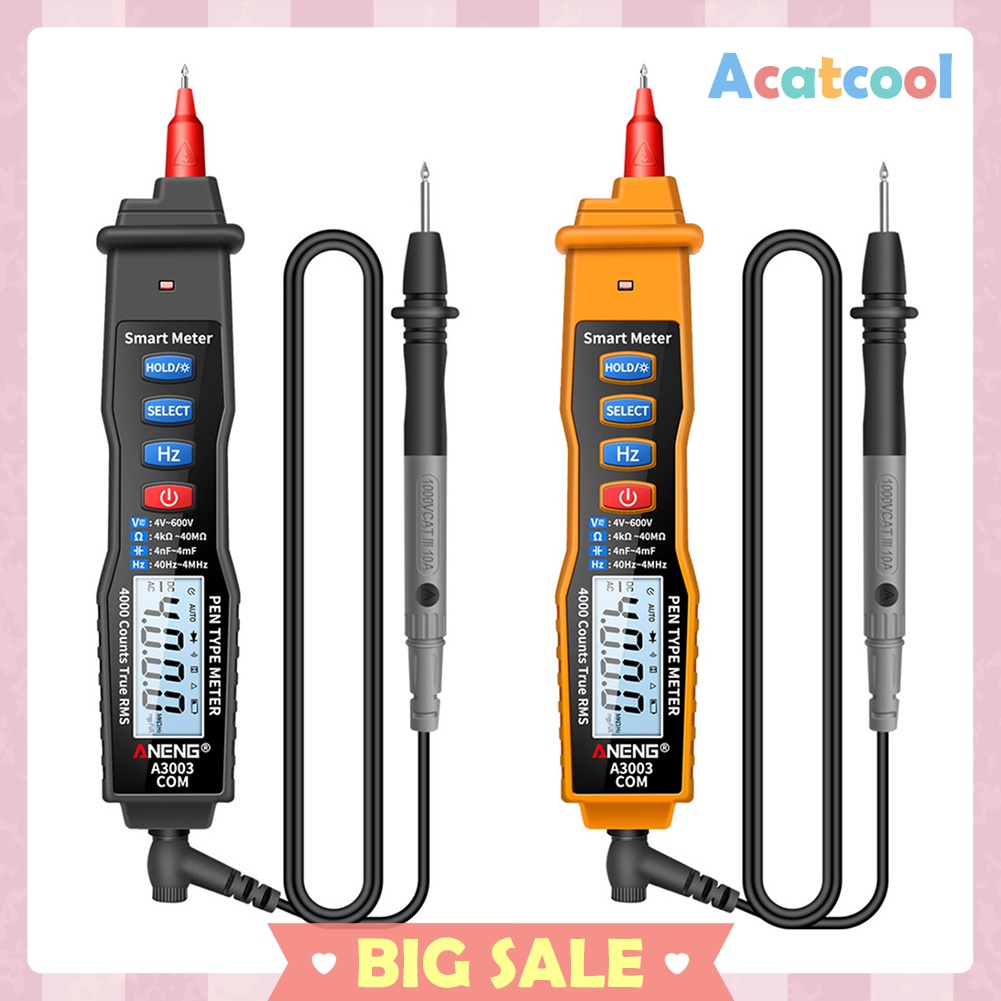

Color: Black, Yellow

             Range          Accuracy
DC voltage 4V/40V/400V   ±(0.8%+ 3)
            600V         ±(1%+ 3)
AC voltage 4V/40V/400V   ±(1%+ 3)
            600V         ±(1.2%+ 5)
Capacitance 4nF/40nF/400nF/4uF/40uF/400uF  ±(3%+ 5)
           4mF           ±(5%+ 10)
Resistance 4kΩ/40kΩ/400kΩ/4MΩ    ±(1%+ 5)
          40MΩ          ±(1.2%+ 8)
Frequency 40Hz/400Hz/4kHz/40kHz/400kHz   ±(0.8%+ 8)
          4MHz           ±(1.2%+ 8)

Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-2cm measuring deviation due to manual measurement.


Included:

1 X Digital Pen Multimeter
1 X Pen Lead
1 X User Manual
