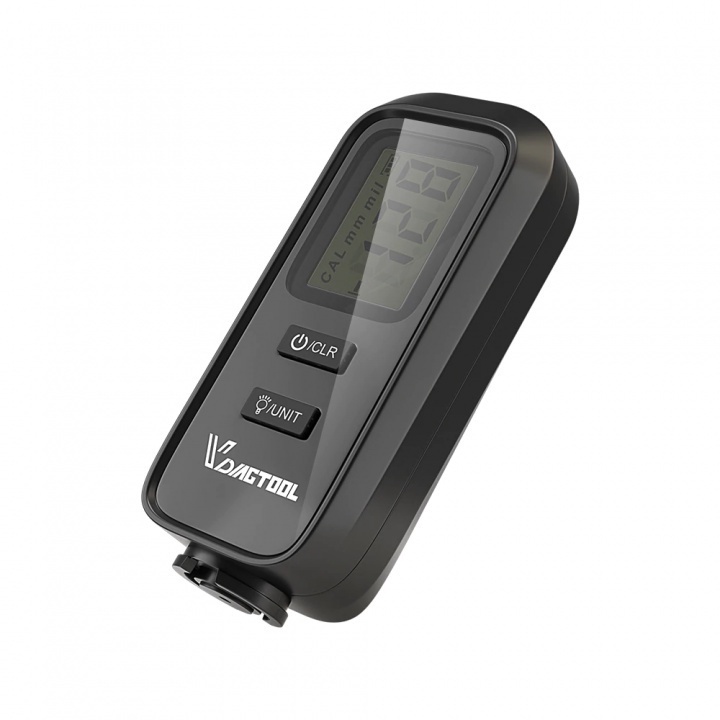

939 VDIAGTOOL VC100 Digital Car Paint Coating Thickness Tester With LCD

Detail 939 VDIAGTOOL VC100 Digital Car Paint Coating Thickness Tester With LCD

Car Paint Tester adalah pengukur ketebalan lapisan cat pada mobil secara portabel, yang dapat berarti memastikan ketebalan lapisan non-logam (seperti cat, film, dll.) Pada substrat net dengan cepat, tidak rusak, dan akurat. Hal ini terutama digunakan untuk mengukur ketebalan cat permukaan kendaraan dan ukuran lapisan lainnya.

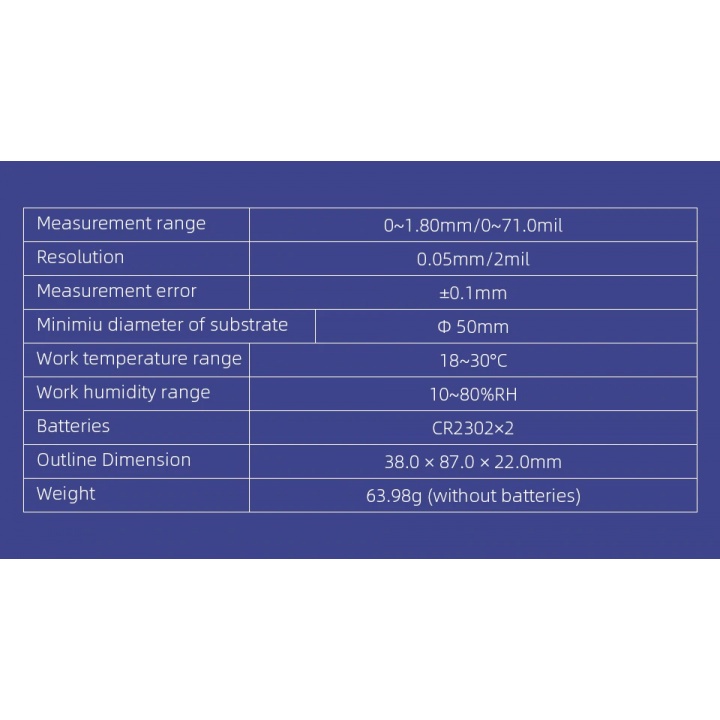

Spesifikasi:
Rentang Pengukuran 0-1.80mm / 71.0mil
Resolusi 0.05mm / 2mil
Kesalahan Pengukuran ± 0.1mm
Diameter Minimum Substrat ?50mm
Ketebalan Minimum Substrat 0.5mm
Kisaran Suhu Kerja 18-30 ° C
Rentang Kelembaban Kerja 10-80% RH
Baterai CR2302 * 2 pcs (TIDAK termasuk)
Dimensi Garis Besar 38 * 87 * 22 mm

Car Paint Tester Button Functions
1.Botton""CLR"":Turn on/off,clear.
2.Botton""UNIT"":Unit Switch,backlight
?
Car Paint Tester Operation Instructions
1.Measurement preparation
Open battery cover and load two CR2032 button batteries(Not Includes); Pay attention to positive and negative pole.
2.Turn on/off
Leave the instrument hang in the air and press""CLR""button to turn it on,LCD full screen display,which means it enters the measurement state.Then long press""CLR""button to turn it off.
Note:Keep it away from the substrate when starting up.
3.Measurement

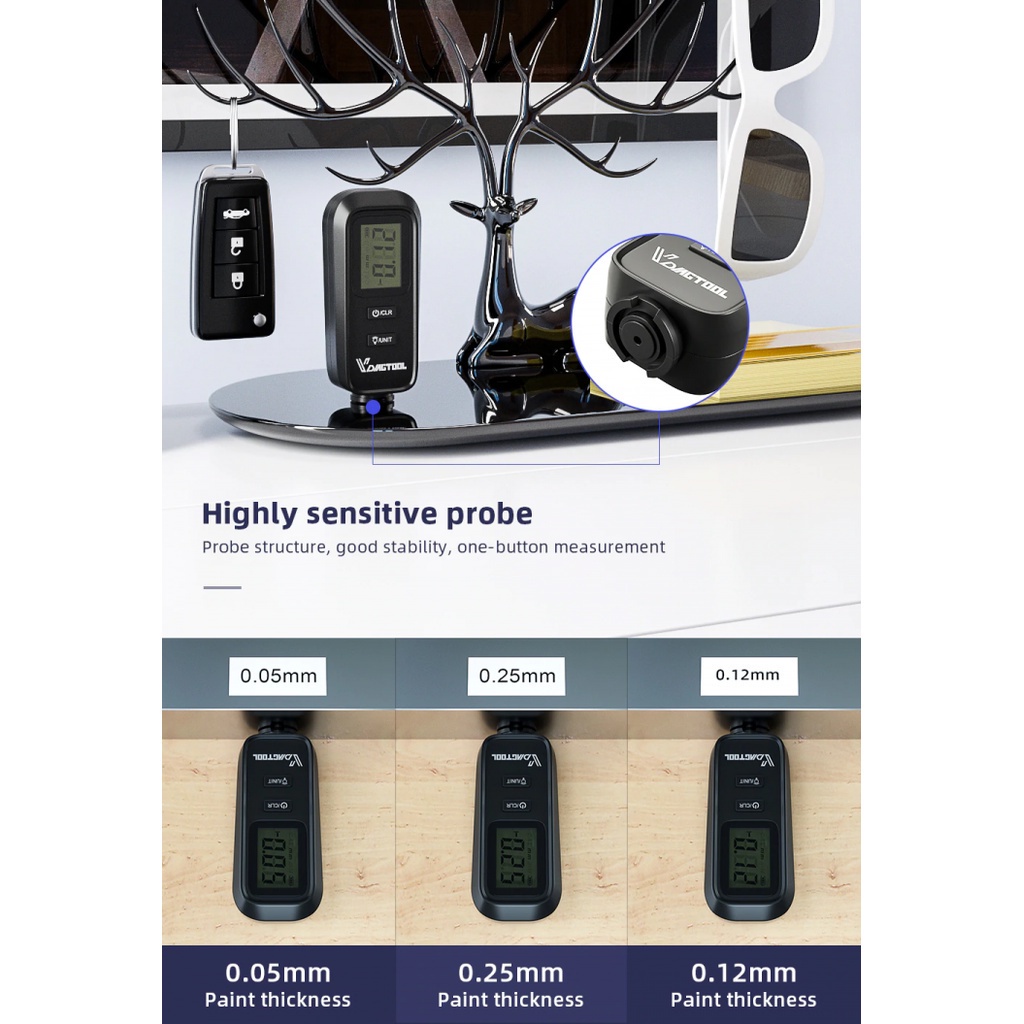

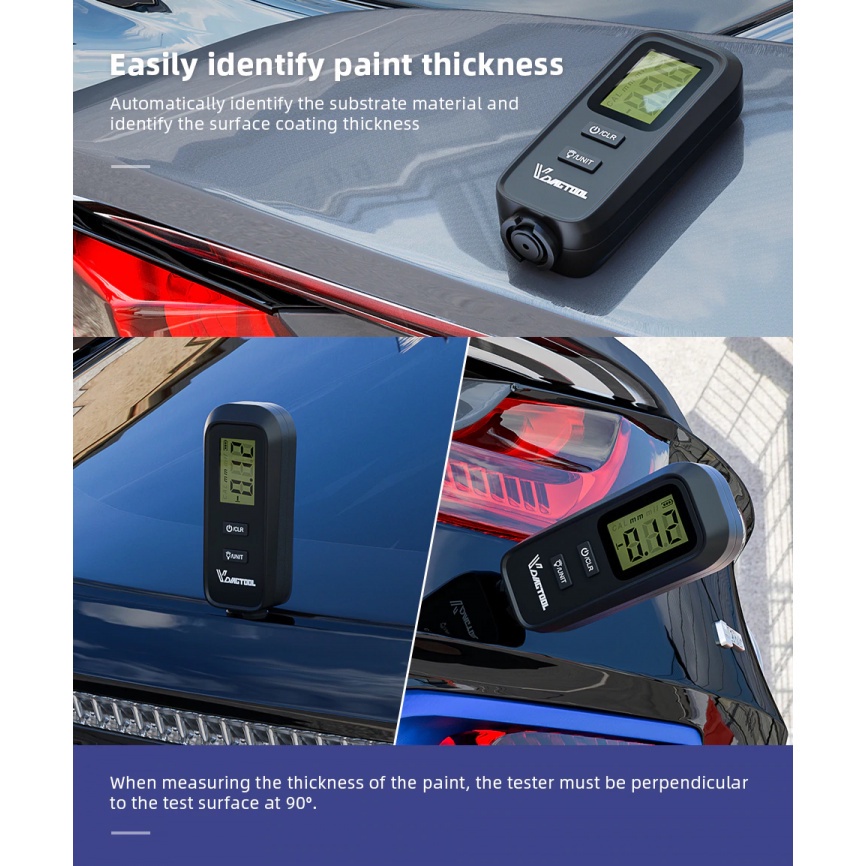

Press the probe onto the coated metal substrate lightly,ensure that the instrument should be perpendicular to the surface of the object that being measured.
4.Unit selection
After start-up,short press""UNIT""button to select measurement unit mm or mil.
5.LCD backlight
After start-up,long press""UNIT""button to turn on/off the backlight.
6.Clear screen data
After start-up,press""CLR""button to clear the data displayed on LCD screen.
7.Power off automatically
The Car Paint Tester will power off automatically if two minutes no operation after start-up.And it will power off automatically as well after five minutes start-up,even when you are operating it.
Note: If The Screen Show You ""OL"" It Means Over Range,Can Test Range(0-1.80mm/0-71.0mil)
