9 UNI-T UT658A - Portable USB-A Voltmeter Power Meter Tester

Detail 9 UNI-T UT658A - Portable USB-A Voltmeter Power Meter Tester

UNI-T UT658A adalah sebuah alat pengukur atau Multimeter Digital yang dapat mengukur tegangan keluaran, arus, energi, kapasitas, resistansi untuk berbagai macam produk elektronik seperti charger USB, power bank, kabel data dan charger dan lain sebagainya.

Didesain untuk mengukur secara presisi, stabil, dan pastinya portabel.

Sangat cocok untuk anda yang menggeluti bidang pengetesan produk elektronik, verifikasi manufaktur hingga teknisi profesional.

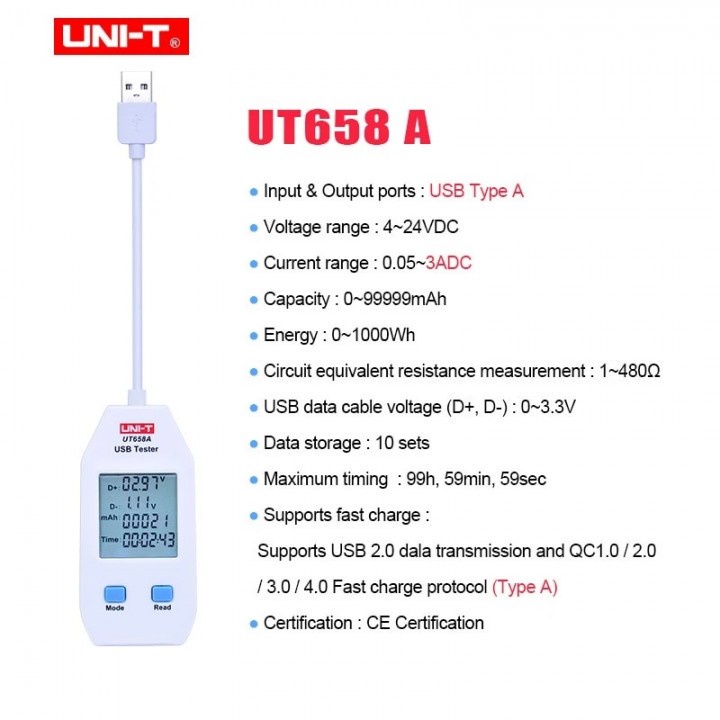

Specification
Brand: UNI-T
Product Name: USB Measuring Device
Product Model: UT658A
Interface Input & Output: USB-A
Voltage Range: 4 - 24V DC (0.01V)
Current Range: 0.05 - 3A DC (0.01A)
Capacity: 0 - 99999mAh (1mAh)
Energy: 0 - 1000Wh
Circuit Equivalent Resistance Measurement: 1 - 48 ohm
USB Data Cable Voltage: 0 - 3.3V

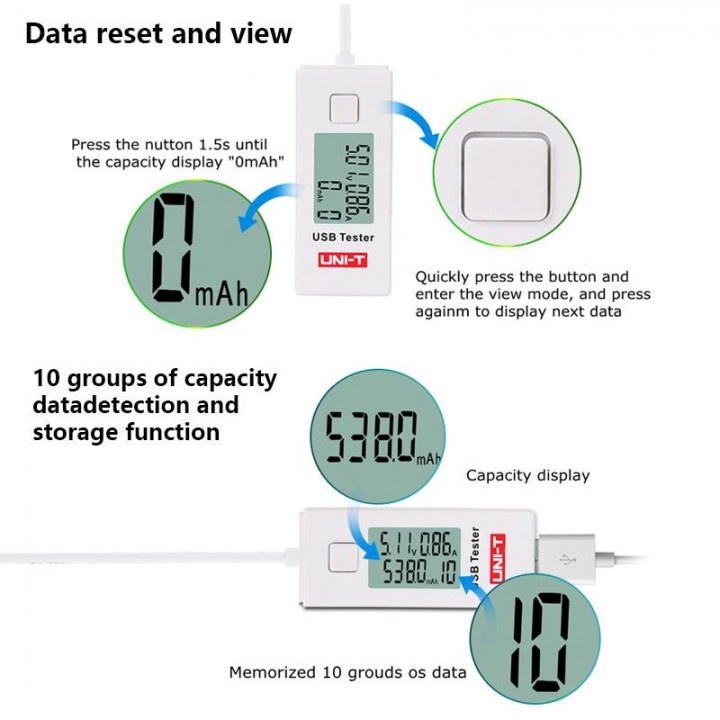

Date Storage: 10 sets
Maximum Timing: 99h, 59min, 59 sec (1s)

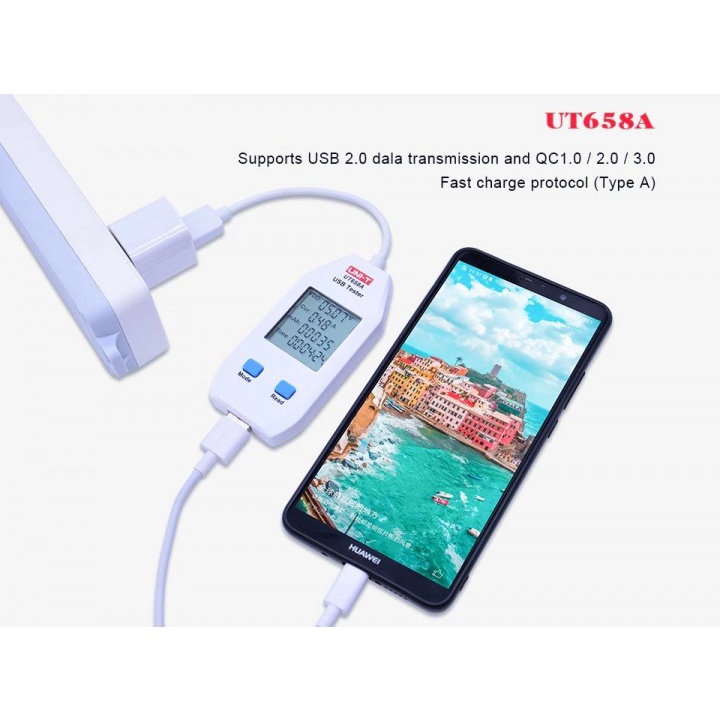

Support Fast Charge: YES (USB 2.0 data transmission, QC1.0/2.0/3.0 Fast Charge Protocol - Type A)
Material: Metal & Plastic
Cable Length: 13.4 cm
Certification: CE Certification

Main Features:

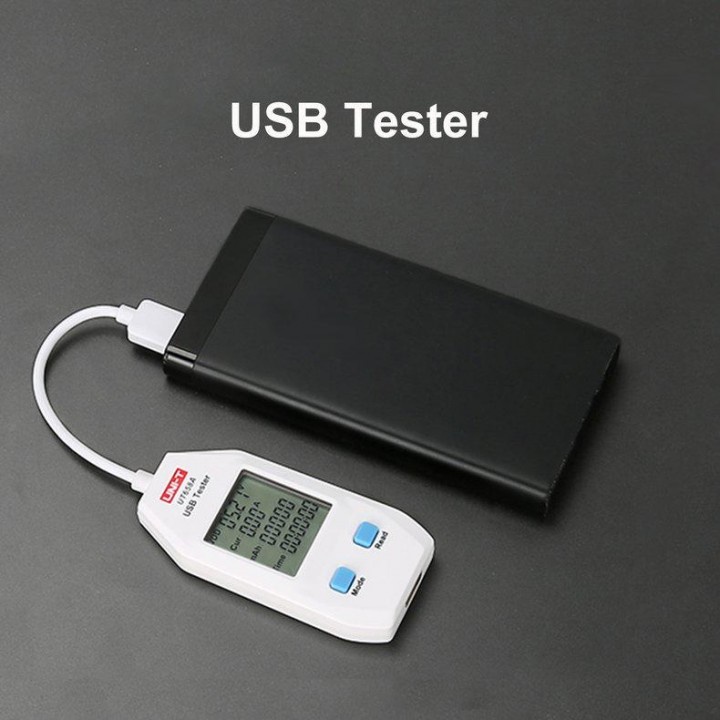

- Second generation of UT658 series USB testers can inspect USB chargers, portable power sources, data cables and other electronics charging devices
- Monitor charging efficiency at any time protect charging equipment
- Measures output voltage, current, energy, capacity, circuit equivalent resistance, D+ and D- voltage of USB data cable and more

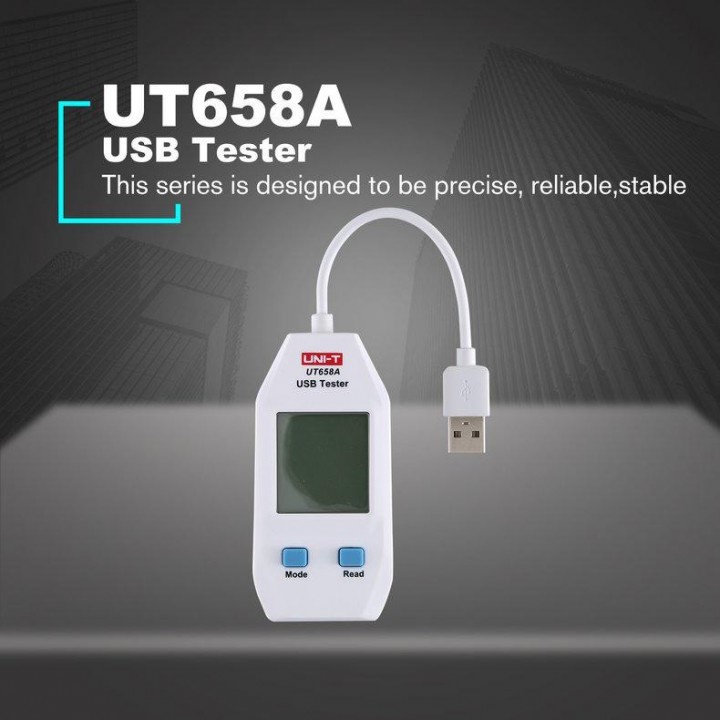

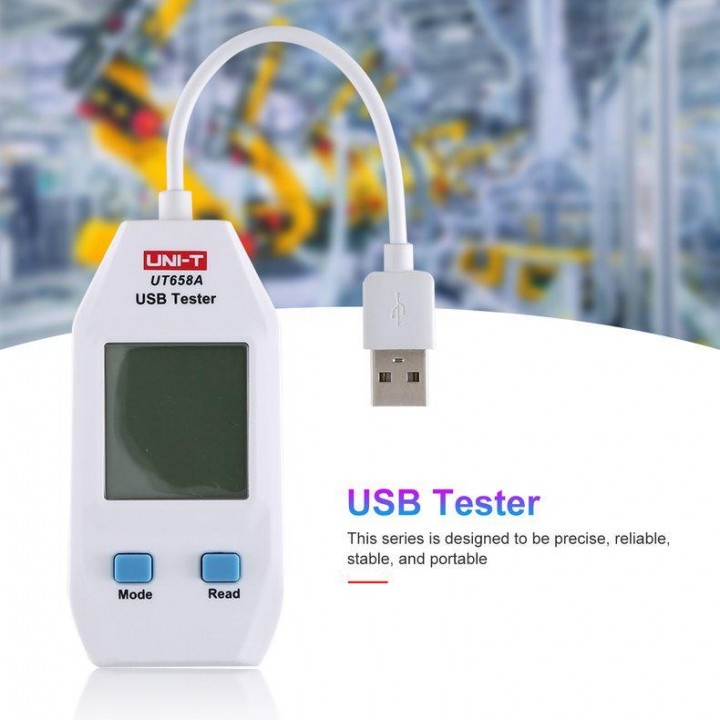

- Designed to be precise, reiable, stable and portable
- Great tools for applications such as manufacturing verification, engineering testing and DIYers

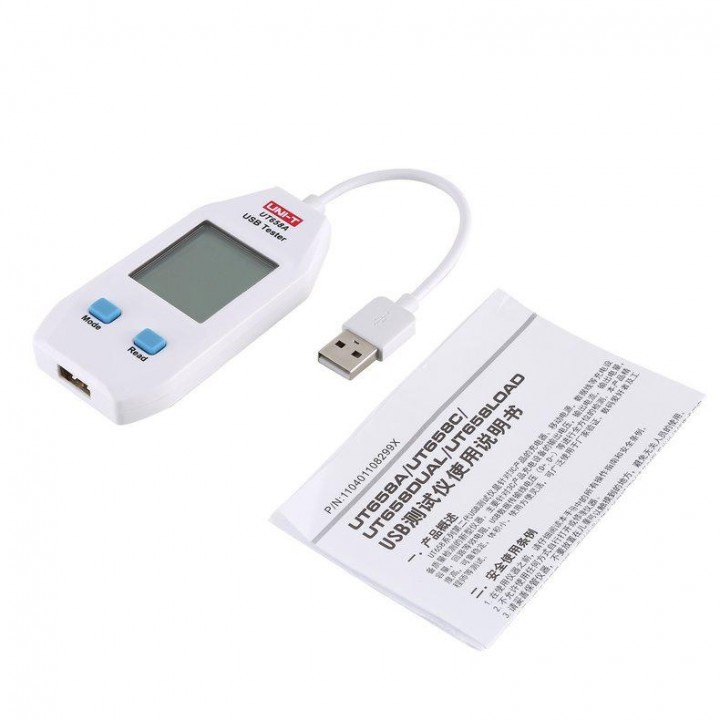

Isi dalam kemasan
1x UNI-T UT658A USB Voltmeter Power Meter
1x User Manual

Dimensi produk: 9.3 x 4.5 x 1.3 cm (50.6 gr)

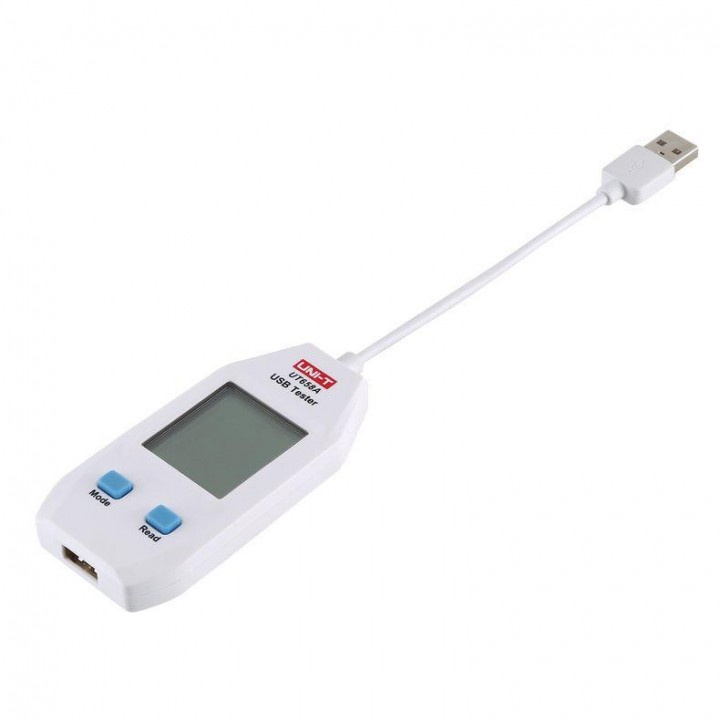

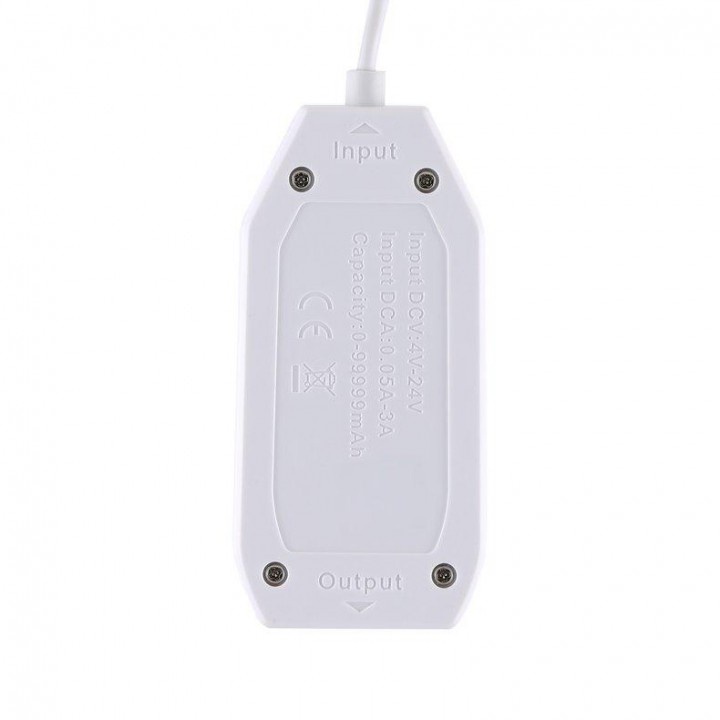

Gambar produk
