Detail 8A Circuit Breaker Push Button / Overload Protector

Circuit Breaker Push Button 8A
125/250 Volt AC,
32 Volt DC

Description :
Technical Parameter
Rated current: 8A
Rated voltage: 125/250Vac 32Vdc 50-60HZ
Insulation withstand voltage testing: 1,500Vac/min
Reset switch overload capacity: 10times current
Lowest voltage: Less than 0.25V
Turnaround time: In 60seconds
Insulation resistance: > 500Vdc100M

Line terminal temperature: 100% test under the 25oC, temperature rise less than 25oC

Contact life testing: 125Vac150% current test more than 500cycles

Testing standard (25oC)
100% of rated current: hold, No-trip
150% of rated current: Trip within 1 hour
200% of rated current: Trip within 5-50seconds
300% of rated current: Trip within 1.6-4.8seconds

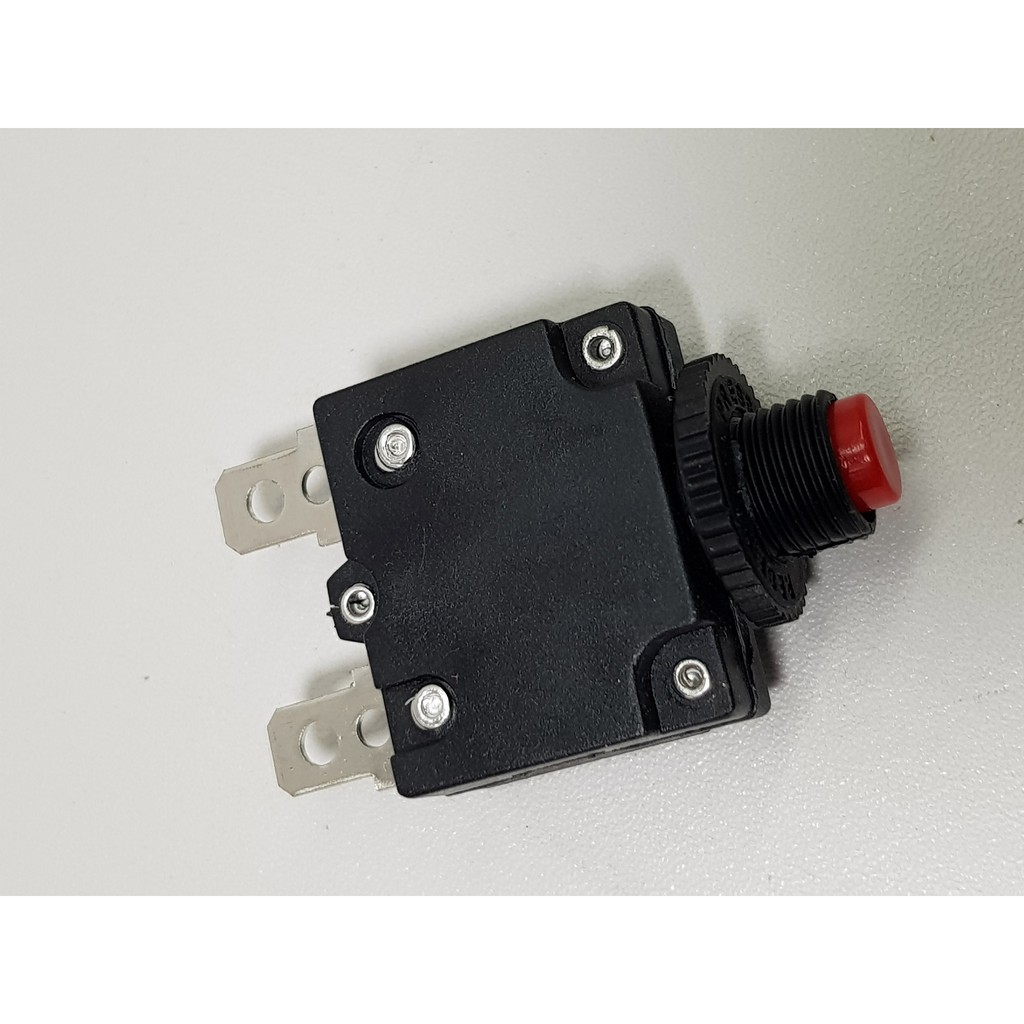

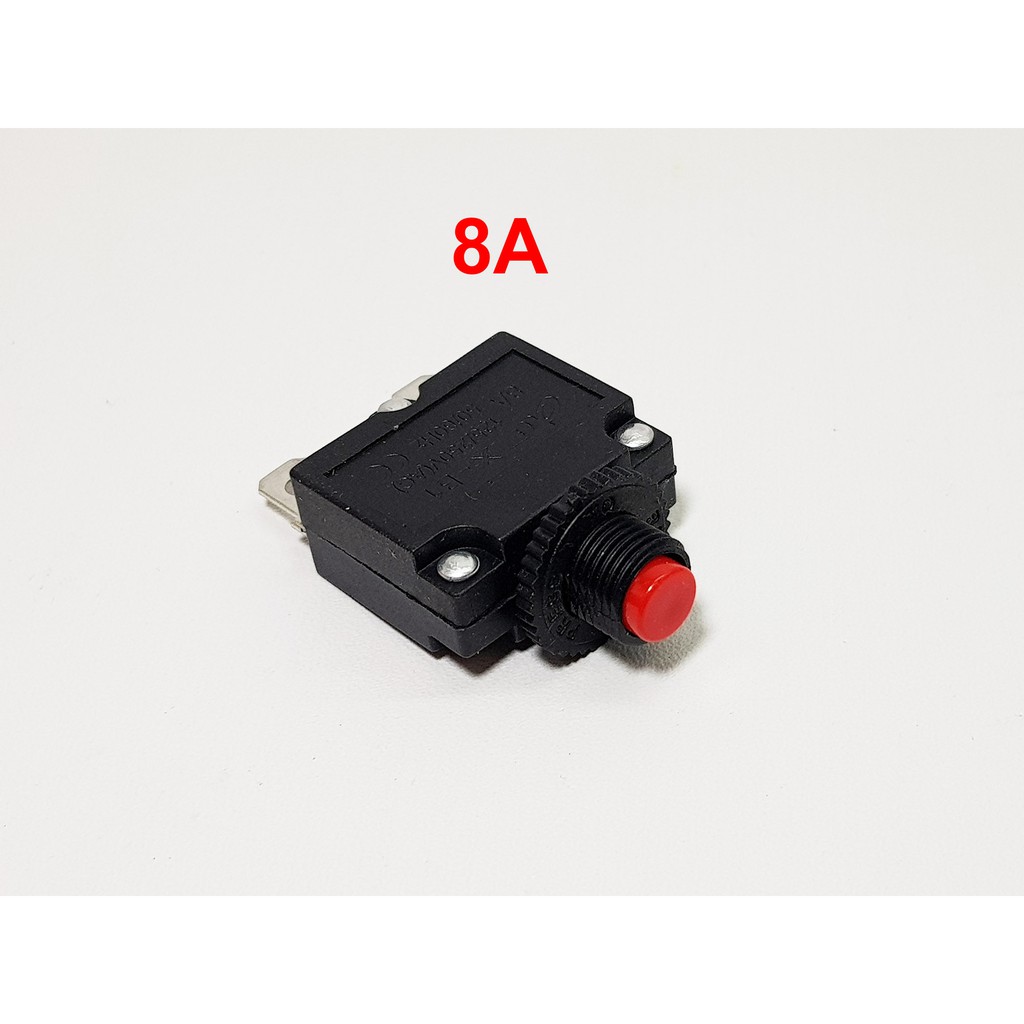

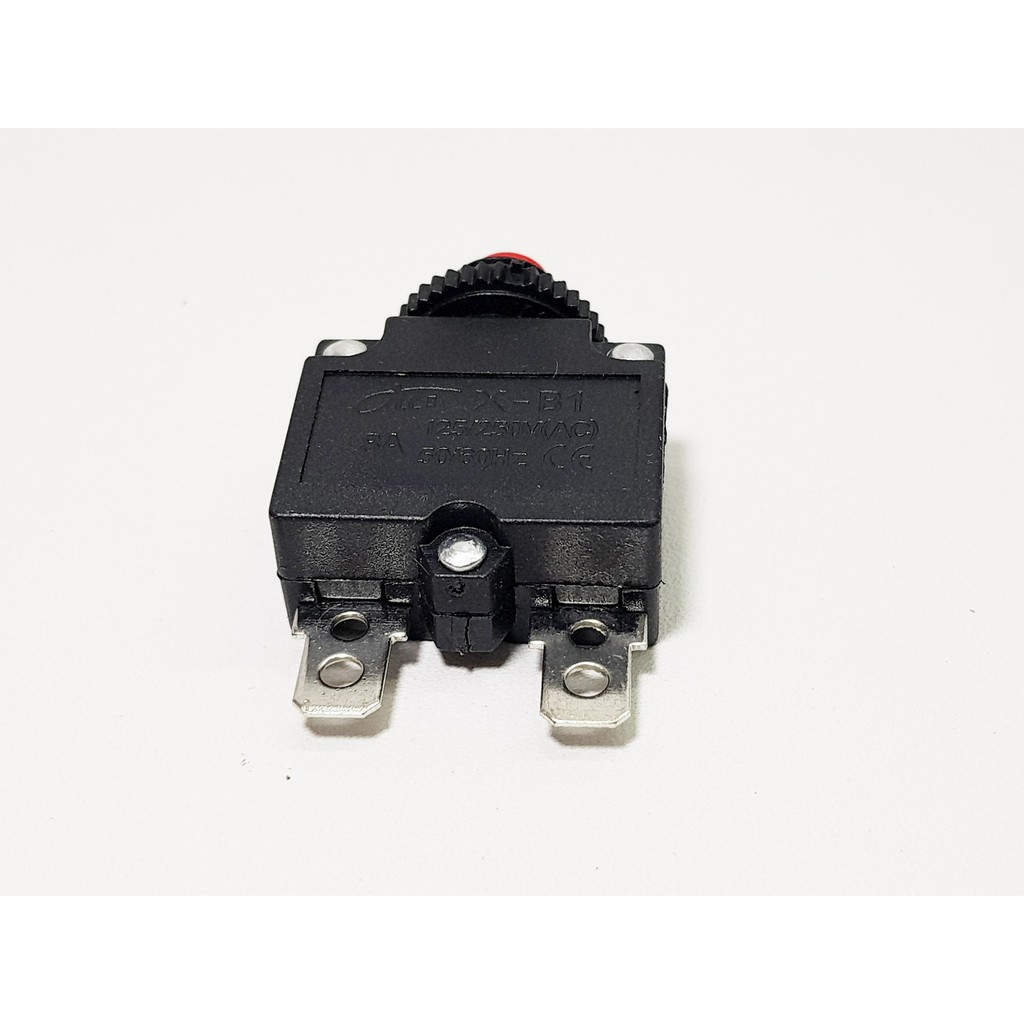

Gambar produk
