8-Way Solenoid Block Air Suspension X2V025

Detail 8-Way Solenoid Block Air Suspension X2V025

AS1002

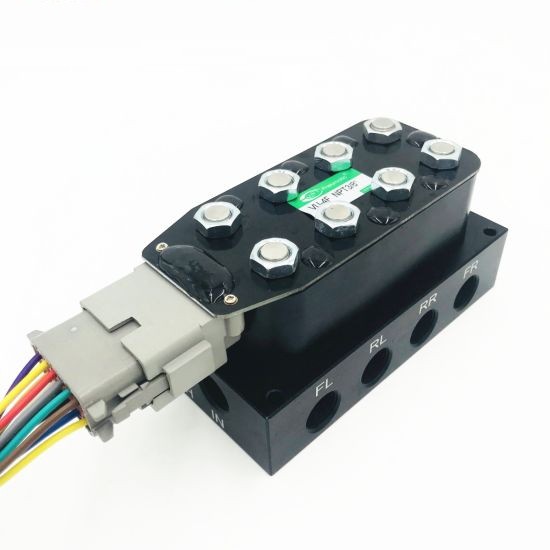

NPT 1/4 VU4 4-Corner Solenoid Valve Unit Air Suspension Manifold is engineered to provide the cleanest installation and most reliable operation on the market. This electronic solenoid valve unit inflates and deflates up to (4) individual Air Springs and has built-in push-to-connect 3/8" D.O.T. approved air fittings for all of its plumbing connections. Its more smart than our previous

manifolds Assembly Valve Block wiring harness 160-4F Solenoid Valve.
Air Compressors AirMaxxx 480C Chrome 3/8 Valves Air Bag Management Blk 7 Switch
Compatiable Suspension Type 4-Corner Full Air Suspension
Voltage Requirements 10.5-16 Volts
Current Requirements 1.1 Amps (for each of the (8) Valves)
Connectors IP67 certified (immersion up to 3 ft)
Fitting Size 3/8 D.O.T. / P.T.C (x 8), 1/2" NPT (x 4)
No. of Inlet Ports 2
No. of Exhaust Ports 2
Max Operating Pressure 200Psi
Cv Flow Factor 0.33
Average Adjustment Time 2.2 Seconds (from 10% to 50% of travel)

1. wiring harness for easy installation

2. 3/8" press-fit D.O.T Fittings eliminate pipe threads for 100% leak free operation

3. High Pressure Rated for operation up to 200psi

4. Anodized Aluminum Manifold to prevent corrosion

5. 100% weather resistant for harsh under vehicle environments

6. For use with any brand of controller or switches
