8 Channel 5V Relay Module Board Shield untuk PIC AVR DSP ARM Arduino

Elektronik > Elektronik Lainnya > 8 Channel 5V Relay Module Board Shield untuk PIC AVR DSP ARM Arduino

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:arduinounoLihat semua produk Elektronik oleh arduinouno

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

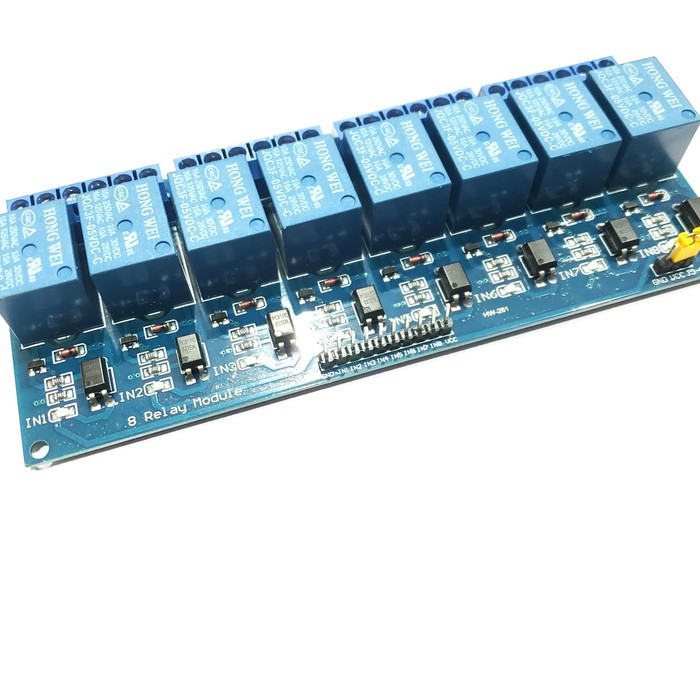

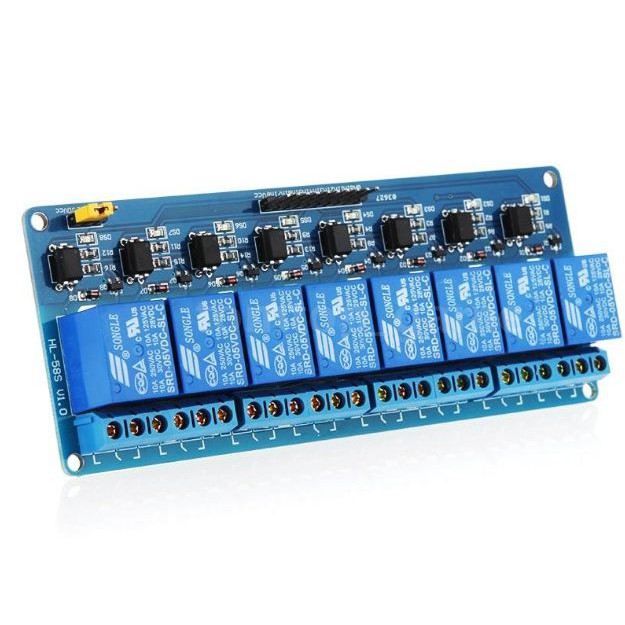

Detail 8 Channel 5V Relay Module Board Shield untuk PIC AVR DSP ARM Arduino

MERK RELAY: SONGLE Original and high quality relay

Features:
This relay module is 5V active low.
It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, etc.
It is also able to control various appliances and other equipments with large current.
Relay output maximum contact is AC250V 10A and DC30V 10A.
Standard interface can be directly connected with microcontrollers.
Red working status indicator lights are conducive to the safe use.
Widely used for all MCU control, industrial sector, PLC control, smart home control.

Specifications:
Working voltage: 5V
Channel: 8 channel
Item size: 13.4 * 5.3 * 1.7cm / 5.28 * 2.09 * 0.67in

Package includes:H9449
1 * 8 Channel Relay Module
