70mai Hardwire kit / 70mai Dashcam Hardwire Kit Untuk Parking Monitor Dash Cam / 70mai hardwirekit

Detail 70mai Hardwire kit / 70mai Dashcam Hardwire Kit Untuk Parking Monitor Dash Cam / 70mai hardwirekit

70mai Dashcam Hardwire Kit

UP02 For : A400, M300, A500s, A800s & Dash Cam Pro Lite
UP03 For : M500

Interface : Usb2.0
Voltage : 24V
Product name : 70mai Hardware Kit
Product name 1 : 70mai Cable
Feature : For 24H Parking Monitoring
Function : For 70mai A800 4K Dash Cam
Function 1 : For 70mai Pro
Function 2 : For 70mai Lite 24H Parking Monitoring
Function 3 : For 70mai Wide Cam
Cable Length : About 3M
Low voltage protection for small cars : 11.4V
Low voltage protection for big cars : 22.8V
Output voltage : 5V
Input voltage : DC 12-30V
Working temperature : -20℃~70℃
Storage temperature : -30℃~85℃

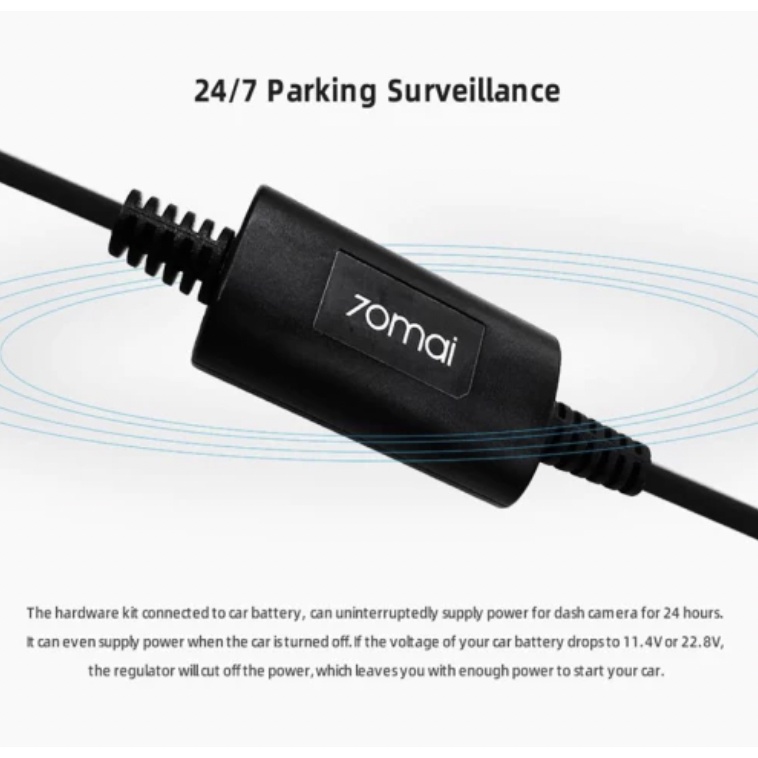

70mai Hardware kit Cable for 24H Parking Monitior in Car

Please connect each sub-line of the parking monitoring line to the fuse box in the following:
1. The power cord (red) is connected to a normal fuse with an input voltage of 12V-30V and an output current of 2.4A in the fuse box;
2. The ACC signal wire (yellow) is connected to the ACC power fuse in the fuse box;
3. The ground wire (black) is connected to the negative pole of the fuse box or the grounding position
