70mai Dashcam Hardwire Kit Parking Monitor Dash Cam 24H

Detail 70mai Dashcam Hardwire Kit Parking Monitor Dash Cam 24H

Video perkenalan produk 70mai Dashcam Hardwire Kit Parking Monitor Dash Cam 24H. Sumber: Shopee.

*****SELALU TAMBAHKAN BUBBLE WRAP******
************KEAMANAN EXTRA*************
**SEARCH DI PRODUK DENGAN NAMA BUBBLE**

Garansi Produk Resmi 12 Bulan

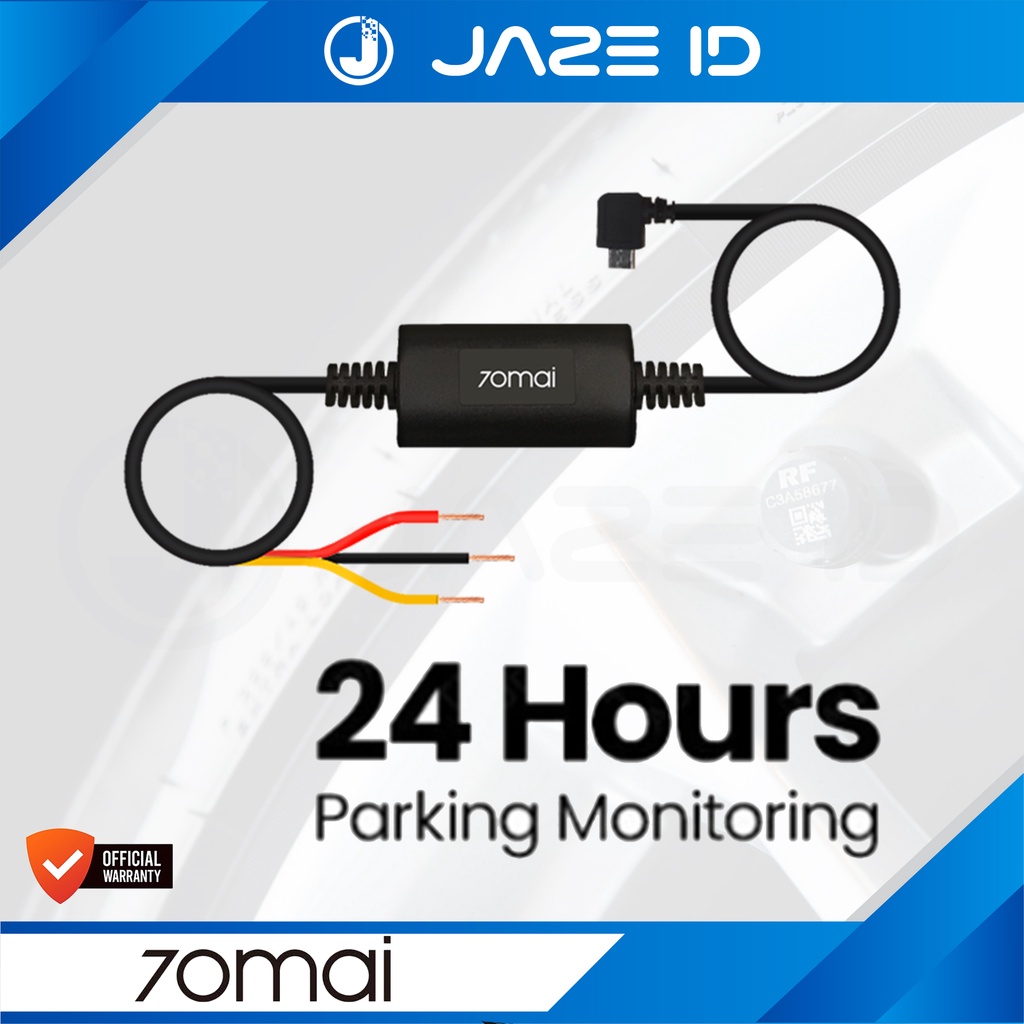

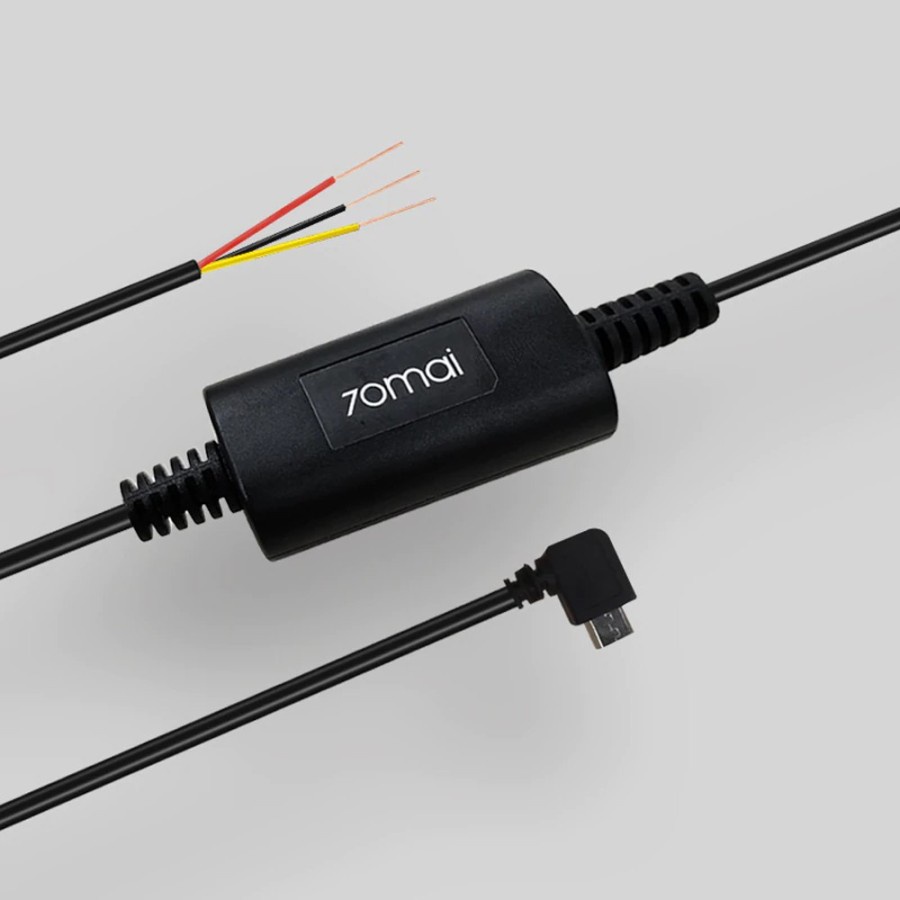

70mai Dashcam UP-02 Hardwire Kit for Parking Monitor

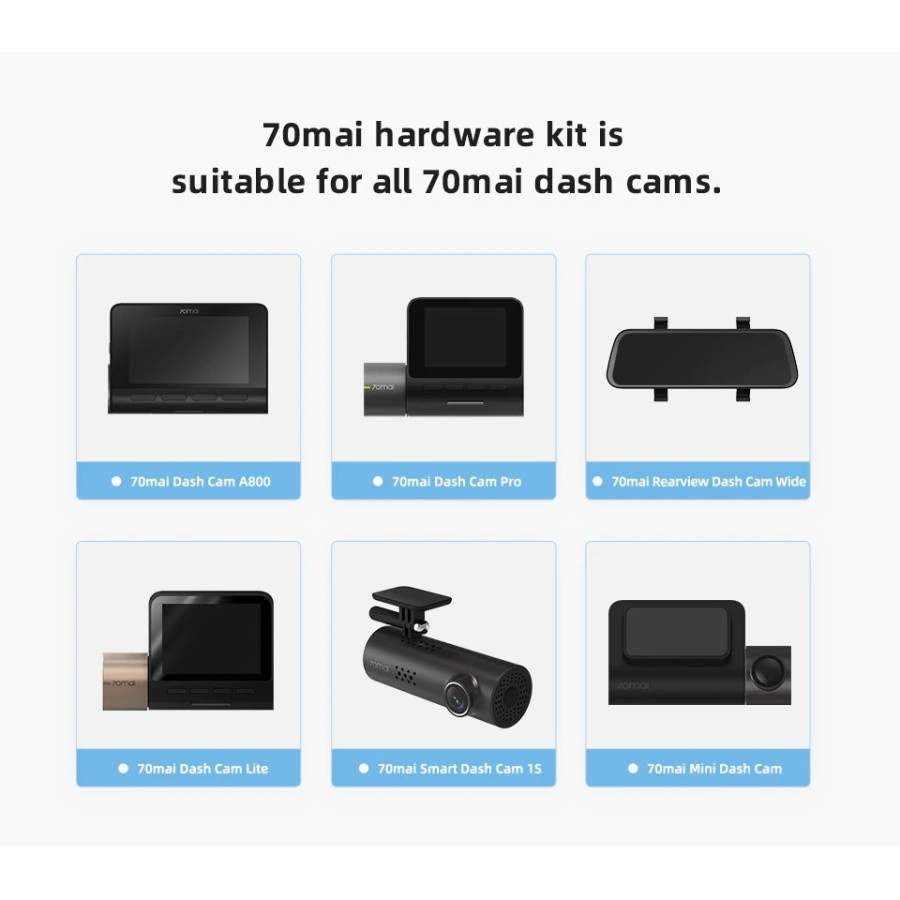

Digunakan untuk : M300 / A400 / A500s / A800s / Lite2 / D08
Fungsi : untuk aktifkan fitur Parking Surveillance


Interface : Usb2.0
Voltage : 24V
Product name : 70mai Hardware Kit
Product name 1 : 70mai Cable
Feature : For 24H Parking Monitoring
Function : For 70mai A800 4K Dash Cam
Function 1 : For 70mai Pro
Function 2 : For 70mai Lite 24H Parking Monitoring
Function 3 : For 70mai Wide Cam
Cable Length : About 3M

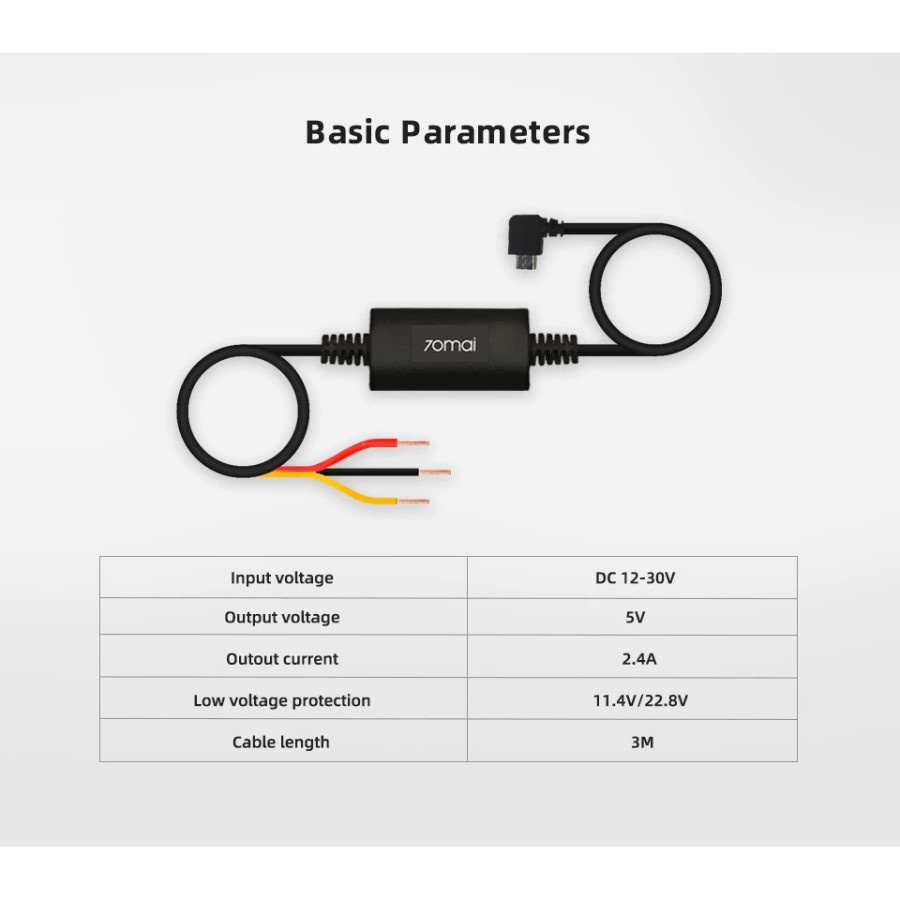

Low voltage protection for small cars : 11.4V
Low voltage protection for big cars : 22.8V
Output voltage : 5V
Input voltage : DC 12-30V
Working temperature : -20℃~70℃
Storage temperature : -30℃~85℃

70mai Hardware kit Cable for 24H Parking Monitior in Car

Please connect each sub-line of the parking monitoring line to the fuse box in the following:
1. The power cord (red) is connected to a normal fuse with an input voltage of 12V-30V and an output current of 2.4A in the fuse box;
2. The ACC signal wire (yellow) is connected to the ACC power fuse in the fuse box;
3. The ground wire (black) is connected to the negative pole of the fuse box or the grounding position
