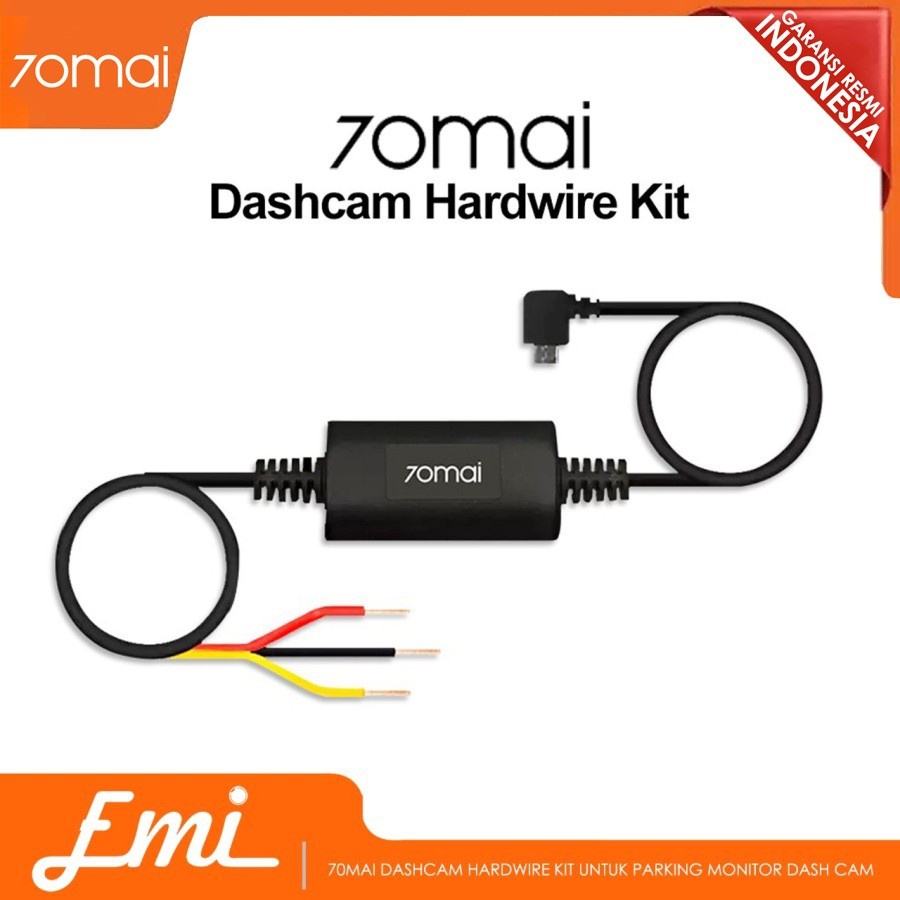

70mai Dashcam Hardwire Kit Untuk Parking Monitor Dash Cam

Detail 70mai Dashcam Hardwire Kit Untuk Parking Monitor Dash Cam

70mai Dashcam Hardwire Kit for Parking Monitor A400 A500s A800s Dash cam pro lite


Interface : Usb2.0
Voltage : 24V
Product name : 70mai Hardware Kit
Product name 1 : 70mai Cable

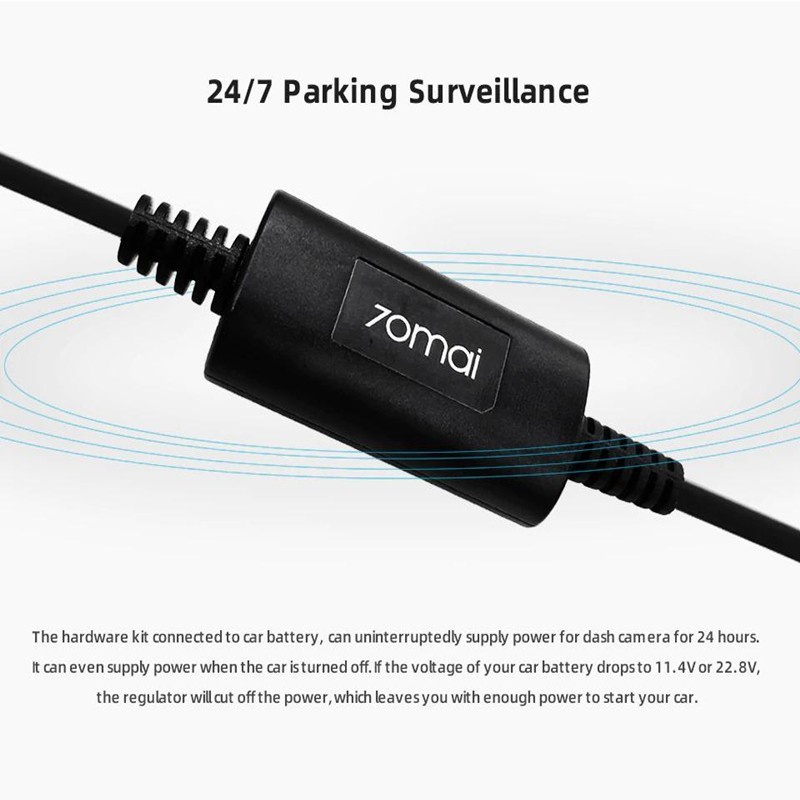

Feature : For 24H Parking Monitoring
Function : For 70mai A800 4K Dash Cam
Function 1 : For 70mai Pro
Function 2 : For 70mai Lite 24H Parking Monitoring
Function 3 : For 70mai Wide Cam

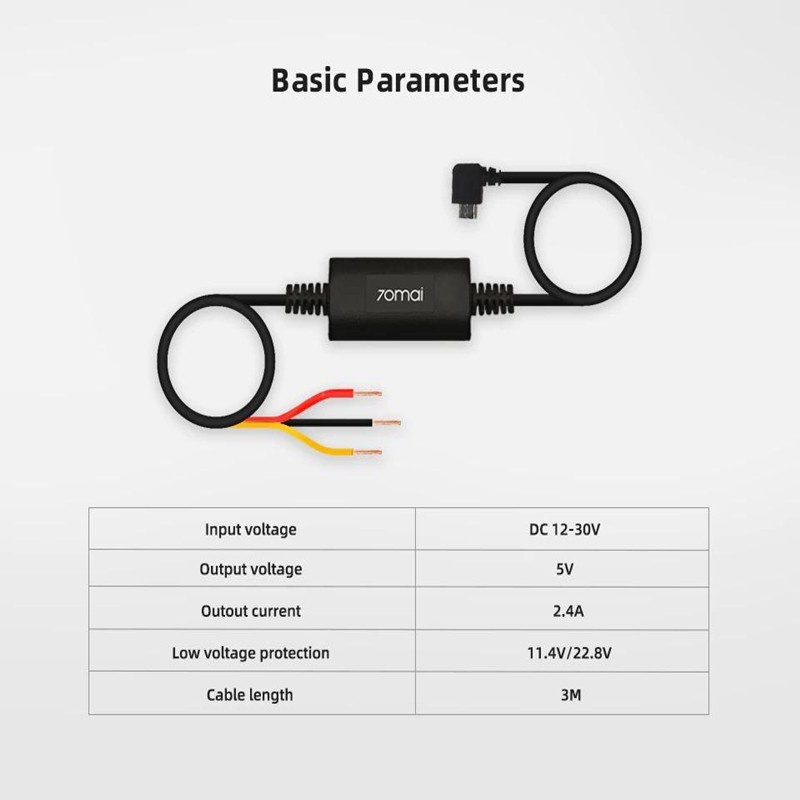

Cable Length : About 3M
Low voltage protection for small cars : 11.4V
Low voltage protection for big cars : 22.8V
Output voltage : 5V
Input voltage : DC 12-30V
Working temperature : -20℃~70℃
Storage temperature : -30℃~85℃

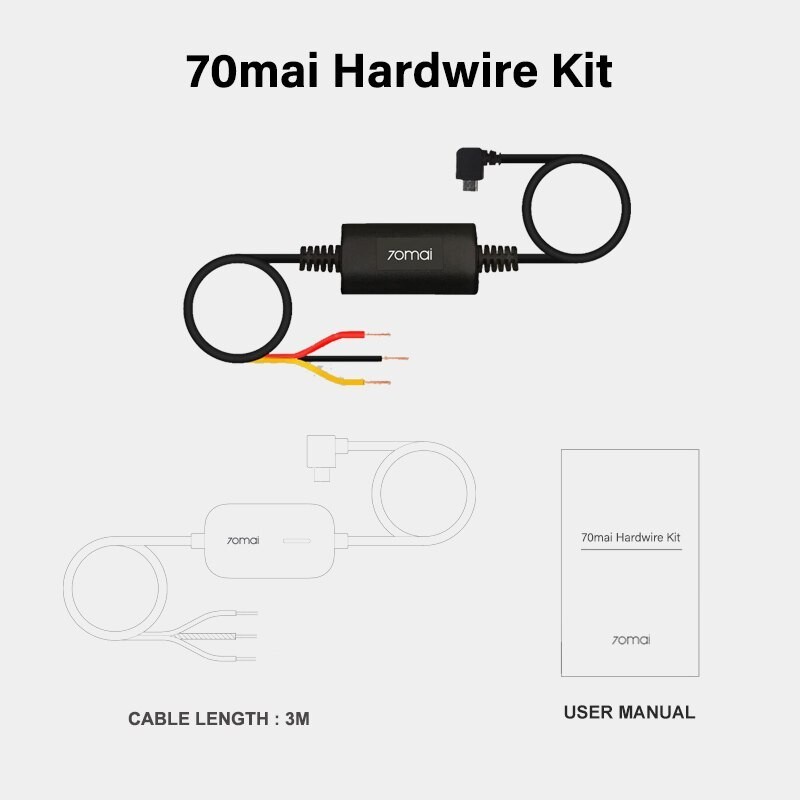

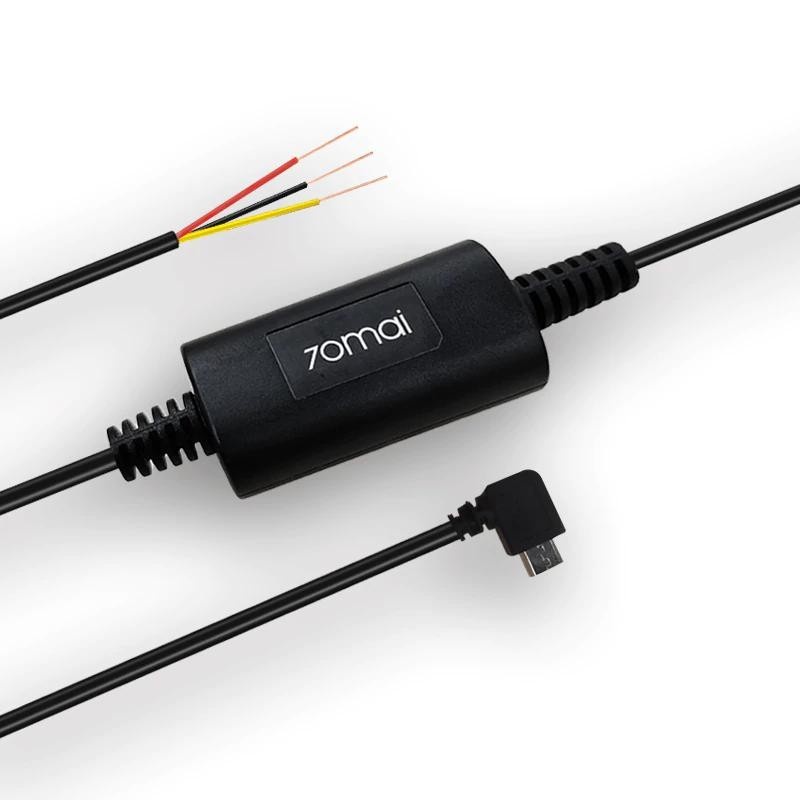

70mai Hardware kit Cable for 24H Parking Monitior in Car

Please connect each sub-line of the parking monitoring line to the fuse box in the following:
1. The power cord (red) is connected to a normal fuse with an input voltage of 12V-30V and an output current of 2.4A in the fuse box;
2. The ACC signal wire (yellow) is connected to the ACC power fuse in the fuse box;
3. The ground wire (black) is connected to the negative pole of the fuse box or the grounding position
