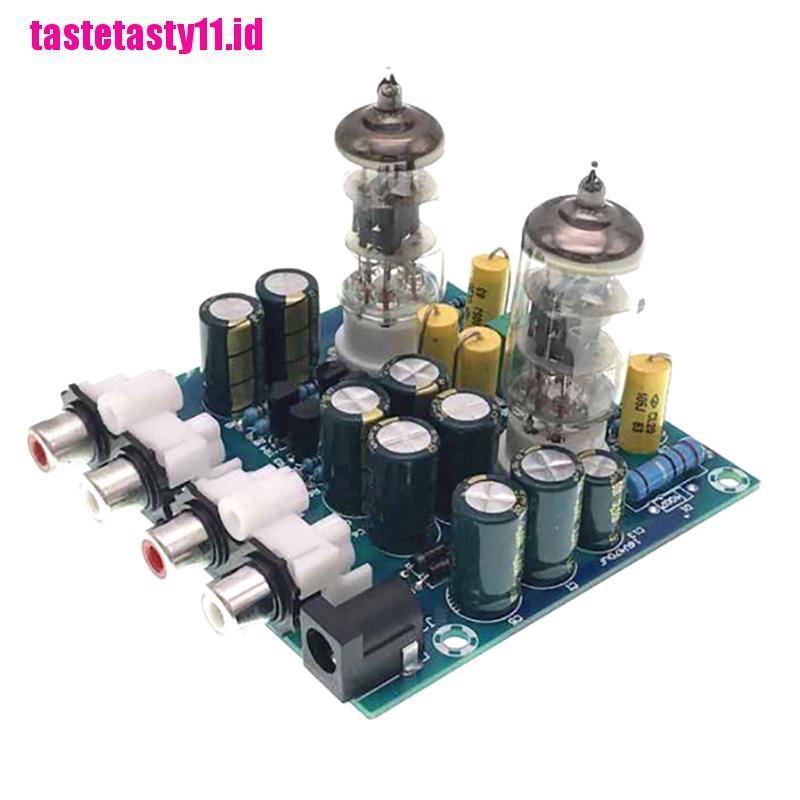

6j1 Tabung Fever Preamp Amplifier Board Buffer DIY

Detail 6j1 Tabung Fever Preamp Amplifier Board Buffer DIY

Description:

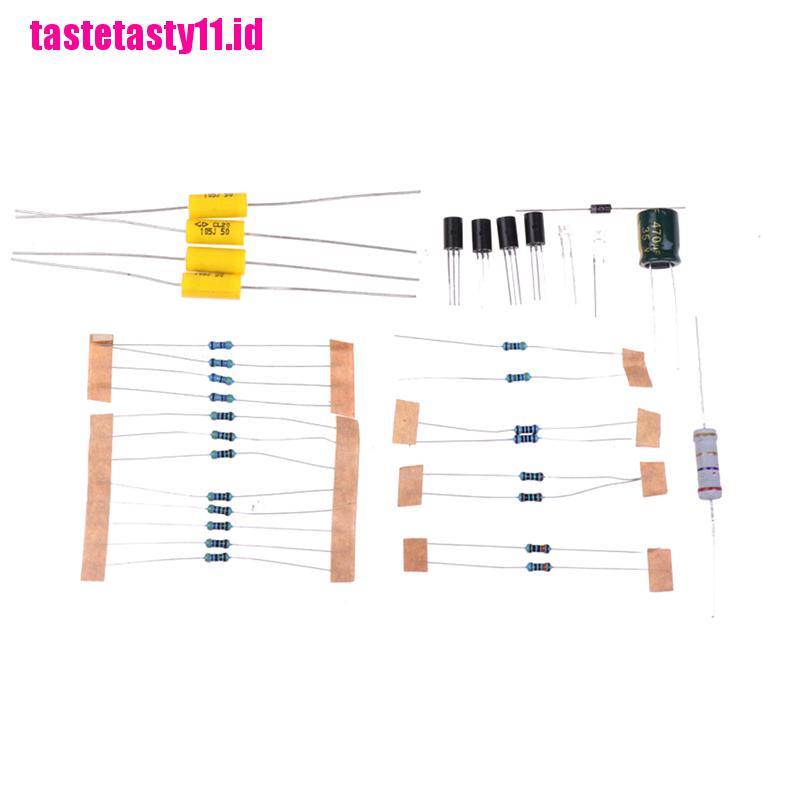

DIY Kit,Need buyer to weld

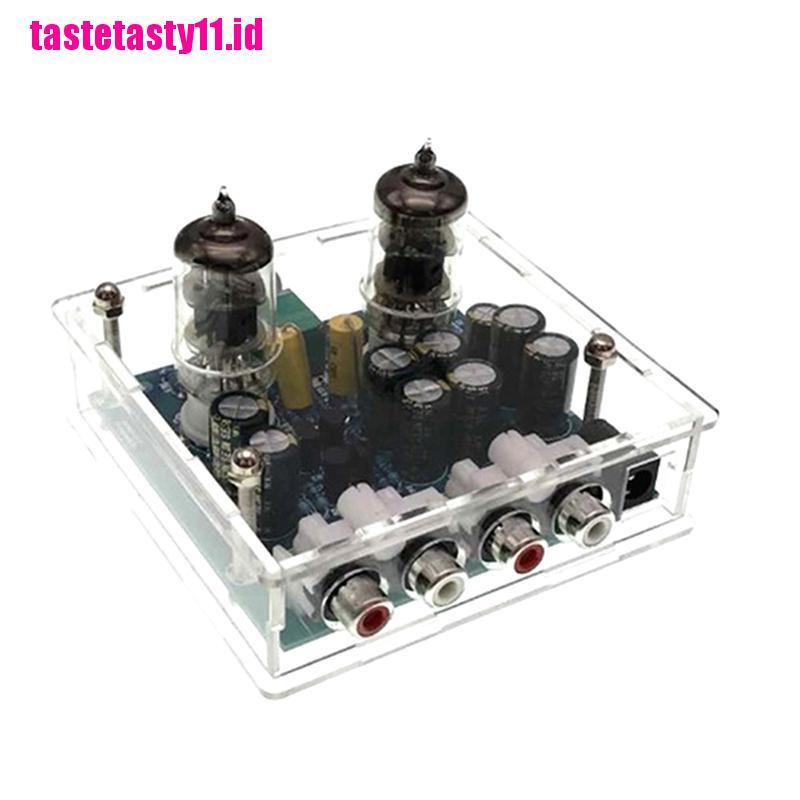

1. SIZE: 77 MM * 75 MM * 52 MM
2. Power input: AC 12 V 1 A  5.5 * 2.5 PLUG
3. Channel: 2.0 / Stereo
4. Potentiometer Function: Volume + Power Switch setting


Specification:

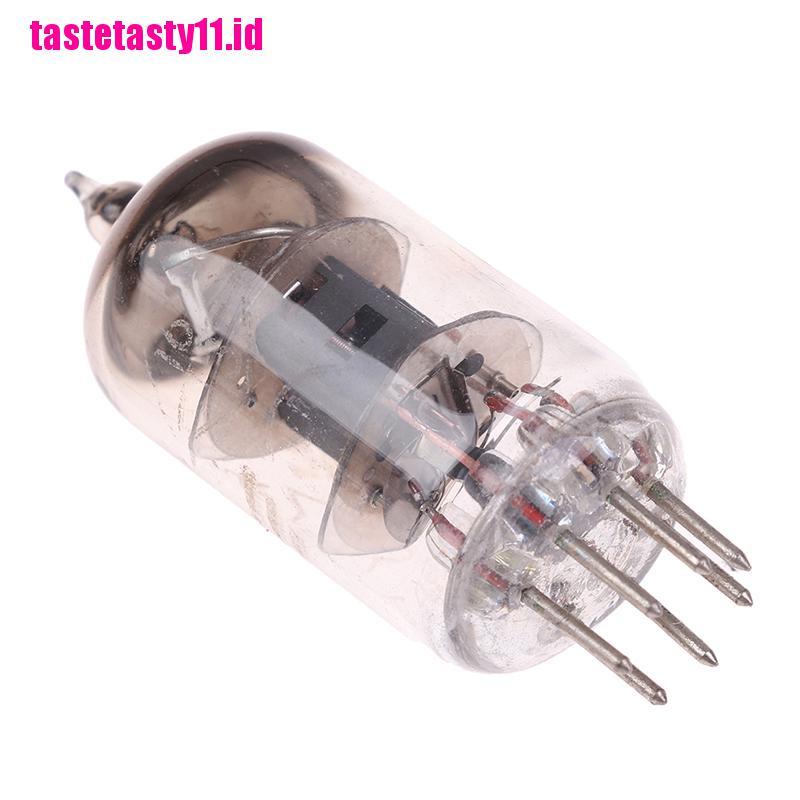

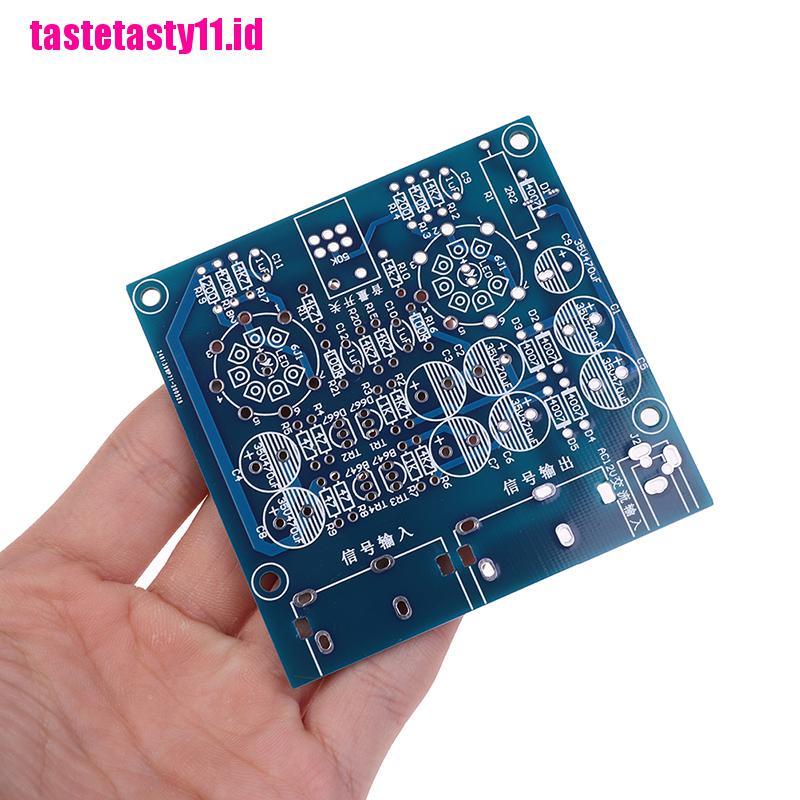

FE-6J1-2 tube fever plate pre-amp is the circuit schematic imitation design team Music fax X-10D, to be rational optimization, more stable performance than the original machine, 10% tube set increase. This board uses a single 12 V AC input battery, the processing circuit provides 6J1 tube required positive and negative voltage and voltage supply filament voltage.
Energy works: an open tube feeding the filament heating is started, when the impulse from zero-tension start to increase the hot filament tube, etc., also happens to boost boost finish, so this is the same with the 8 * 470 UF capacitor very clean filter, good power supply system will not have a buzzing, the filament is 12 V DC power supply, needs two tube is connected in series with a DC filament filament too in order Reduce noise.
Package included: 1Set
