65 UNI-T UT681HDMI - Alat Scan dan Tes Kabel HDMI dan Mini HDMI

Detail 65 UNI-T UT681HDMI - Alat Scan dan Tes Kabel HDMI dan Mini HDMI

UNI-T UT681HDMI adalah sebuah alat pengukur atau Multimeter Digital yang dapat mengukur kabel HDMI dan Mini HDMI secara cepat, untuk mengetahui apakah kabel tersebut Conducting, Short-Circuit, Crossed atau Open-Circuit

Didesain untuk mengukur secara presisi, stabil, dan pastinya portabel.

Sangat cocok bagi para teknisi untuk memasang, memelihara atau mengecek kabel HDMI dan Mini HDMI secara berkala.

Specification
Brand: UNI-T
Product Name: Cable Tester
Product Model: UT681HDMI
Supported Connector: HDMI (Type A), HDMI Mini (Type C)
Scan Test Mode: 20 LED (LED1~LED19, LED_S) Scan test
All Significant Test Mode: 20 LED (LED1~LED19, LED_S) All The Light
Continuity Test: YES
Short Circuit Test: YES
Crossover Test: YES
Low Voltage Test: YES (less than about 7.2V)
Network Cable Test: Sheilding/Un-Sheilding
Auto Power-Off: After 10 minutes without operation
Power Supply: 9V Battery

Main Features:
- LED status display
- Auto check of open/short/crossover circuit
- Single key operation
- Manual/auto power off (after 10-minutes inactivity)
- Low battery indication
- Power supplied by 9V battery

Isi dalam kemasan
1x UNI-T UT681HDMI
1x 6F22 9V Battery
1x User Manual

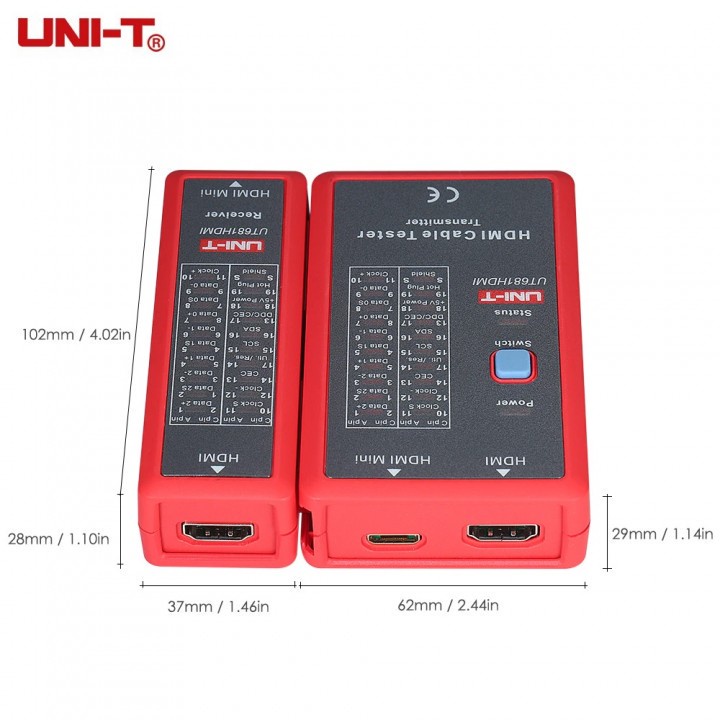

Dimensi produk:
- Transmitter: 10.2 x 6.2 x 2.8 cm (87 gr)
- Receiver: 10.2 x 3.7 x 2.8 cm (51 gr)

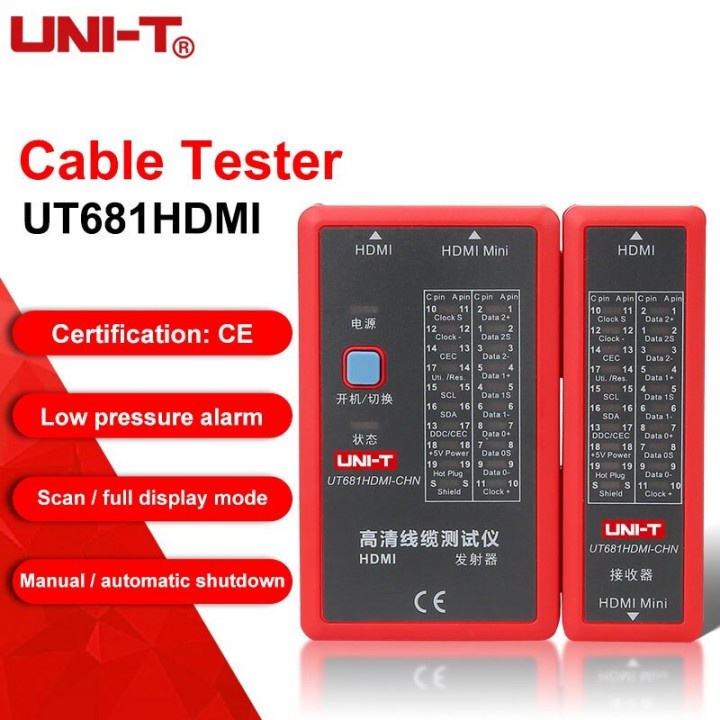

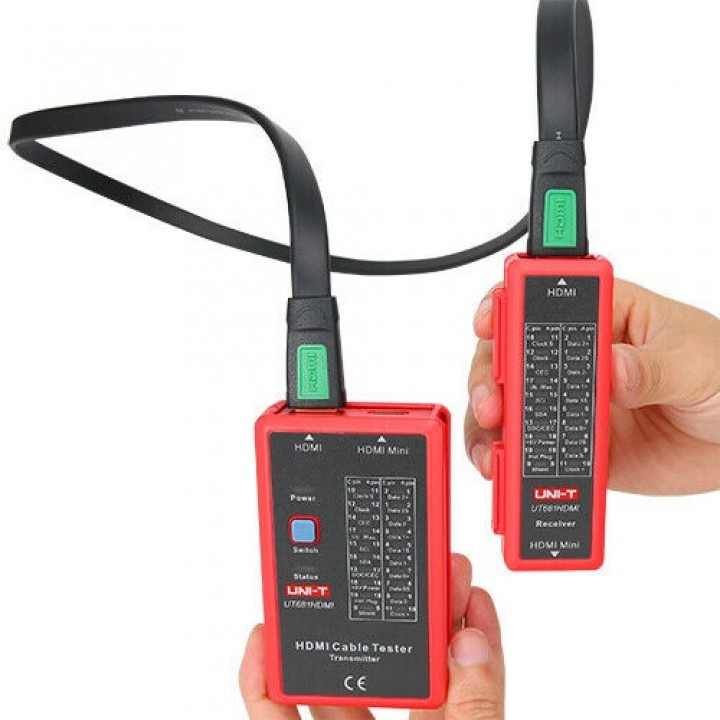

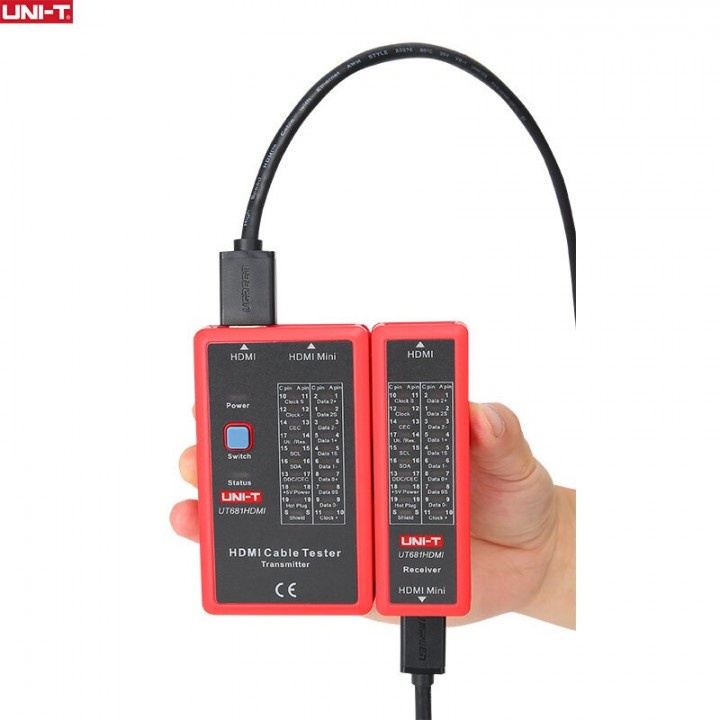

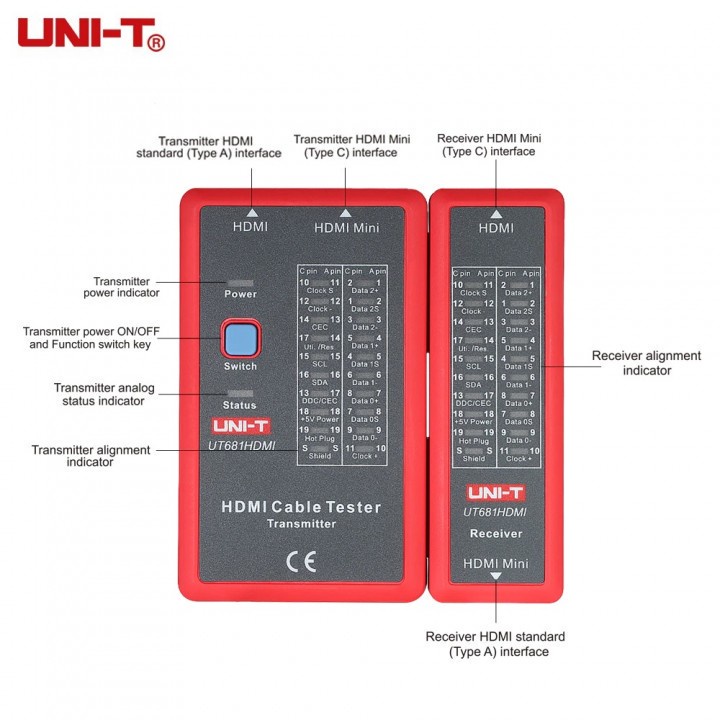

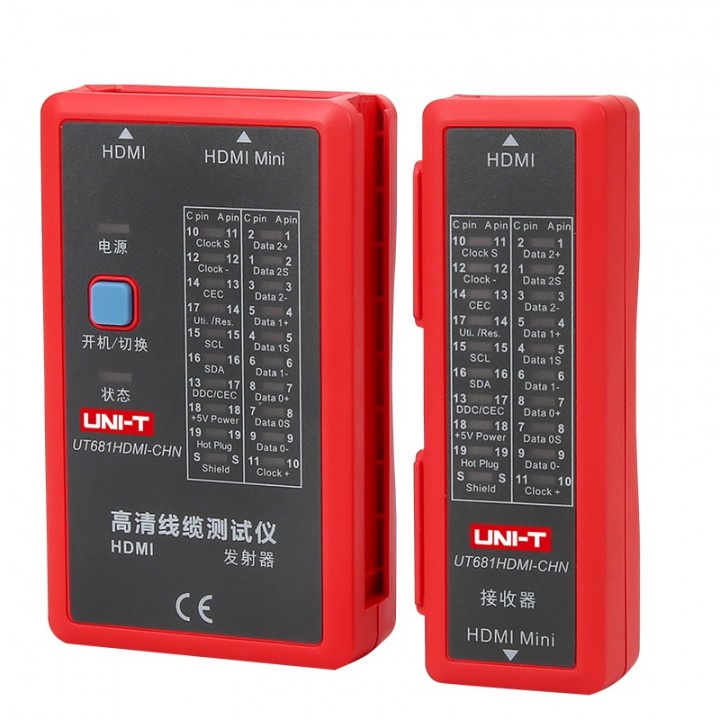

Gambar produk
