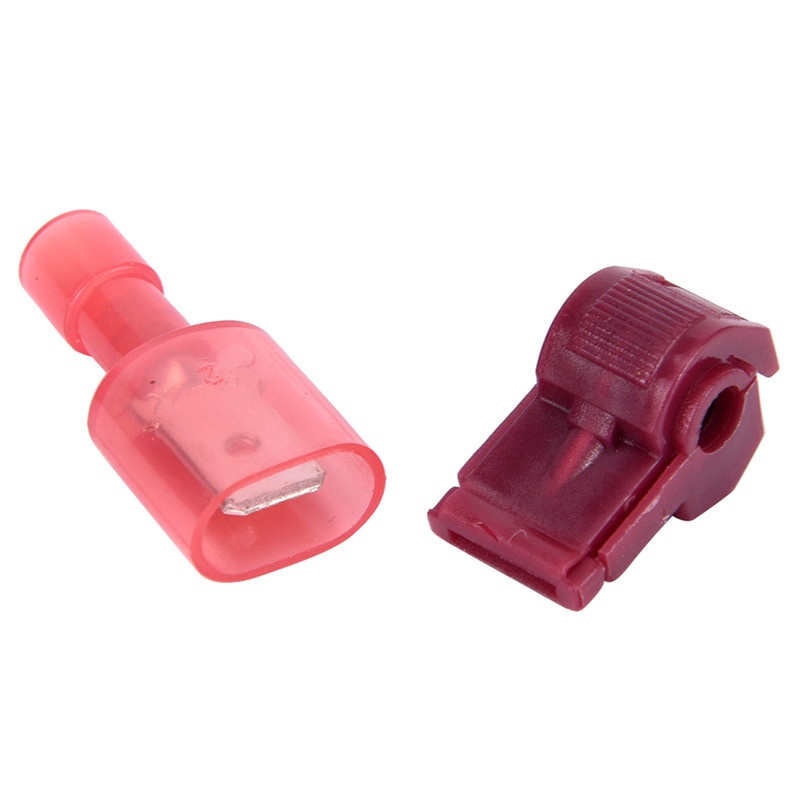

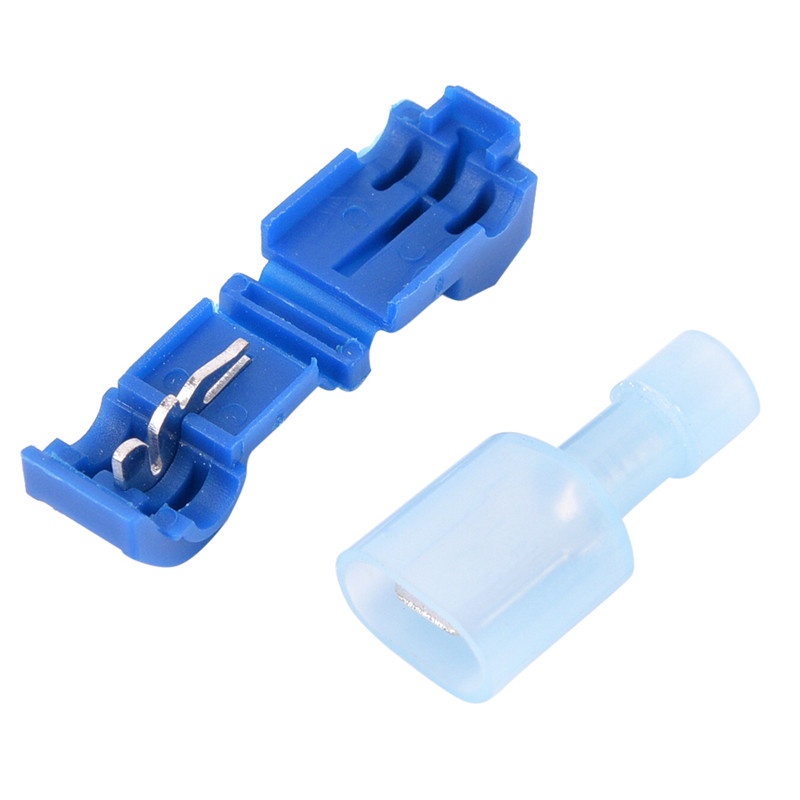

Detail 60pcs Konektor Terminal Kabel Insulated Cepat Bentuk T Male Female
Features:
100% Brand New and High Quality
Insulated Wire Quick Splice Terminal
Widely used in the wire connection
Prevents the wire from shorting out
Quick Splice Wire Connector
Great for tapping into wires to test.
Use with the male quick disconnect for easy safe splicing into wires.
Suitable For the Wire:
22-18AWG(Red Connectors), 16-14AWG(Blue Connectors), 12-10AWG(Yellow Connecotrs)
The Area of Cross Section:
0.5-1.5mm2(Red Connectors), 2.5-4.0mm2(Blue Connectors), 4.0-6.0mm2(Yellow Connectors)
Specifications:
Color: Red(10pairs), Blue(10pairs), Yellow(10pairs)
Quality:60pcs
Male Spade Connector Length: 25mm
Quick Splice Wire Connector Length: 37mm
Diameter: 3.5mm(Red), 4.5mm(Blue), 7mm(Yellow)
Terminals Spade Width: 6.3mm
Terminals Width: 11mm

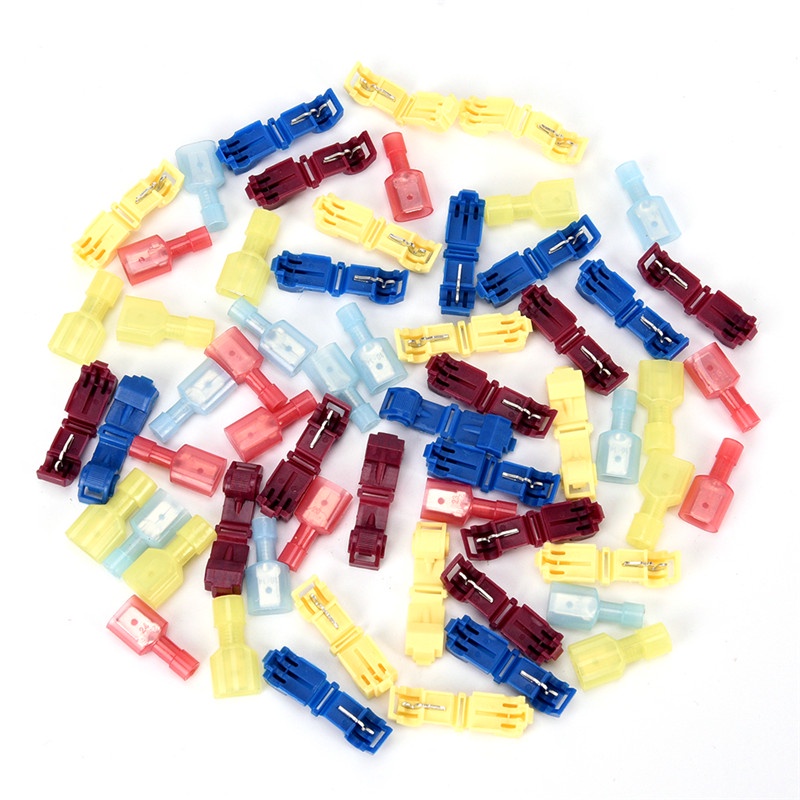

Package Included: 60Pcs(30 pairs) Wire Connector Terminals & Male Spade Connectors
Note: 1.Please allow 0.1-0.3cm differences due to manual measurement, thanks.
2.Please understand because of the light irradiation or computer display difference, so I can't guarantee photos and real color is 100% the same.
