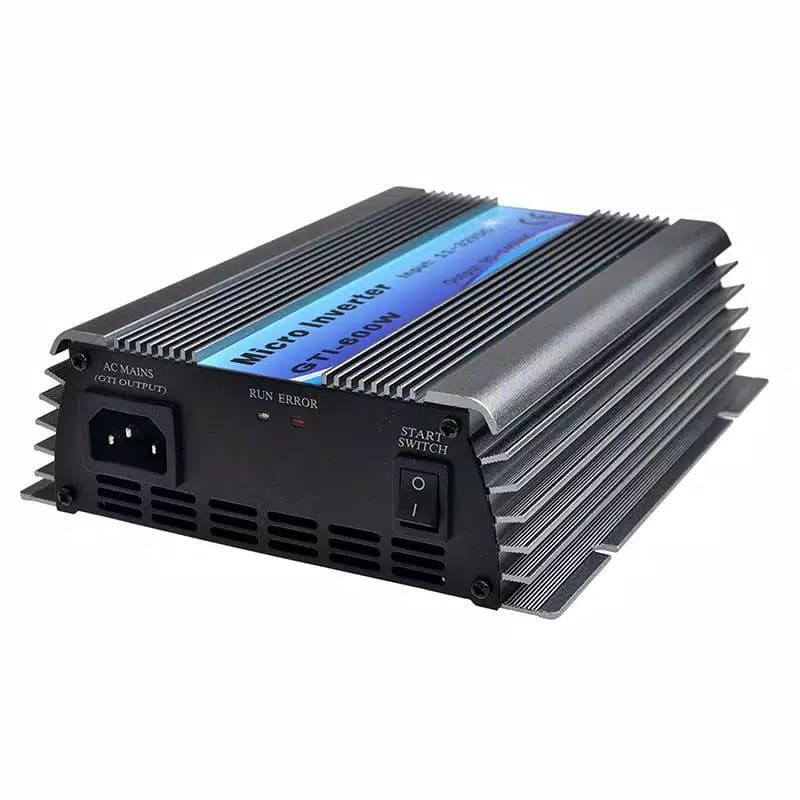

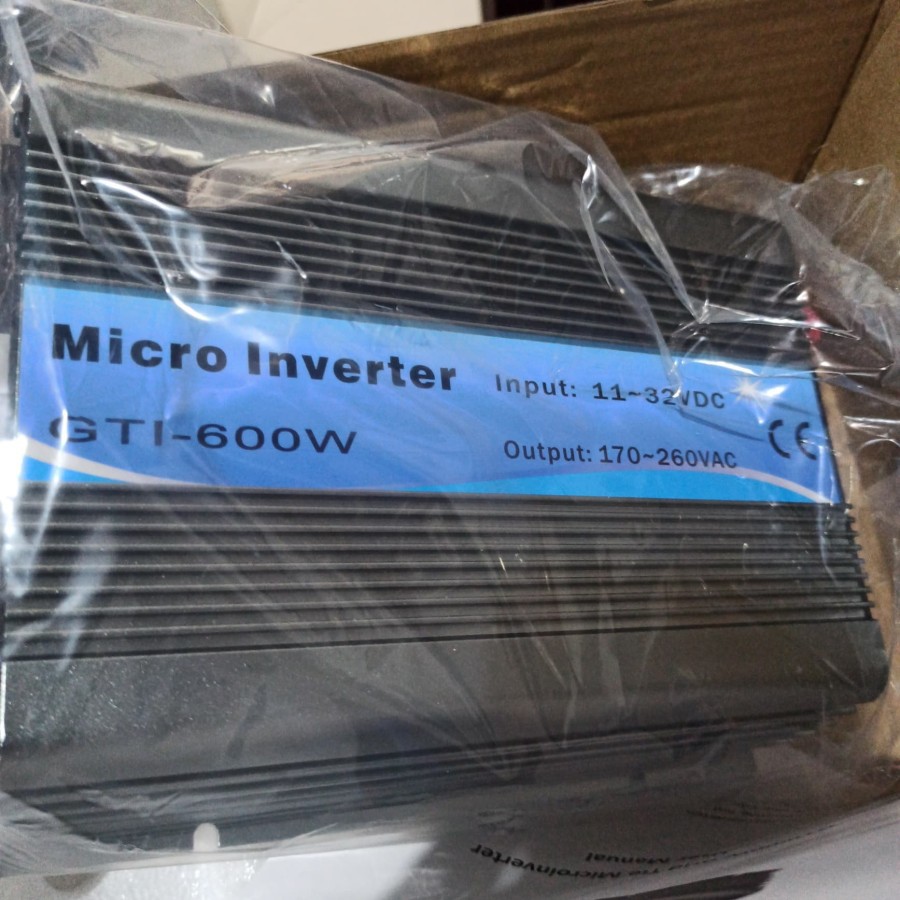

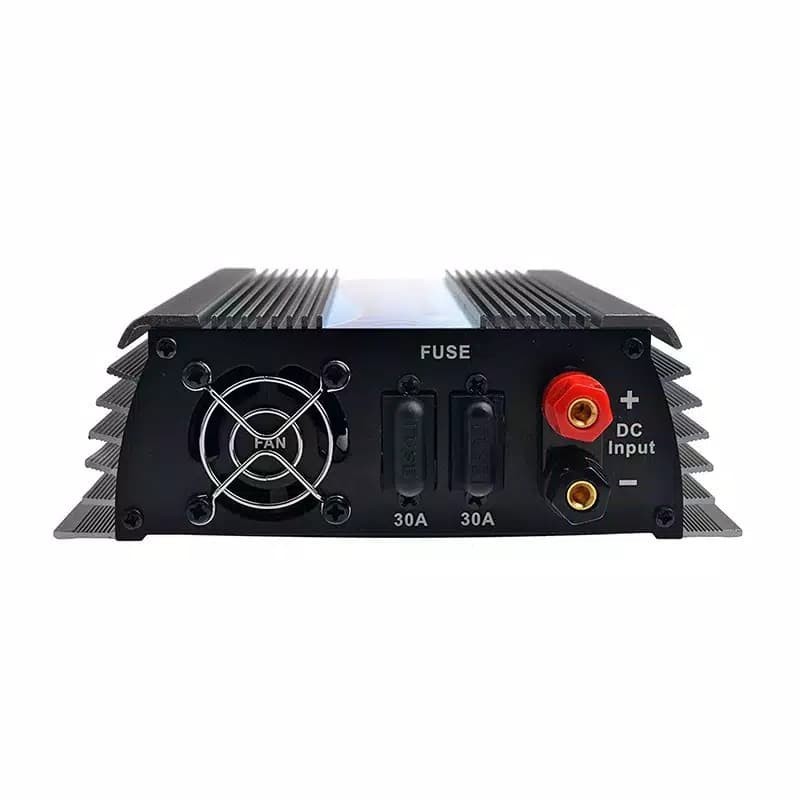

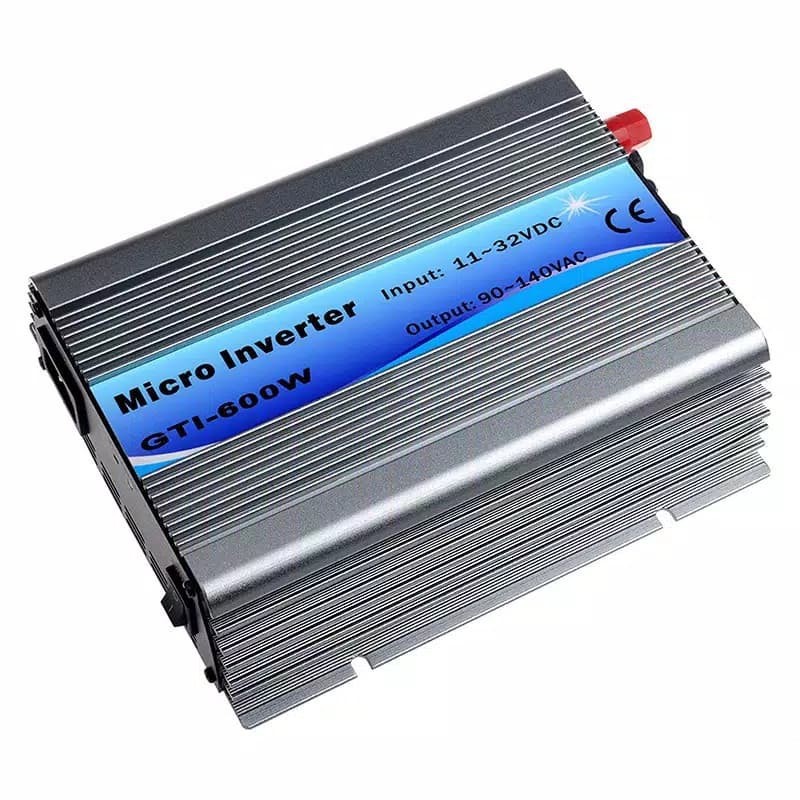

600W Solar On Grid Tie Inverter pure sine wave 600 watt

Detail 600W Solar On Grid Tie Inverter pure sine wave 600 watt

600W Solar Grid Tie Inverter Pure Sine Wave Inverter DC11V-32V to AC190V-260V

Input solar panel harus sudah terpasang sebelum menyalakan inverter.
Pemasangan jgn terbalik plus (merah) dan minus (hitam) input solar panel.
Terbalik berakibat konslet.
Matikan inverter dan cabut kontak listrik sebelum melepaskan kabel solar panel.
Sekali lagi salah urutan berakibat konslet.
Baca buka manual sebelum digunakan!

Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid. The AC output from Smart Micro inverter is synchronized and in phase with the utility grid.

Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system. The output need to be connected to the grid power. Can not supply power directly to the AC loads.

Features you might like:

600W Grid Tie Inverter - MPPT Range 15-22V
Grid Tie Solar Inverter - Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency
Solar Grid Tie Inverter - Fit For 12V Solar Panel 21V(Voc) 18V (Vmp)
Solar Inverter - Max Power Point Tracking and Stackable,Island Protection
Micro Inverter - Over Temperature Protection,Intelligent cooling fan management

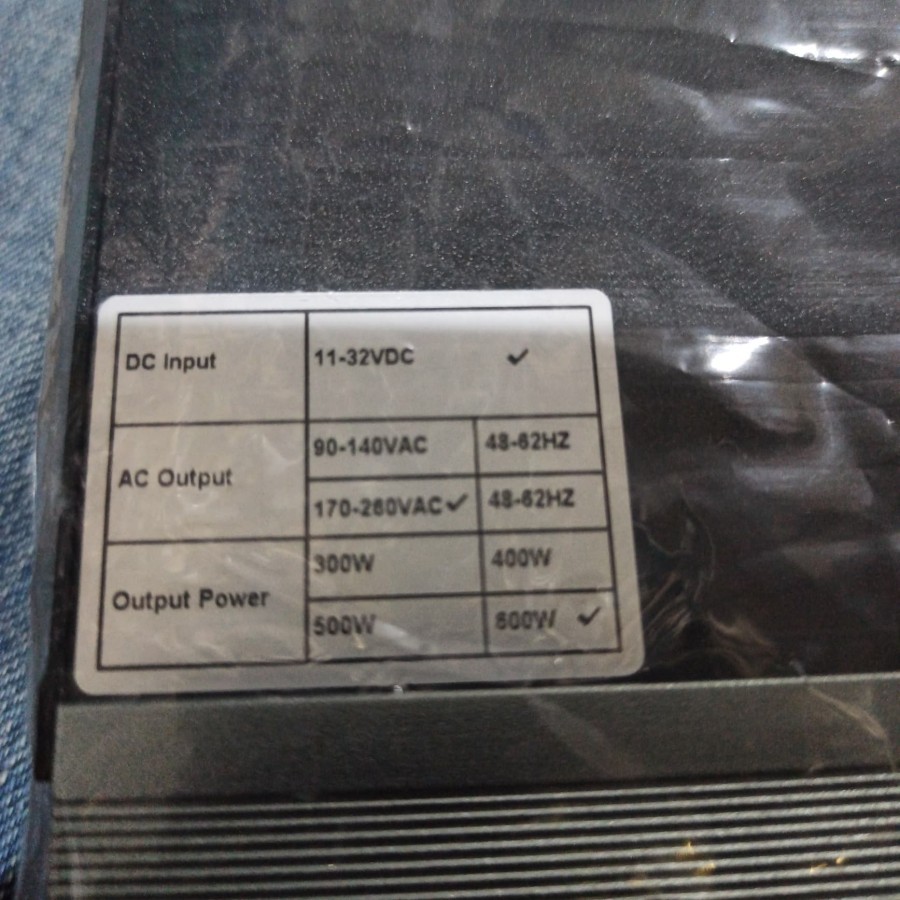

Specifications:

Output Power:600W/230V
AC Output Voltage: 190V-260V
Frequency Range: 48Hz ~ 62Hz Auto
DC Input: 11V-32V
MPPT range: 15V - 22V.

It will perfect compatible with 12V solar panels
Please note if using 12v battery as input source, output power will not be 100% if voltage less than 15V.

Package Contains:

1x600W Grid Tie Inverter
1xAC Power Cable

Gambar produk
