Detail 5V Current Sensor Electronic Brick Analog Electricity Meter fr Arduino

Description:
Features:

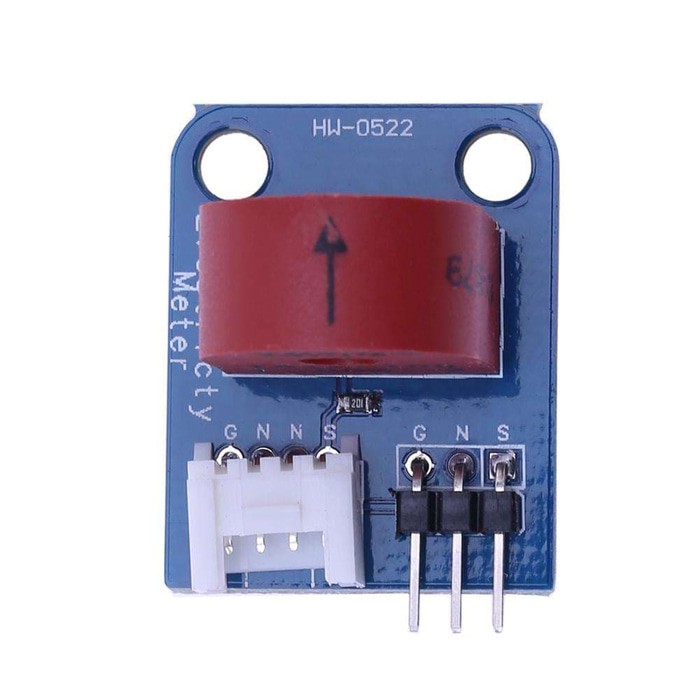

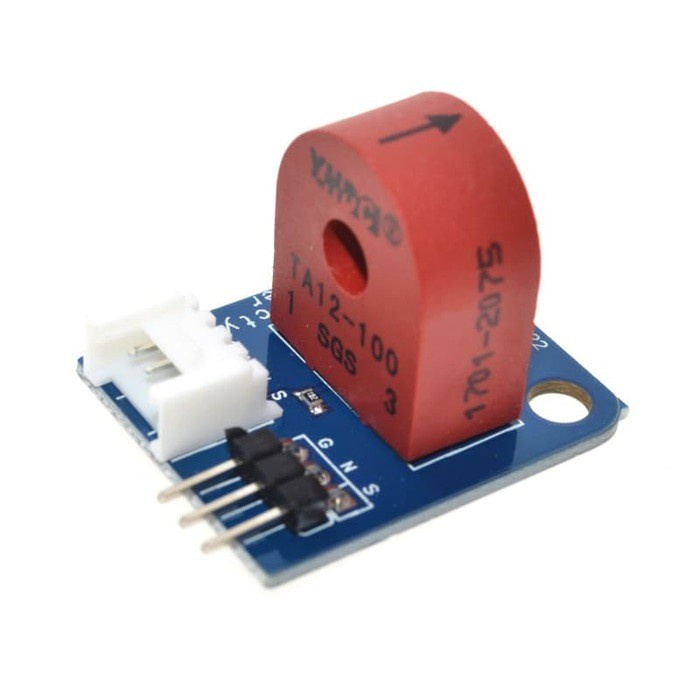

This electricity sensor is based on TA12-100 current transformer, which can transform AC signals of large current into small amplitude signals. The maximum current that can be detected can reach 5A, and the present current signal can be read via analog I / O port.

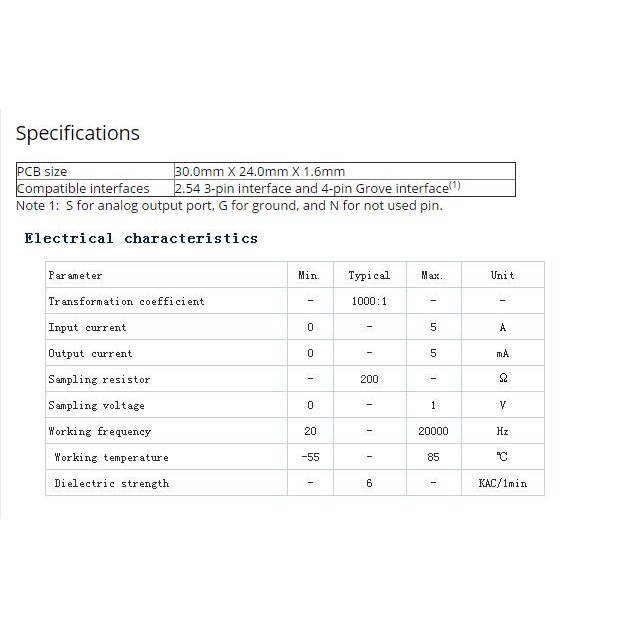

Specification:
Type: Sensor Brick
Port: 3pin
Power Supply: 5V
Board Size: approx. 30 X 24 X 1.6 mm/1.18 X 0.94 X 0.06 in
Weight: approx. 25 g
Included:
1 X Analog Current Meter Sensor Module Board
