5V 700mA 3.5W Switch Power Supply Module AC DC Adaptor Buck Converter

Detail 5V 700mA 3.5W Switch Power Supply Module AC DC Adaptor Buck Converter

Switch Power Supply Modul AC DC Step Down Buck Converter 5V 700mA 3.5W

Modul switching power supply ini dari AC to DC jadi tegangan rumah AC220V bisa langsung ke arduino atau untuk supply apapun yang supplynya 5v

Modul ini mempunyai protection yang luar biasa jadi di jamin tahan banting gan heheh, Yuk di order sebelum kehabisan :)

Spesifikasi:
====================
- Condition: brand new
- Quantity: 1pc
- Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v
- Imput current: 0.0273A(AC110V) 0.014A(AC220V)
- Input Inrush Current: 20A
- Output voltage: DC 5V (+ / - 0.2 V)
- Output current 700 mA
- Power 3.5 W
- Operating temperature -20~60 degree
- Relative humidity 40-90%RH
- Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV
- Output power:0-4W(DC current)
- Output efficiency: 80%
- Switch machine overshoot: MAX 10%
- Output voltage rise time: MAX 100MS
- Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery
- Output over power protection:YES ,recovery:Lock, restart after recovery
- Short-circuit protection: YES, automatic recovery after problem solved
- Temperature protection: YES,recovery:Lock, restart after recovery
- Overcurrent protection: YES,recovery:Lock, restart after recovery

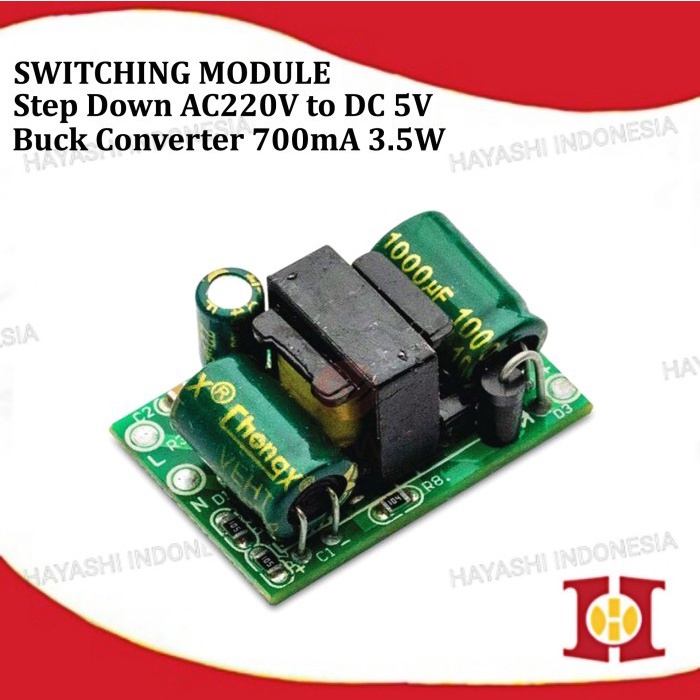

Gambar produk
