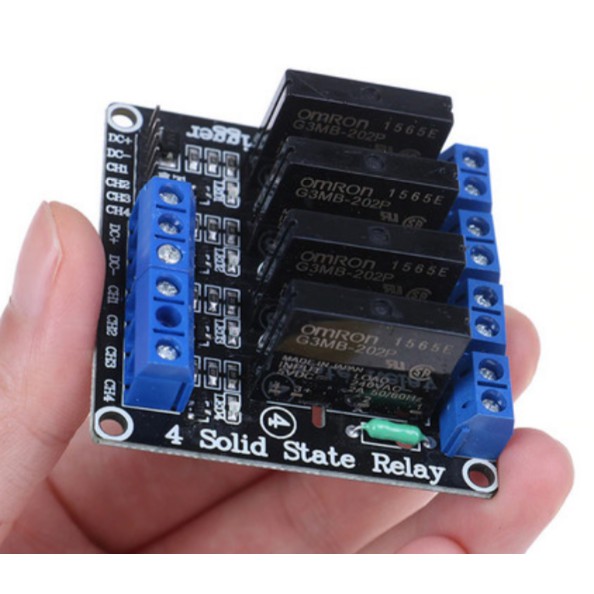

Detail 5v 4 channel level solid state relay SSR module high quality 5 volt High level / low level

5V Omron solid state relays 240V 2A, output with resistive fuse 240V 2A.
Input power supply: 5V DC (160MA)
Input control signal voltage:
(0-2.5V low state relay OFF)
(3.3-5V state high relay ON)
Blue KF301 terminal connection control line is more convenient.

Module interface:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: Relay Module signal triggering end (high level /Low level trigger effective)

Note: Power must be DC voltage and need to be consistent with the voltage relay
