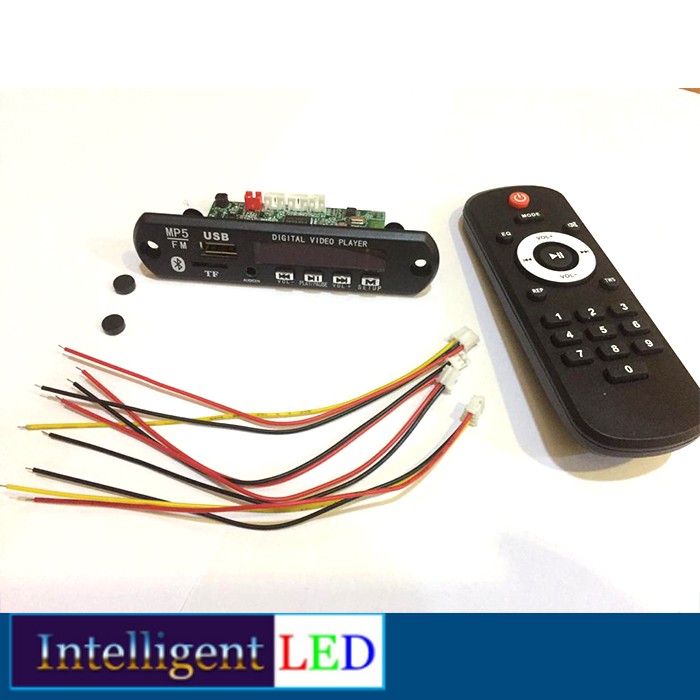

5V 12V JQ-MP5-008 MP5 Bluetooth5.0 Decoding Board TF MP3 USB FM DC

Detail 5V 12V JQ-MP5-008 MP5 Bluetooth5.0 Decoding Board TF MP3 USB FM DC

Specification

Model: jq-mp5-008
USB interface: connect USB flash disk (up to 32GB)
Led: digital screen display, red display
Infrared receiving module
TF interface: connect TF memory card (up to 32GB)
Aux interface: audio input interface
Vol -: short press to select the previous song; long press to decrease the volume
Play / pause: short press is the switch between pause and play; long press is FM automatic radio station
Vol +: short press to select the next song; long press to increase the volume
MODE:USB / Switching of TF / FM / Aux / Bluetooth voice

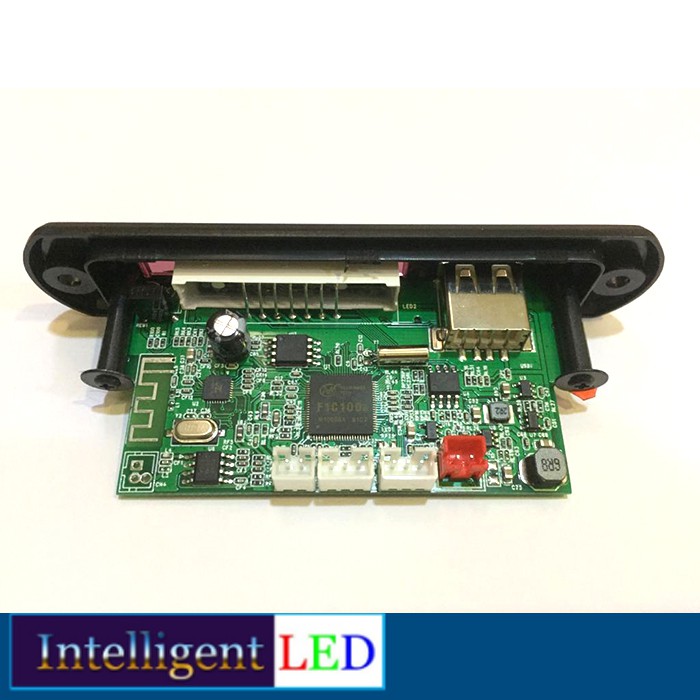

Video master IC: Quanzhi c100s,
Decoding main press IC: ac6926
Bluetooth IC: ac6926 Bluetooth version is 5.0
Video format: RM, RMVB, DVD, SVCD, VCD, DVCD, dvix, MPEG4, avi, VOB, etc;
Playing audio format: MP3, wma, HDCD; Ogg, FLAC, ACC, ape
Support image formats: JPEG, BMP, Kodak picture, CDG;
Video output support: CVBS
Audio output support: stereo (R / L)

Power supply selection: Voltage 5V or 12V (optional), minimum current 2A (for smooth operation of the product, please select professional matching power supply);

Support HD video resolution (1280 * 720; 1920 * 1080)
Support e-book function to browse TXT text easily
Multiple dubbing languages (English, French, Portuguese, German, Danish, etc.)
FM frequency: 87.5-107.5 MHz
Support function introduction: support mp3 / USB / TF / line in / FM / Bluetooth / remote control / DC 5V or 12V (optional)

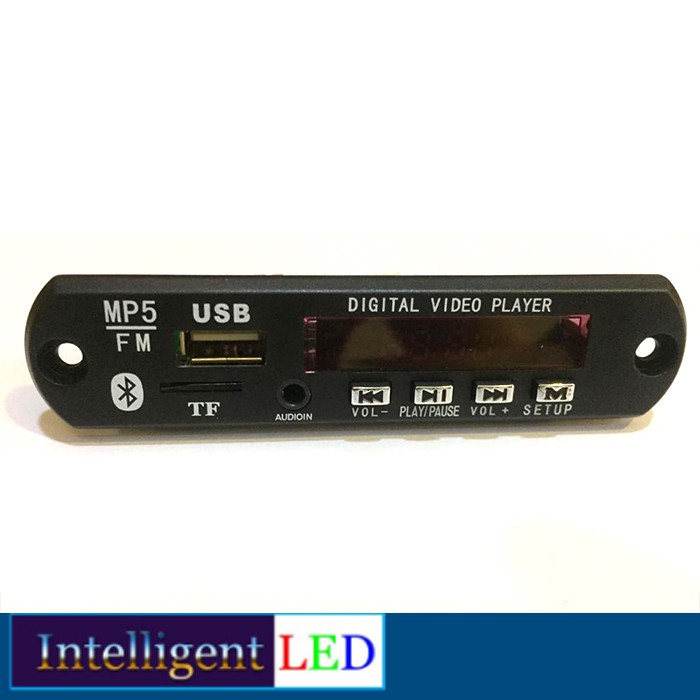

About structure: panel size: 107 * 25 mm, two corners of the panel and screw hole position, and then the cover cover surface, the plate depth is 40 mm
