5pcs Modul Pelindung Cat6 Cat6A Keystone Jack Rj45 Ke Lsa Ftp Bahan Zinc Alloy

Detail 5pcs Modul Pelindung Cat6 Cat6A Keystone Jack Rj45 Ke Lsa Ftp Bahan Zinc Alloy

#5 #Pcs #Cat6 #Cat6A #Keystone #Jack #RJ45 #to #LSA #FTP #Zinc #Alloy #Module #Shielded

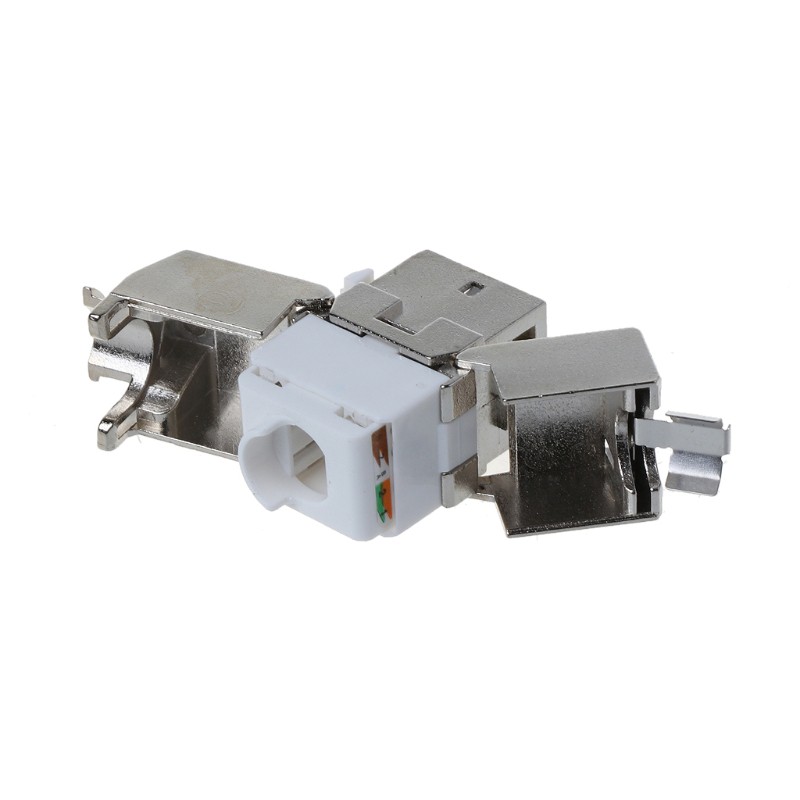

5 Pcs Cat6 Cat6A Keystone Jack RJ45 to LSA FTP Zinc Alloy Module Shielded
Features: Cat6/Cat6A Zinc Alloy Gold-Plated keystone jack module is characterised by its anti rust zinc alloy shield case and its pure copper shielded protection structure with stable and anti-interference features.
Supports network transmission up to 1G 250MHz, perfect for your Gigabt network.

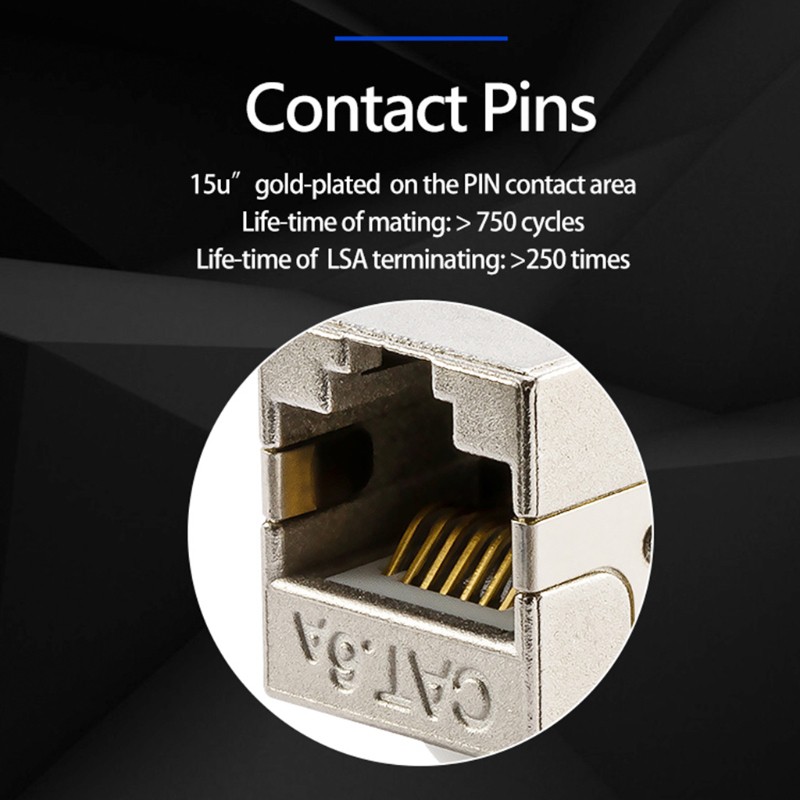

50μ Gold-plated on the contacts (Phosphor Bronze material) area, mating cycles > 750 times keystone jack, full shielded, RJ45 to LSA tool free connection.
Easy installation, and with adjustable cable clips to make sure any size of cables can be suitable.
With transparent insulation pieces inside the houing to avoid "short circuit" problem between the wires ends and the metal housing

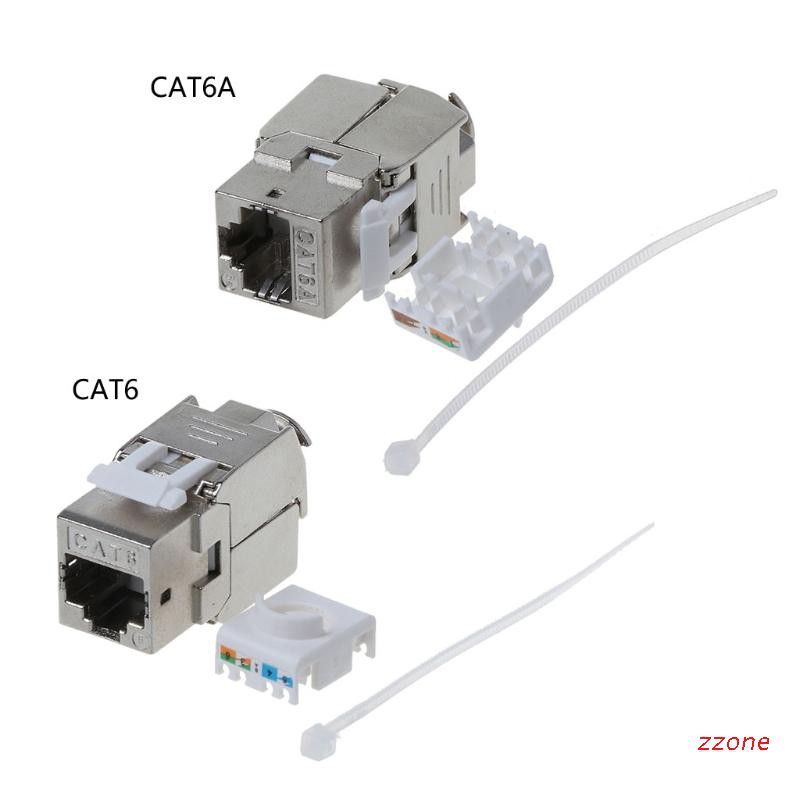

Specification: Module:Cat6，Cat6A
Color: Silver
Material:Phosphor Bronze Wire Clip With Strong Column，Zinc Alloy Gold-Plated
Brand:Aucas
Product:Cat6/Cae6A FTP Zinc Alloy Module
Port:RJ45
Nickle Pin:50U Gold-Plated
Plug:>750 Times
Connect:>250 Times

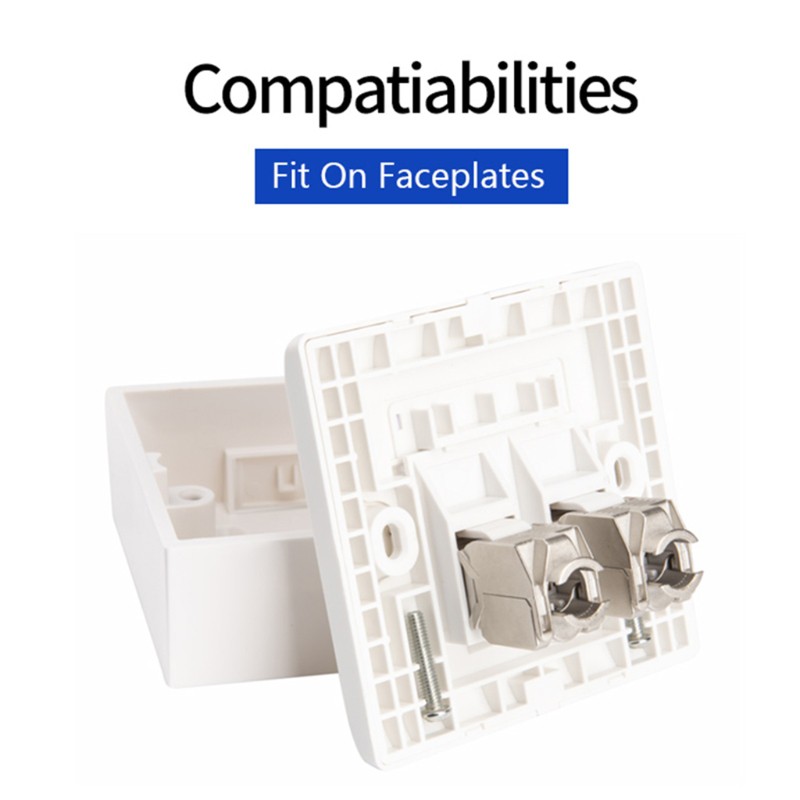

Port:Support Standard 86 Type Face Plate
Test:100% Fluke Test Approved

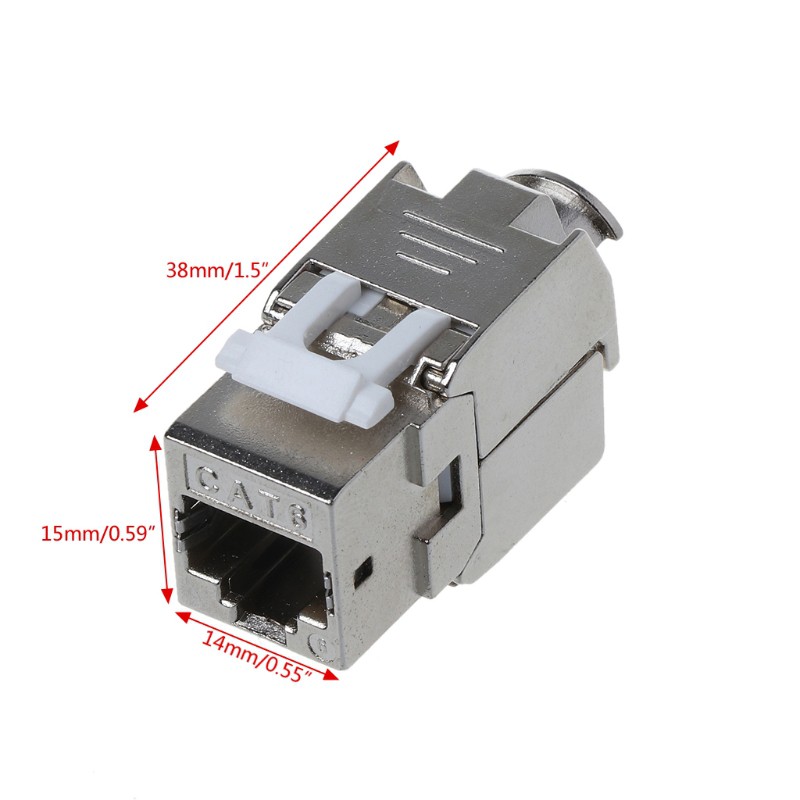

Size :Length :35mm（1.38in）
Width :15mm（0.59in）
Heigth :14mm（0.55in）
Quantity: 5PCs

Quick Installation Guide
1.Put the network cable into the back cover of the module
2.strip the cable about 40mm naked
3.place the 8 wires to be correct position according to 5688 color code on the cap
4.Cut off the wires end flat with cap

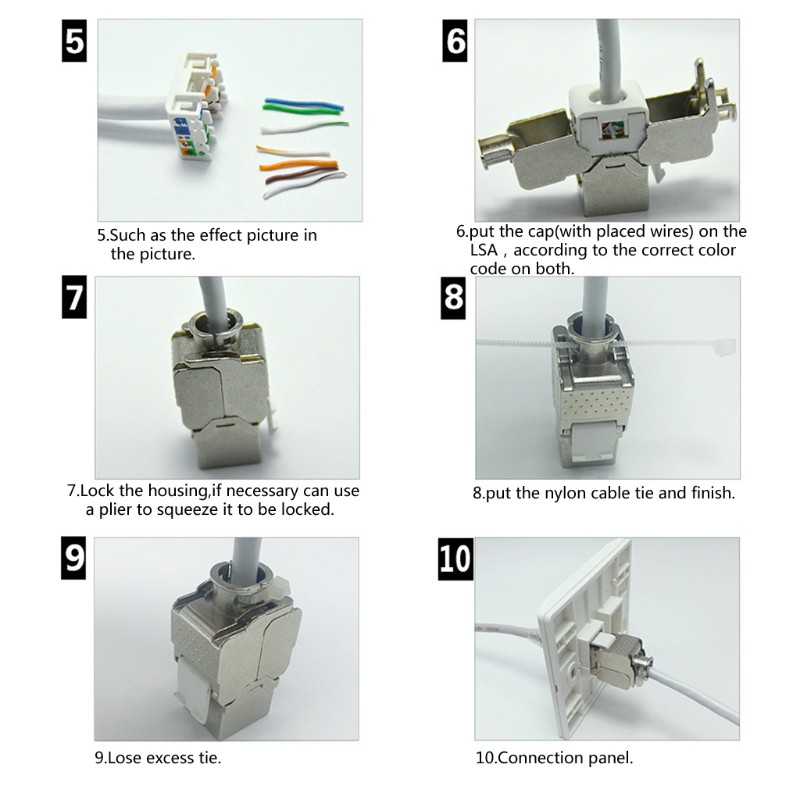

5.Such as the effect picture in the picture
6.put the cap(with placed wires)on the LSA，according to the correct color code on both
7.Lock the housing,if necessary can use a plier to squeeze it to be locked
8.put the nylon cable tie and finish
9.Lose excess tie
10.Connection panel

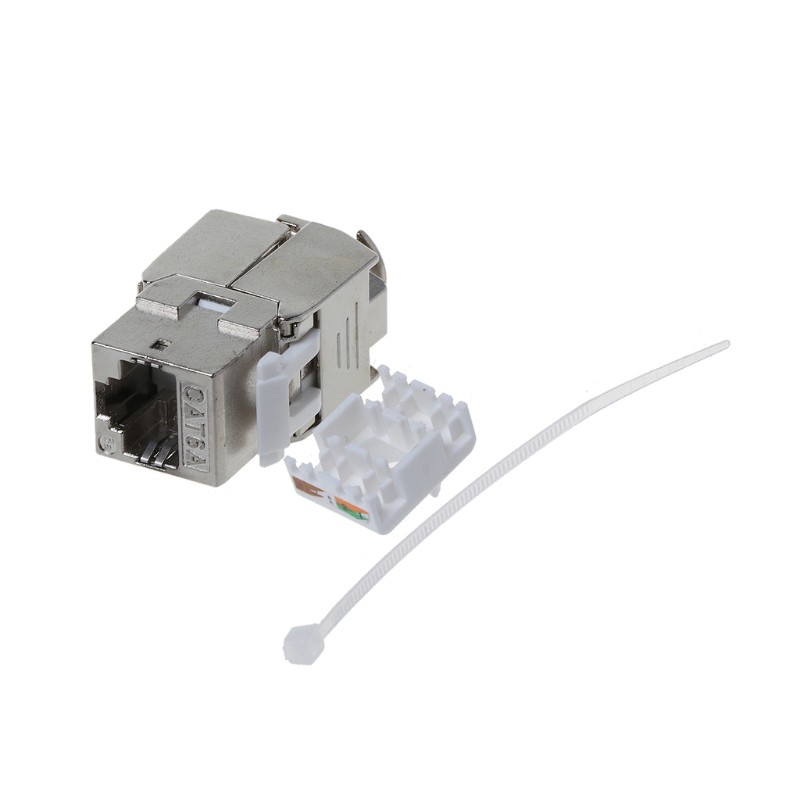

Package Includes: 5 x Cat 6/Cat 6A Shielded Keystone Modules

note: Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
