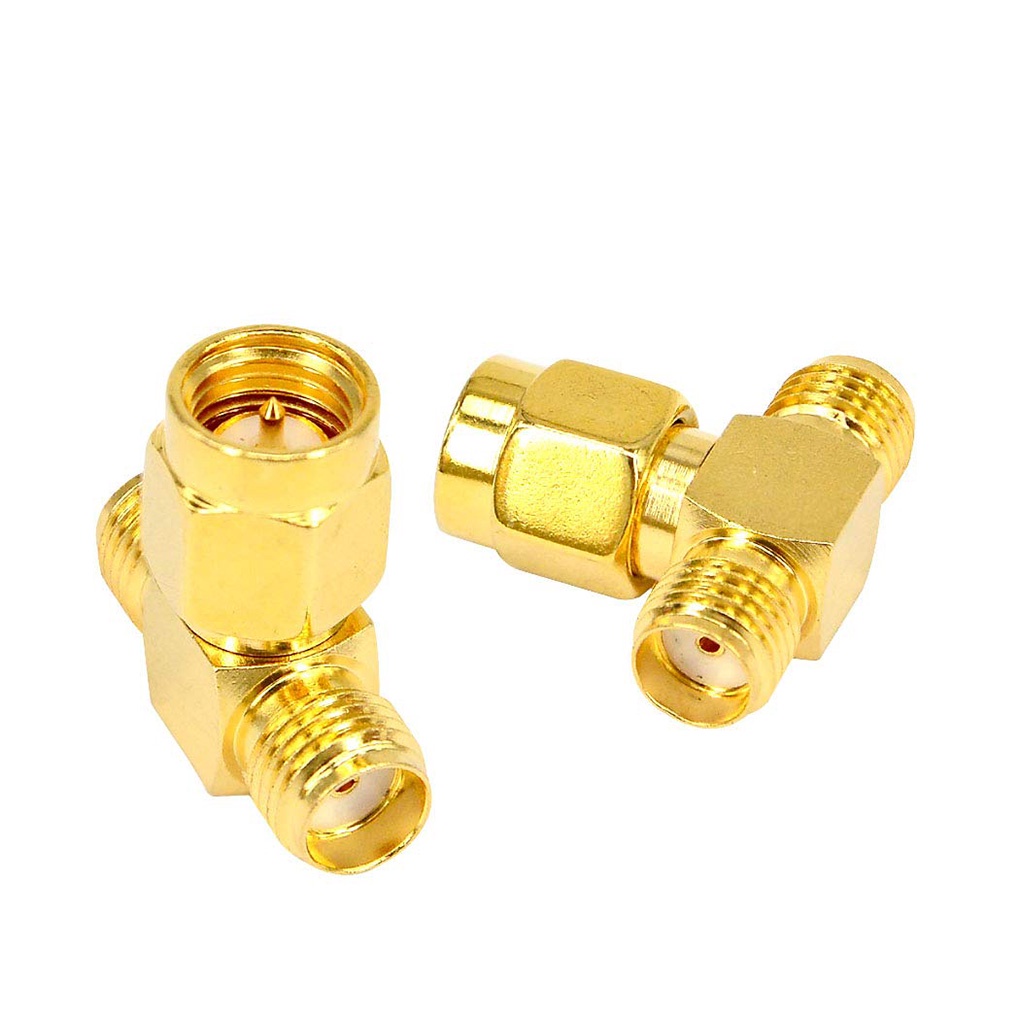

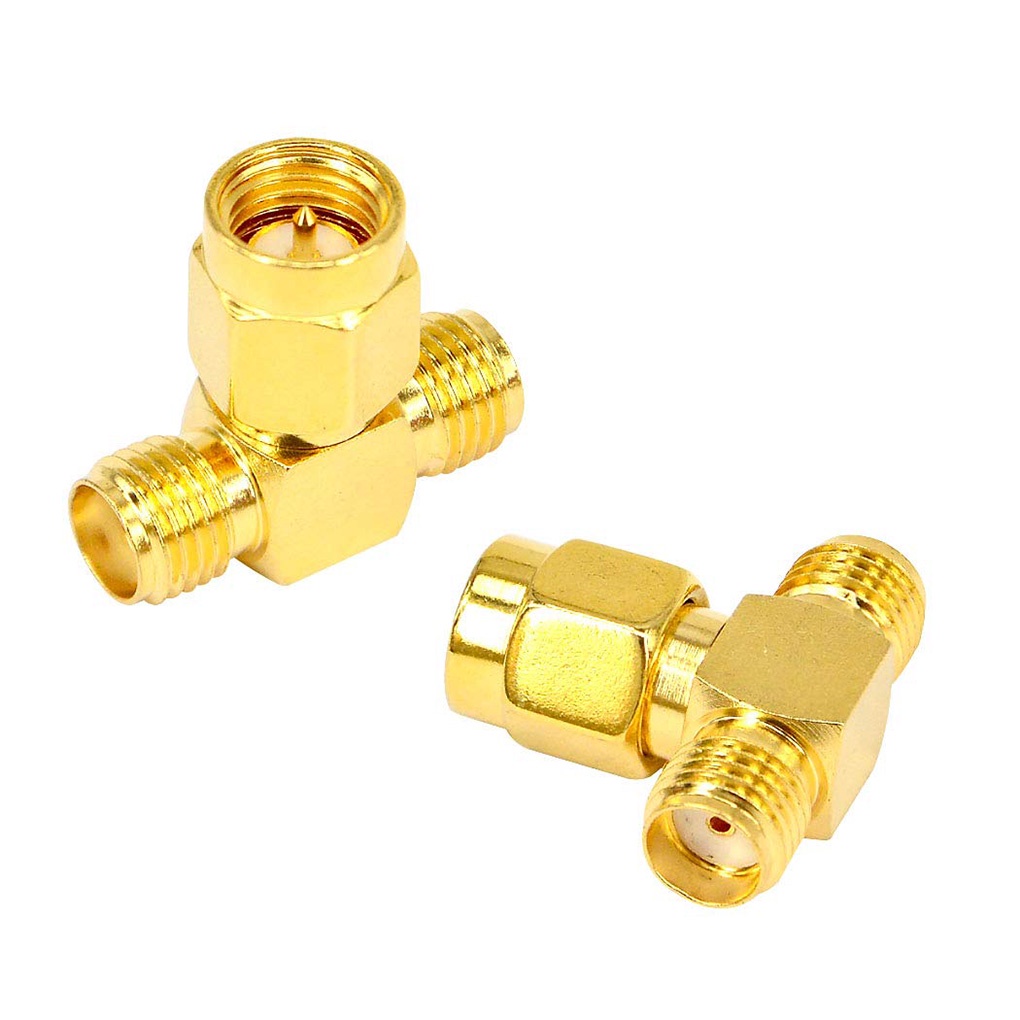

5pcs Adapter Konektor Splitter Rf Coax Sma Male Ke Dual Sma Female
Deskripsi singkat
Perlengkapan Rumah > Renovasi Rumah > Alat Pemeliharaan Rumah Lainnya > 5pcs Adapter Konektor Splitter Rf Coax Sma Male Ke Dual Sma Female
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail 5pcs Adapter Konektor Splitter Rf Coax Sma Male Ke Dual Sma Female
DescriptionTYPE SMA is one kinf of RF coaxial connectors that is widely applied.
With small-sized thread coupling,characteristic impedance is 50 Ω.
This SMA series is small threaded coaxial connectors with high frequency bandwidth.
With excellent performance, high reliability and long life, has a wide range of application.
Connection for two-way radio, audio, video, and other test equipment.
Specification:
Temp range: -65～+165℃ (PE Cable-40～+85℃).
Vibration: MIL-STD-202,Method 213.
Impedance: 50Ω.
Frequency Range：DC～12.4GHz.
Working Voltage：335V max.
Insulation resistance ≥ 5000 MΩ.
Insertion loss ≤0.15 dB/3GHz.
Note:
There might be a bit color distortions due to different computer resolutions.
There might be size errors due to different computer resolutions.
Type 2: 5 * RF coax adapter.
Gambar produk
