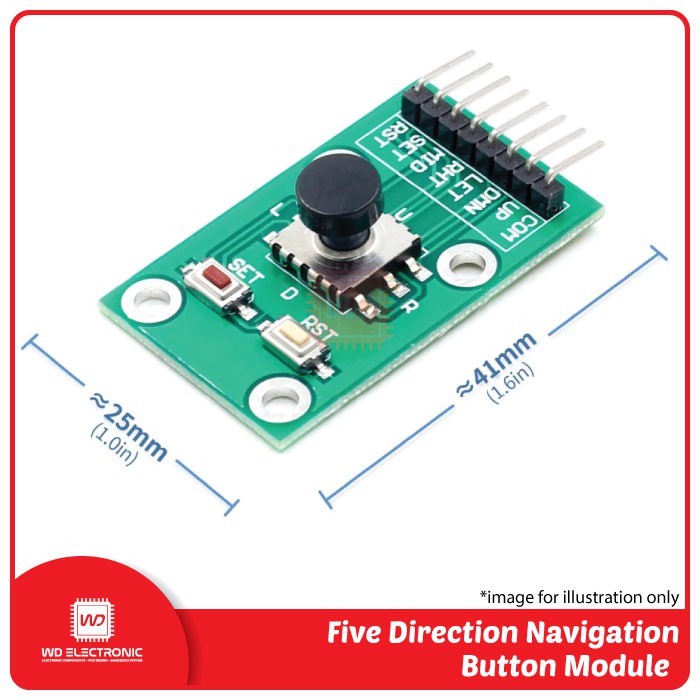

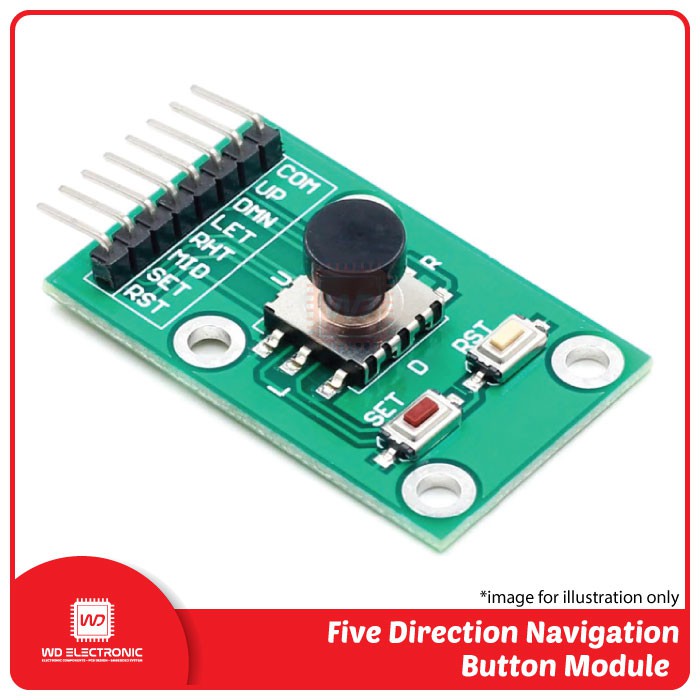

Detail 5D Rocker Joystick for Arduino Five Direction Navigation Button module
Hi #RekanEasyWare ... EasyWare Part#: EP000453
Do you need a 5D navigation button module? Here we have Five Direction Navigation Button Module especially for you. You can use it for MCU AVR Game 5D Rocker Joystick and as an Independent Keyboard for Arduino Joystick Module.
Pin Description : - COM (Common end): VCC or GND connected to the MCU development board - UP (Up direction button): Connect to IO pin of the MCU - DWN (Down direction button): Connect to IO pin of the MCU - LFT (Left direction button): Connect to IO pin of the MCU - RHT (Right direction button): Connect to IO pin of the MCU - MID (Middle direction button): Connect to IO pin of the MCU - SET (Set button): Connect to IO pin of the MCU - RST (Reset button): Connect to IO pin of the MCU
Spesifications : - Supports up/down/left/right/middle with extra set and reset button - 2V-9V wide working voltage - The number of IO: 7 - Operating temperature: -40℃ to 85℃ - Size: 4×2.5cm
Package : - 1x Five Direction Navigation Button Module
