Detail 5A RED KEYES AC Current Sensor arus module Current Transform crowtail

Deskripsi Produk
Description

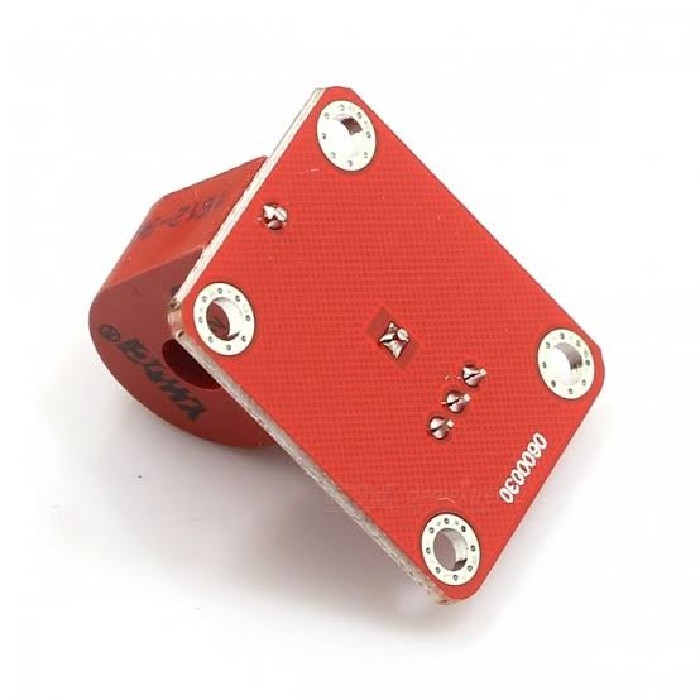

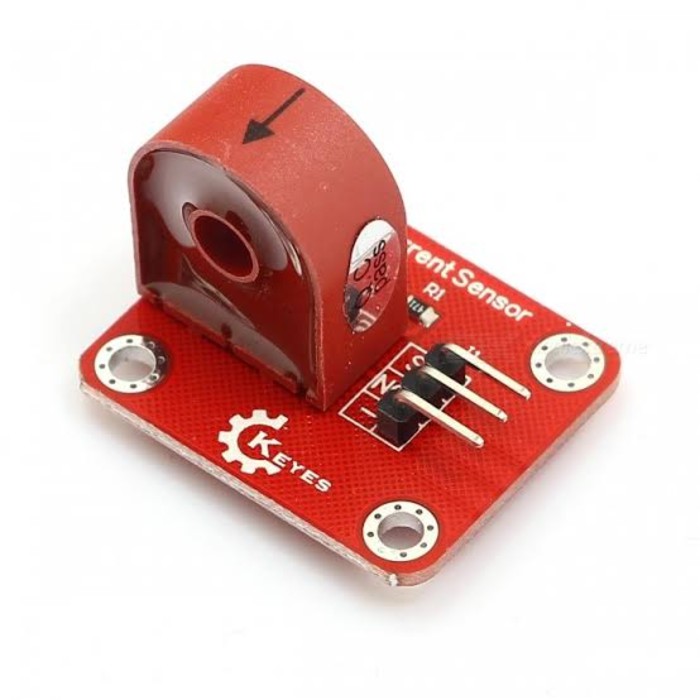

The Electricity sensor module is a member of Crowtail. It is based on the TA12-200 current transformer which can transform the large AC into small amplitude. You can use it to test large alternating current up to 5A.

Features
Crowtail compatible interface
Display Type: FSTN/Positive/Transflective/6:00 Visual Angle
Maximum 5A input
High accuracy
Small size

Specifications
Ratio: 2000: 1
Input Current: 0-5A
Output Current: 0-2.5mA
Sampling resistor: 800
Sampling voltage: 2V
Non-linearity: 0.2%
Phase Shift: 5 '
