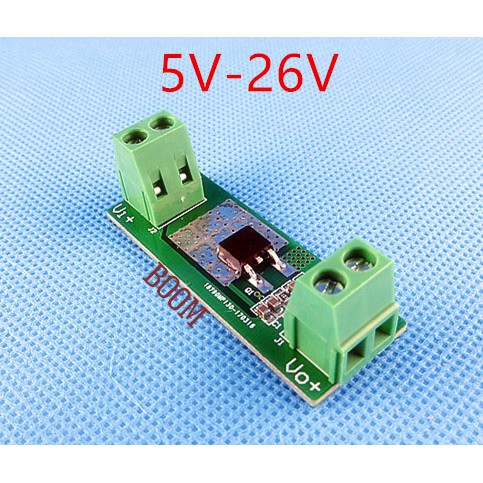

Detail 5A DC power supply reverse connection protection 5-26V (536)

Usually diodes are used as DC current reverse connection protection, but the DC voltage drop is above 0.5V, even up to 1V, which brings a lot of heat and reduces the efficiency of the power supply. This board uses a low RDS (on) MOSFET, the voltage is reduced to 0.1V within the rated current range, which is beneficial to improve the power supply efficiency and improve the reliability and safety of the circuit. This board is suitable for medium and low voltage DC applications. It can be used for frequent power-on and power-off tests during product development, or for important circuits to prevent misconnection of power polarity from damaging the circuit itself. The normal working current of the board can be kept below 5A, and the instantaneous overcurrent can reach 25A.
The output terminal of this anti-reverse connection module cannot be connected to the battery!
Optional working voltage file:
5V-26V
