5A constant current constant voltage LED driver (2092)

Detail 5A constant current constant voltage LED driver (2092)

Specification:
Rectification: non-synchronous rectification
Input voltage: 5V-30V
Output voltage: 0.8V-29V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: � 0.5%
Voltage Regulation: � 2.5%
Operating Temperature: -40to +85
Size:(L * W * H) about 51 * 26.3 * 14 mm / 2 * 1.04 * 0.55 inch
Voltmeter Ammeter:
Measurement accuracy: 0.1%
Refresh rate: about 200ms / times
Display: 0.28"digital tube
Current Range: 0A-5A
Voltage range: 5V-30V
Display Color: Red
Storage Temperature:-10 to +65
Input impedance: 50 milliohms
Package Size: about 10.8*7*2.4cm/4.25*2.76*0.94inch

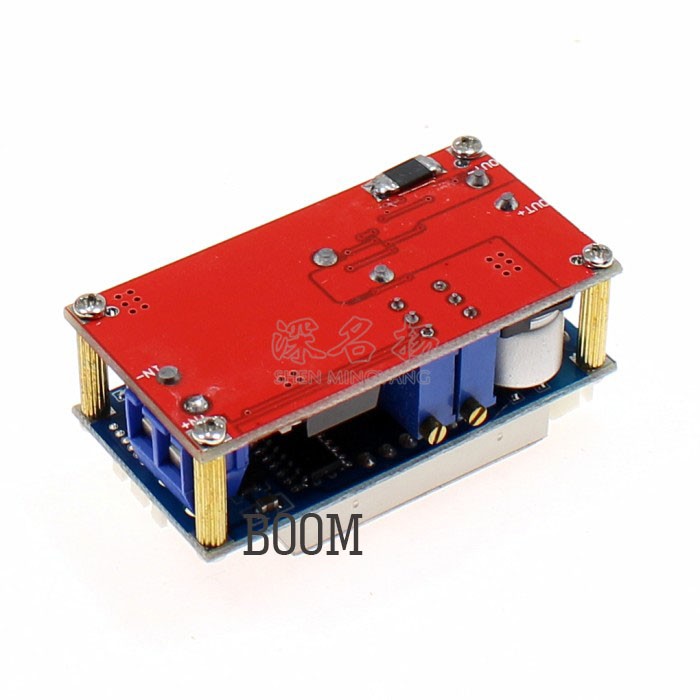

Gambar produk
