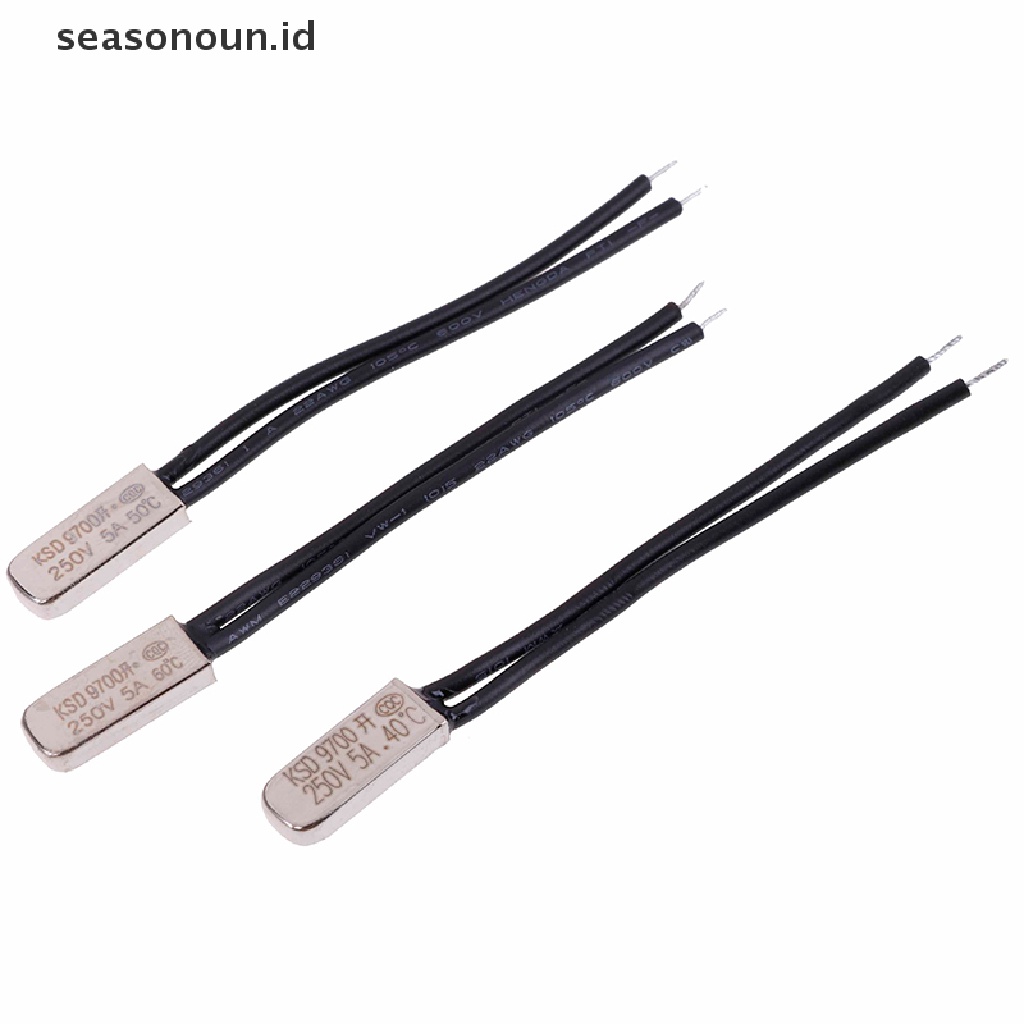

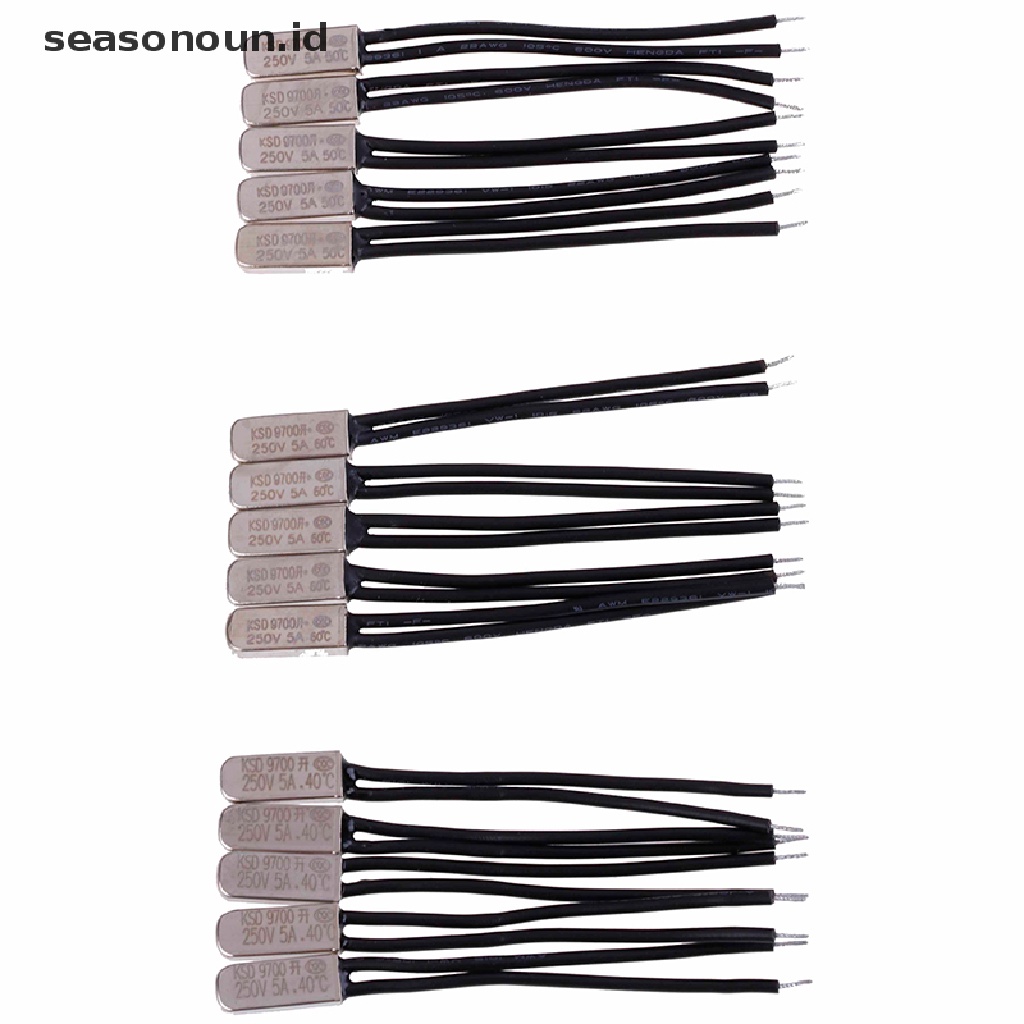

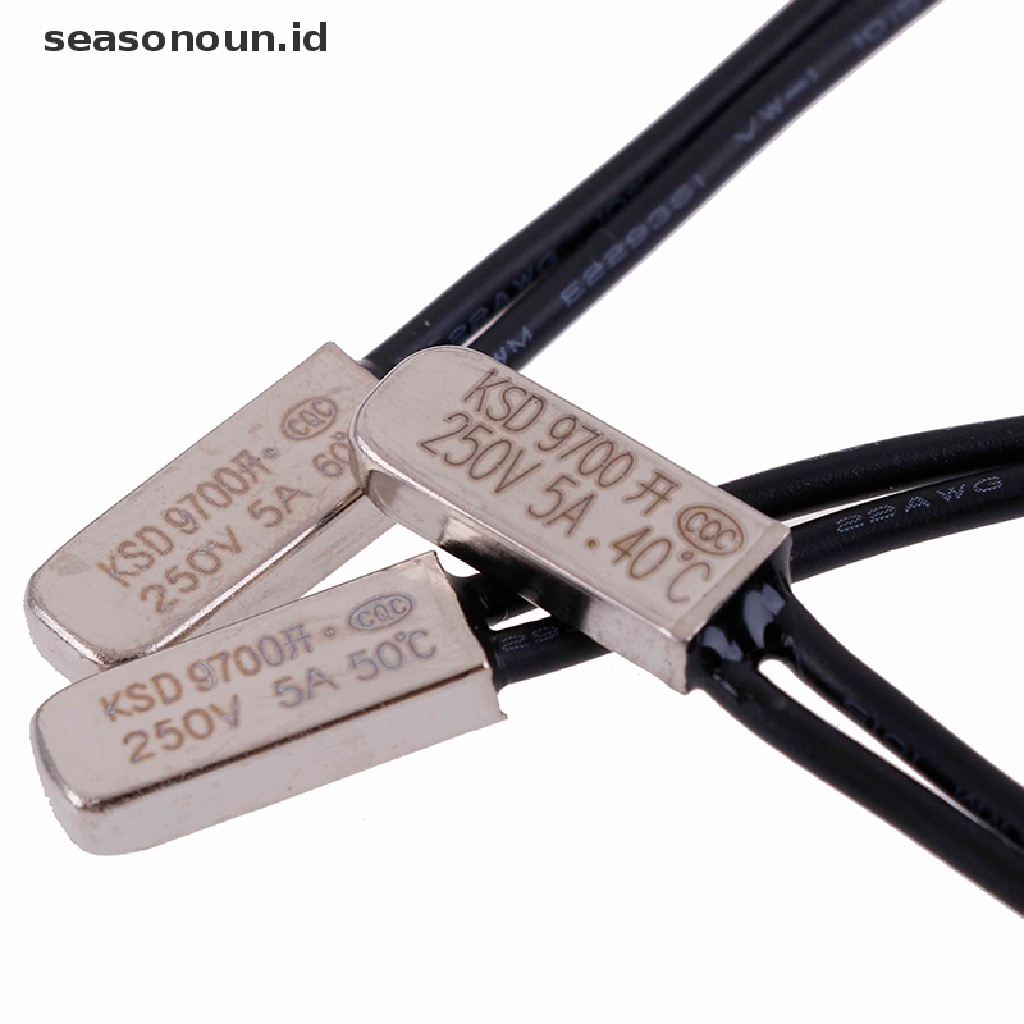

5 Pcs Saklar Kontrol Suhu Thermostat Celcius KSD9700 Derajat 5A 250V

Detail 5 Pcs Saklar Kontrol Suhu Thermostat Celcius KSD9700 Derajat 5A 250V

Description:
100% brand new and high quality
Material: Plastic, Metal
Color: See pictures
Product application
Be applicable to all kinds of home appliances and electronic products. Such as Electric Motors, Fluorescent Reactors,
Battery Chargers, Transformers, Solenoids, Heating Pads, OA-ETC Machines.
Temperature relay, thermal switch, thermal relay, temperature sensor, temperature control switch, thermal protector with small
size, Shell insulation, action sensitive, long life and so on
　
Model: KSD9700 250V / 5A 40/50/60 degrees -130 degrees ± 5 ℃
Switch type: Normally open/closed
Product Specifications: Conventional type 20mm * 8mm * 4mm
Rated voltage: 0-250V AC and DC general
Overload current: 5A or less
Life: 100,000 times

　
Reset Temperature Description:
When the operating temperature of 75 ℃ or less: reset the operating temperature minus 20 ℃ ± 10 ℃
When the operating temperature of 75 ℃ ~ 100 ℃: The reset temperature for the operating temperature minus 30 ℃ ± 10 ℃
When the operating temperature of 100 ℃ or more: reset the operating temperature minus 40 ℃ ± 10 ℃
　
Rated voltage: AC250V / AC125V;
Rated current: 5A or less
Normal electrical strength:> 800 V
Normal contact resistance: <50 milliohms
　
Nsulation resistance:> 100 milliohms
Response speed: ≦ 1 ℃ / mic
Length; 10cm/3.94"
Quantity: 5Pcs
Not Retail Package
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

5Pcs KSD9700 5A 250V 40/50/60 Degrees Celsius Thermostat Control Temperature Switch
