4WD Smart Car Chasis Kit DIY Arduino Robot

Detail 4WD Smart Car Chasis Kit DIY Arduino Robot

Deskripsi 4WD Smart Car Chasis Kit DIY Arduino Robot
Description:
20 line Speed Encoder, more accurate than 6 or 10 one.
The mechanical structure is simple, convenient installation.
The height between two chassis can be change by different copper pillar.
The four turn speed dc motor flexible, directional well. Quad, chronological horsepower. Chassis and stability is very easy to extend
The car comes with speed encoder, cooperate with our speed of photoelectric, can rapidly form a speed measuring system. Can speed, range, form a closed loop system.
The car with our four L293D motor driver module, four-way tracing module, and 51 control unit seamless docking, with red light expanded hole of obstacle avoidance, composition system is concise and good-looking.

Specifications:
Working Voltage: DC 3V/5V/6V
Working Current: 100 mA/100 mA/120 mA
Ni-load (with wheel): 100 RPM/190 RPM/240 RPM
Speed (no-load): 20 m/min / 39 m/min / 48 m/min
Noise: <65 db
Wheel Diameter: 66 mm
Size(L*W*H):25.5 x 15.5 x 6.5 cm

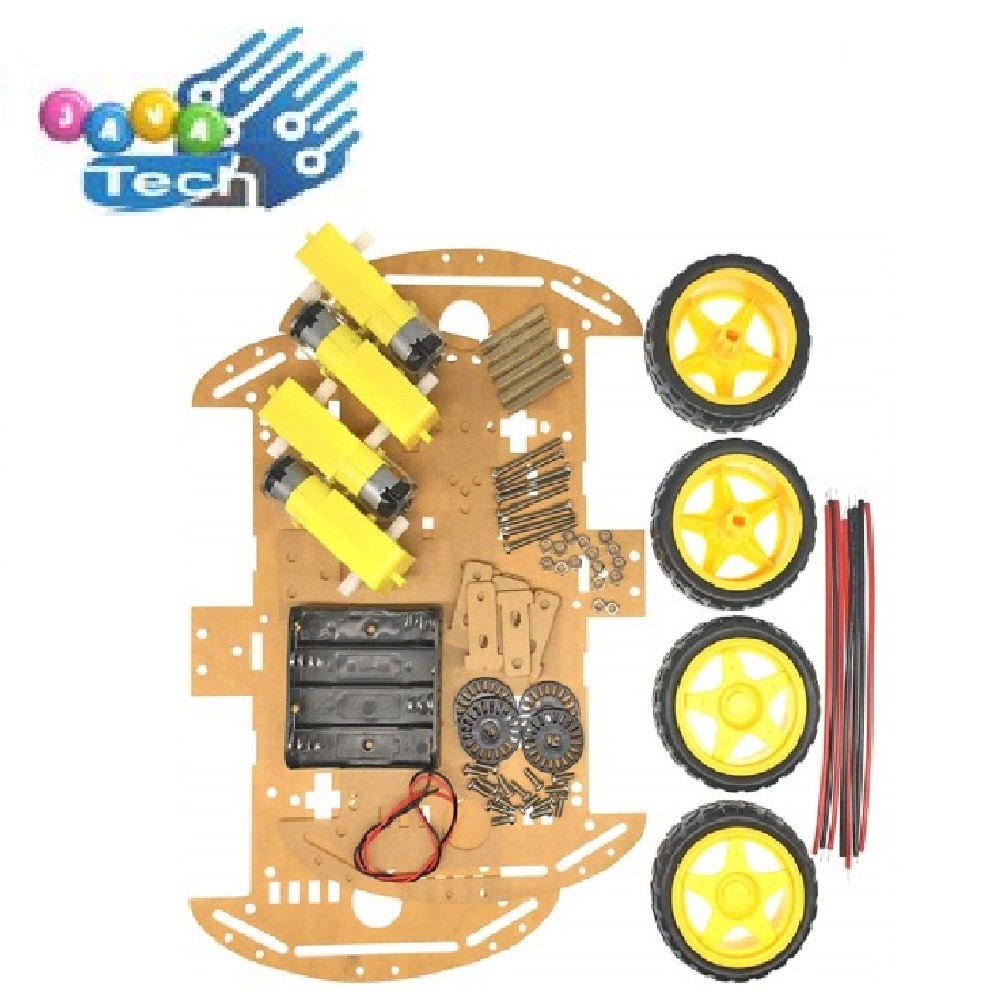

Package Included:
4 x Tyre
8 x Fastener
4 x 20 line speed encoder
2 x Smart car chassis (Acrylic)
4 x DC gear motor (strong magnet, testing by EMC)
1 x Set of Screw, Nut and Copper Pillar
