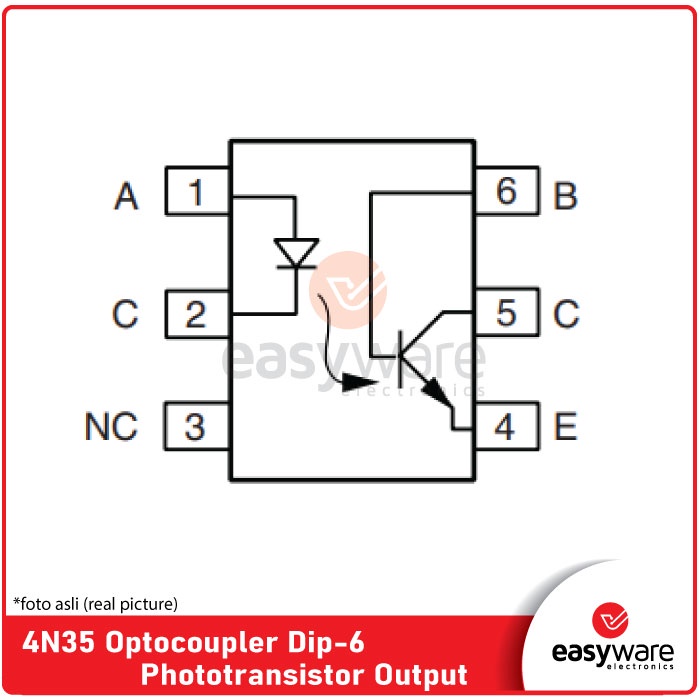

Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor.
FEATURES • Isolation test voltage 5000 VRMS • Interfaces with common logic families • Input-output coupling capacitance < 0.5 pF • Industry standard dual-in-line 6 pin package • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Specification : - Category : Isolators Optoisolators - Transistor, Photovoltaic Output - Mfr : Vishay Semiconductor Opto Division - Package :Tube - Product Status : Active - Number of Channels : 1 - Voltage - Isolation : 5000Vrms - Current Transfer Ratio (Min) :100% @ 10mA - Turn On / Turn Off Time (Typ) : 10µs, 10µs - Input Type : DC - Output Type : Transistor with Base - Voltage - Output (Max) : 70V - Current - Output / Channel : 50mA - Voltage - Forward (Vf) (Typ) : 1.3V - Current - DC Forward (If) (Max) : 50 mA - Operating Temperature : -55°C ~ 100°C - Mounting Type : Through Hole - Package / Case : 6-DIP - Base Product Number : 4N35
APPLICATIONS • AC mains detection • Reed relay driving • Switch mode power supply feedback • Telephone ring detection • Logic ground isolation • Logic coupling with high frequency noise rejection
