Detail 433MHz RF Transceiver Module - Transmitter dan Receiver

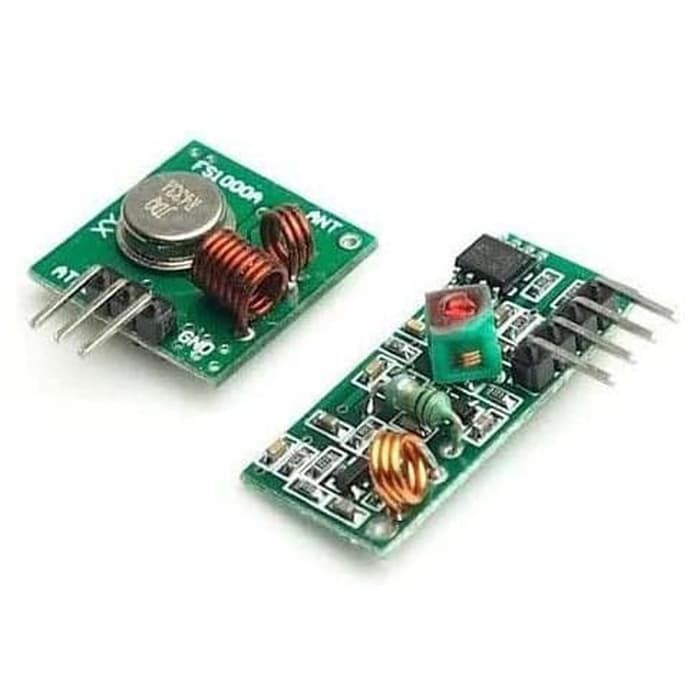

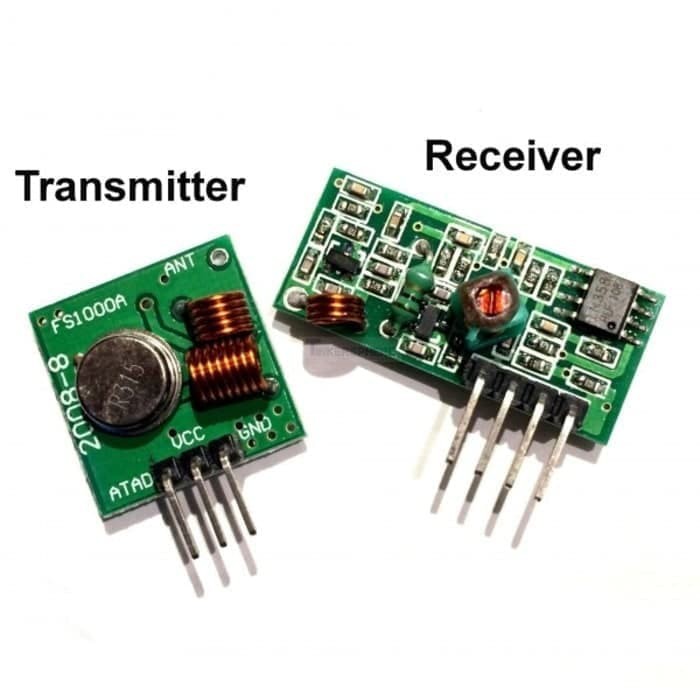

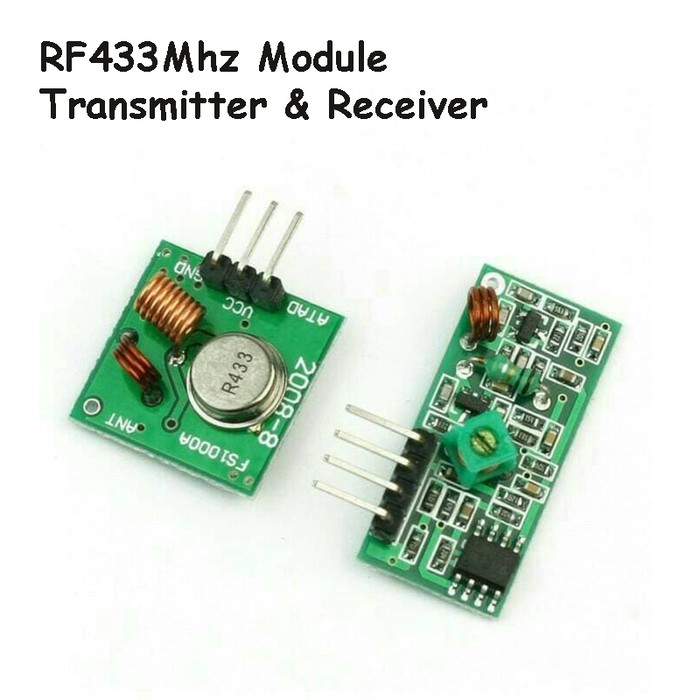

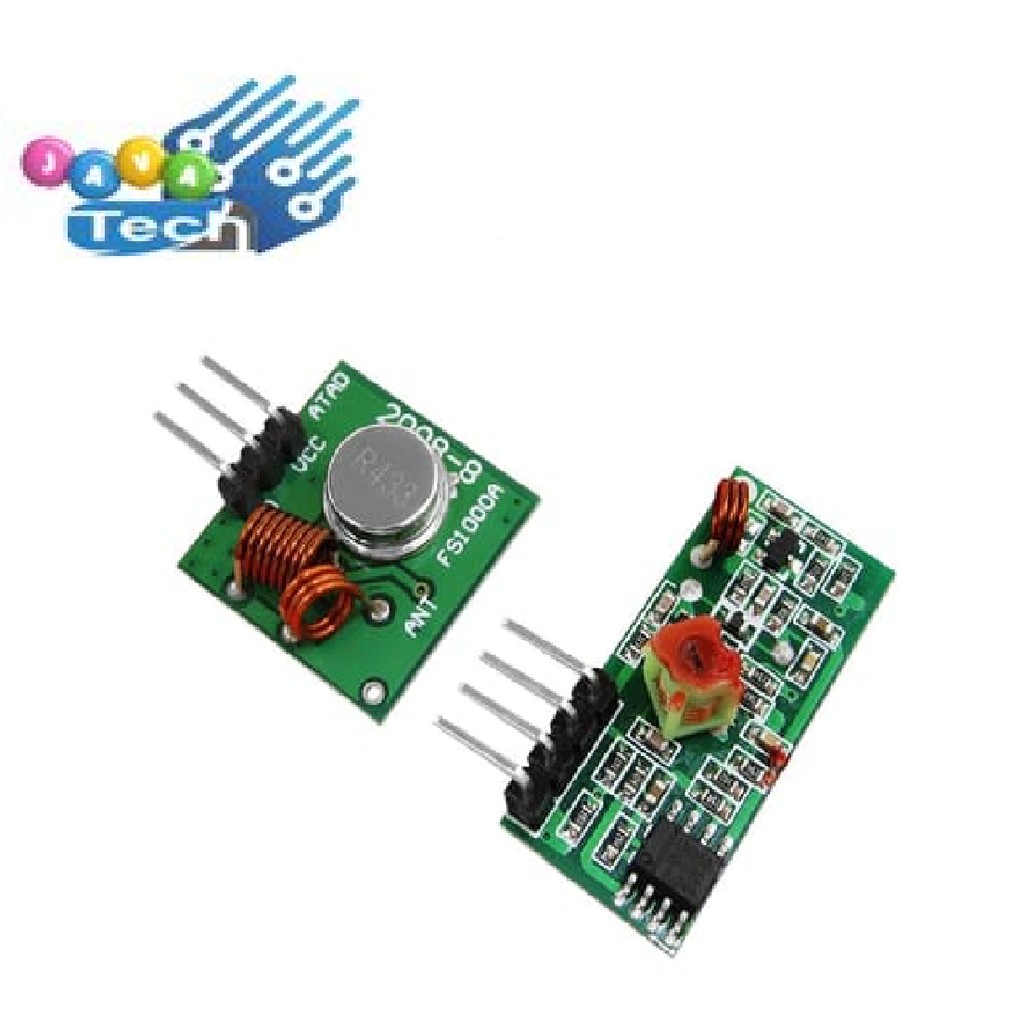

433MHz RF Transceiver Module - Transmitter dan Receiver
433MHz Transmitter - Receiver Module untuk Arduino.

Specification:
Receiver module:
Operating voltage: DC5V / Quiescent Current: 4MA / Receiving frequency: 433.92MHZ
Receiver sensitivity: -105DB / Size:30x14x7mm / Working method: OOK/ASK
Working frequency: 315MHz-433.92MHz / Bandwidth: 2MHz
Sensitivity: excel 100dBm (50) / Transmitting velocity: 9 .6Kbps (at 315MHz and -95dBm)

Transmitter:
Range distance :10-100 meters (different voltage, different results)
Operating voltage :3.5-12V / Dimensions: 19 * 19mm / Operating mode: AM
Transfer rate: 4KB / S / Transmitting power: 10mW / Transmitting frequency: 433M
Pinout from left right: (DATA; VCC; GND)

Package included:
1 x Receiver module
1 x Transmitter
