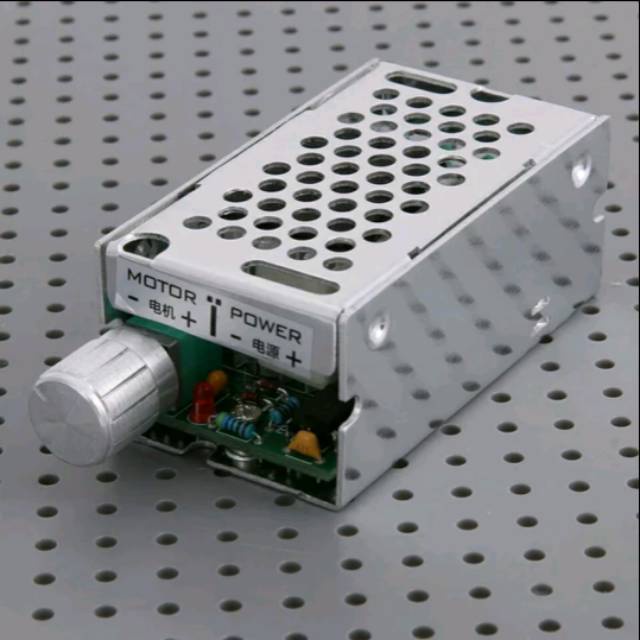

Detail 400W 8A MOTOR SPEED CONTROLLER DC 12V-60V ADJUSTABLE MOTOR SPEED DRIVER

DC Brush PWM DC Motor Speed Controller Switch Regulator 12V/24V/36V/60V 400W For DC Motor

Description:
It's a PWM speed controller so it enables you to control the speed of these little DC brush motors smoothly. It's ideal for applications like fans, etc. providing nice adjustment of motor speed instead of the more usual "High-Low" switching

Features:

Wide range of operating voltage: 12V, 24V, 36V, 60VA good speed controller for DC brush motors High-frequency capacitance, power tube and 10A fuse are used in the moduleAdopts sealed and high-quality potentiometer with switch, stable performanceMetal case creates better durability; high efficiency and low noiseSuitable for applications like fans, etc. providing nice adjustment of motor speed
Specifications:
Operating Voltage: DC 12-60V
Rated Current: 8A
Max. Current: 10A
Control Power: Max. 400W
Speed Control Range: 0% -100%
PWM Frequency: 21KHz
Item Size: 73 * 39 * 31mm

Package Includes:
1 * DC Motor Speed Controller
