Detail 4 Channel IR Infrared tracking module 4 Infrared Avoidance sensor
Hi #RekanEasyWare ...EasyWare Part#: EP000640
Specifications:
- Working voltage: DC 3.3V-5V
- Working current: try to choose more than 1A power supply
- Working temperature: - 10oC - +50oC
- Mounting aperture: M3 screws
- Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.

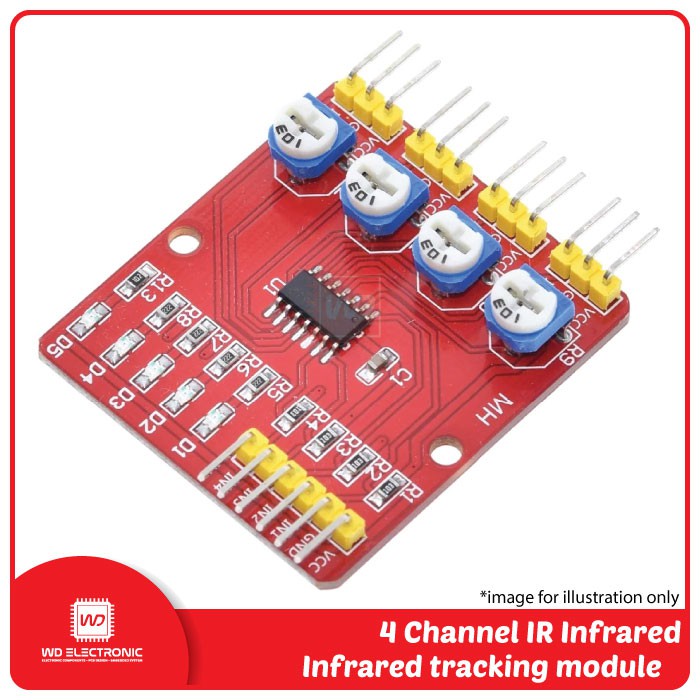

- Size: in the control panel of 42mm * 38mm * 12mm (length * width * height)

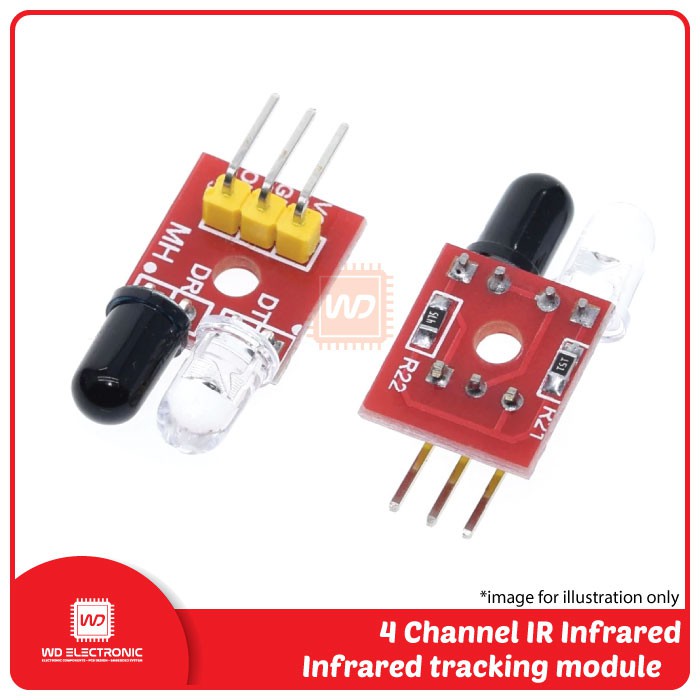

- Small forward 25mm * 12mm * 12mm (length * width * height)
- Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
- The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
Package :
- 1x Four-way infrared tracing / 4 channel tracking module / transmission line / obstacle avoidance / car / robot sensors
