3pdt 9pin Tombol Tekan Untuk Pedal Efek Gitar Diy

Detail 3pdt 9pin Tombol Tekan Untuk Pedal Efek Gitar Diy

Feature:

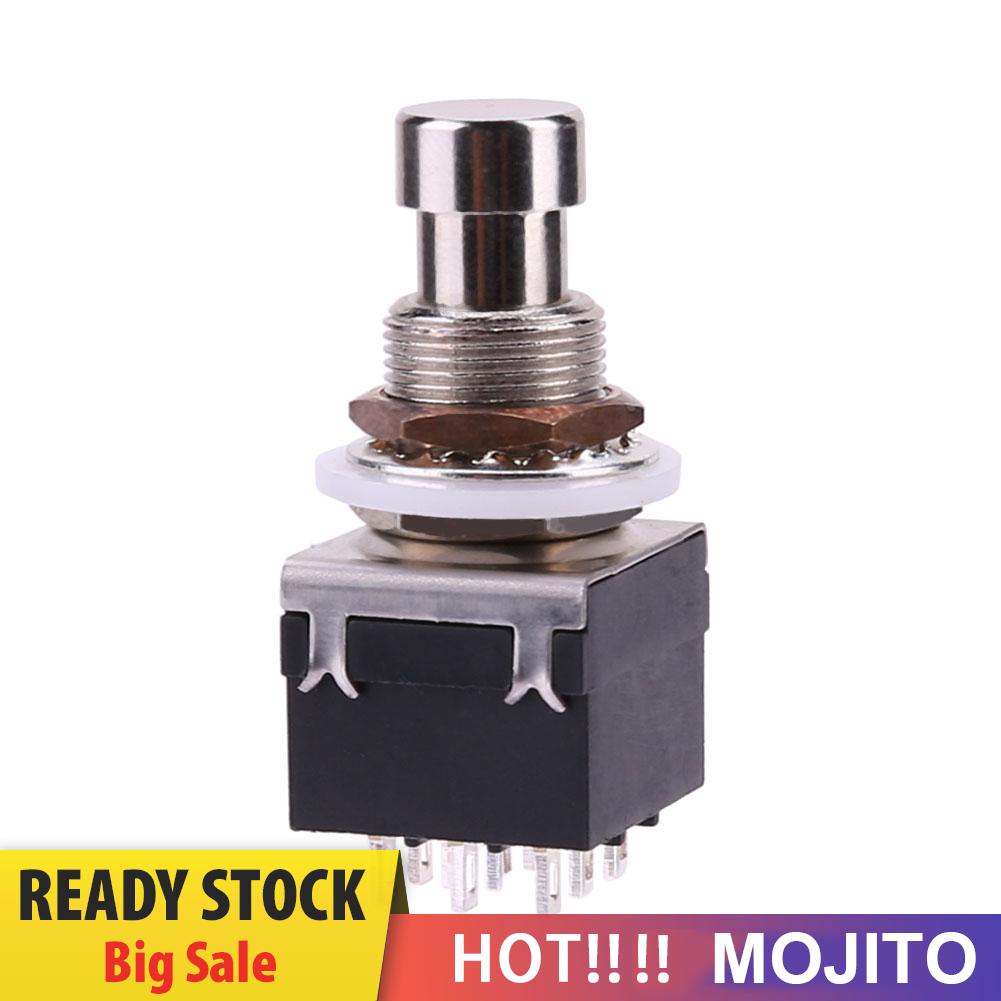

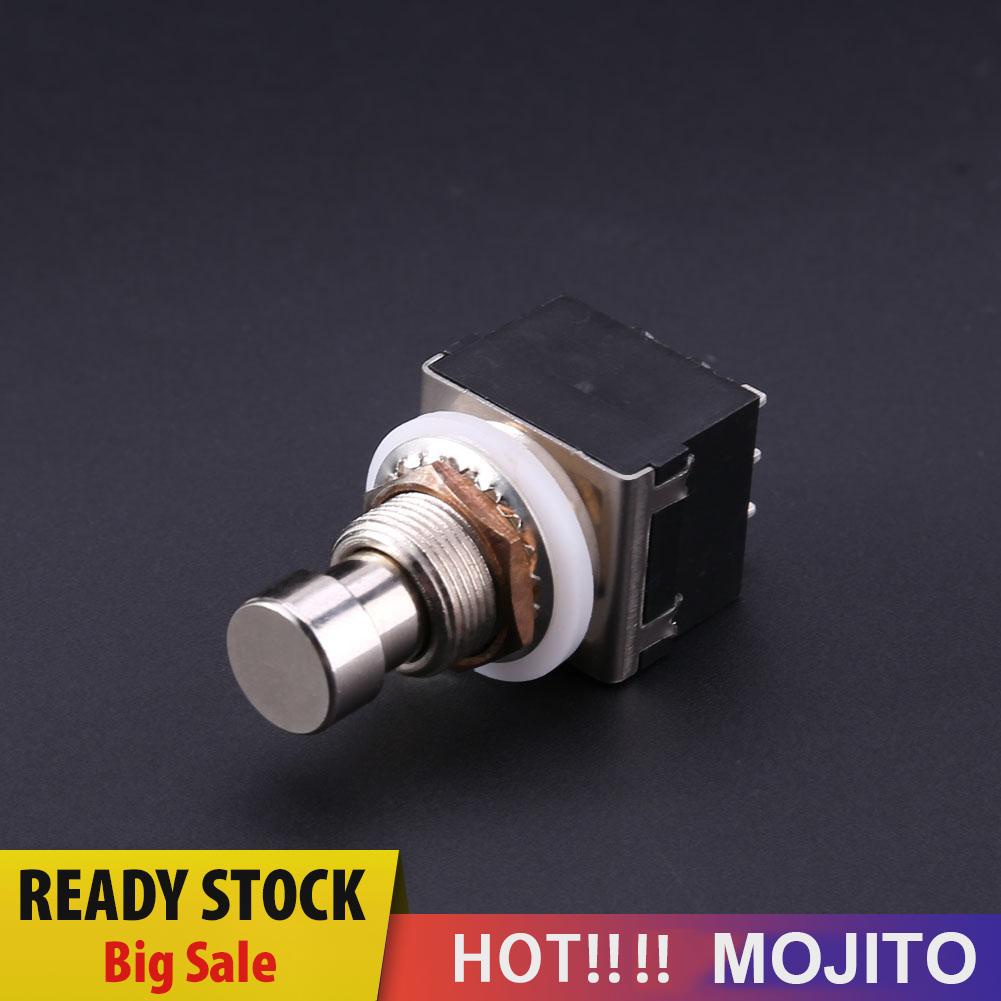

Brand New Small 9pin 3PDT Foot Switch, True Bypass
Contact Resistance: 50mΩ or less
Insulation Resistance: 100MΩ or more
Soldering Condition:
Soldering temperature: 230℃ max.
Continuous Soldering Time: 3 seconds max.
Capacity of soldering iron: 20W max.
Service time: 10000 cycles at a speed of 30 cycles per minutes without loading
Mounting Diameter: 12mm
ON-OFF of the three systems are available
Can Be used to ON-OFF the LED, such as in addition to the Instrumental bypass
It's Slightly smaller than the bull 3PDT switches
Operating Temperature Range: -60℃-+60℃
Switching Rating: AC 125V,6A
Actuating Force: 2.8±0.8Kfg
The price is for 1PC/lot




Included:

1 X 3PDT 9pin Push Button Foot Switch

Gambar produk
