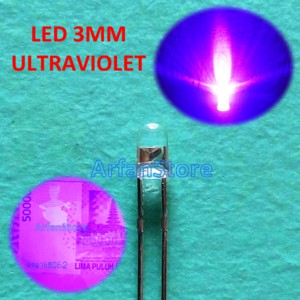

Detail 3mm UV LED Ultraviolet Lampu Cahaya Ultra Violet Purple Deteksi Uang PER 10PCS
3mm UV LED Ultraviolet Lampu Cahaya Ultra Violet Purple Deteksi Uang PER 10PCS
Spesifikasi: Emitted Colour : UV Size (mm) : 3mm Lens Colour : Water Clear Peak Wave Length (nm) : 395~400 Forward Voltage (V) : 3.0 ~ 3.4 Reverse Current (uA) : <=30 Luminous Intensity Typ Iv (mcd) : Average in 2000 Life Rating : 100,000 Hours Viewing Angle : 120 ~ 140 Degree Absolute Maximum Ratings (Ta=25C) Max Power Dissipation : 80mw Max Continuous Forward Current : 30mA Max Peak Forward Current : 75mA Reverse Voltage : 5~6V Lead Soldering Temperature : 240C ( 5Sec ) Operating Temperature Range : -25C ~ +85C Preservative Temperature Range : -30C ~ +100C
