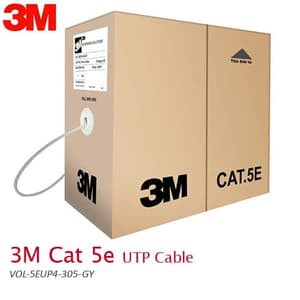

3M Kabel UTP Cat 5 Cat 5e Cat5 Cat5e

Detail 3M Kabel UTP Cat 5 Cat 5e Cat5 Cat5e

VolitionTM
Category 5e cable 100 , UTP
Applications Standards
- IEEE 802.3-IEEE802.5 - EN 50288-1
- FDDI - EN 50173
- ATM - ISO/IEC 11801
- RNIS - TIA/EIA 568
- IEC 61156-5
Installation Characteristics
Maximum pulling tension (N) 80
Minimum bend radius during installation (mm): 40
Minimum installed bend radius (mm) 20
Nominal weight 30 kg/km
Temperature rating (C)
Installation 0 to +50
Operation -20 to +60
Flammability Performances
Fire retardant IEC 60332-1
Halogen free (LSOH versions) IEC 60754-1
Part of the 3M Volition Network Solutions, this 250 MHz UTP
cable is a Category 5e TIA/EIA 568 and Class D ISO 11801 and
EN 50173 approved range.
The green sheath has length marking which is easy and convenient
for the installer and gives a clear identification of cable and link
lengths.
A polyester tape between the sheath and twisted pairs allows easier
stripping.
As a 3MTM branded product, it offers 3MTM system identity for corporate
and warranty approval.

Catatan penjual :
Kita menggunakan kabel 3M cat 5 ini di tarik sepanjang 160M berjalan dengan lancar
