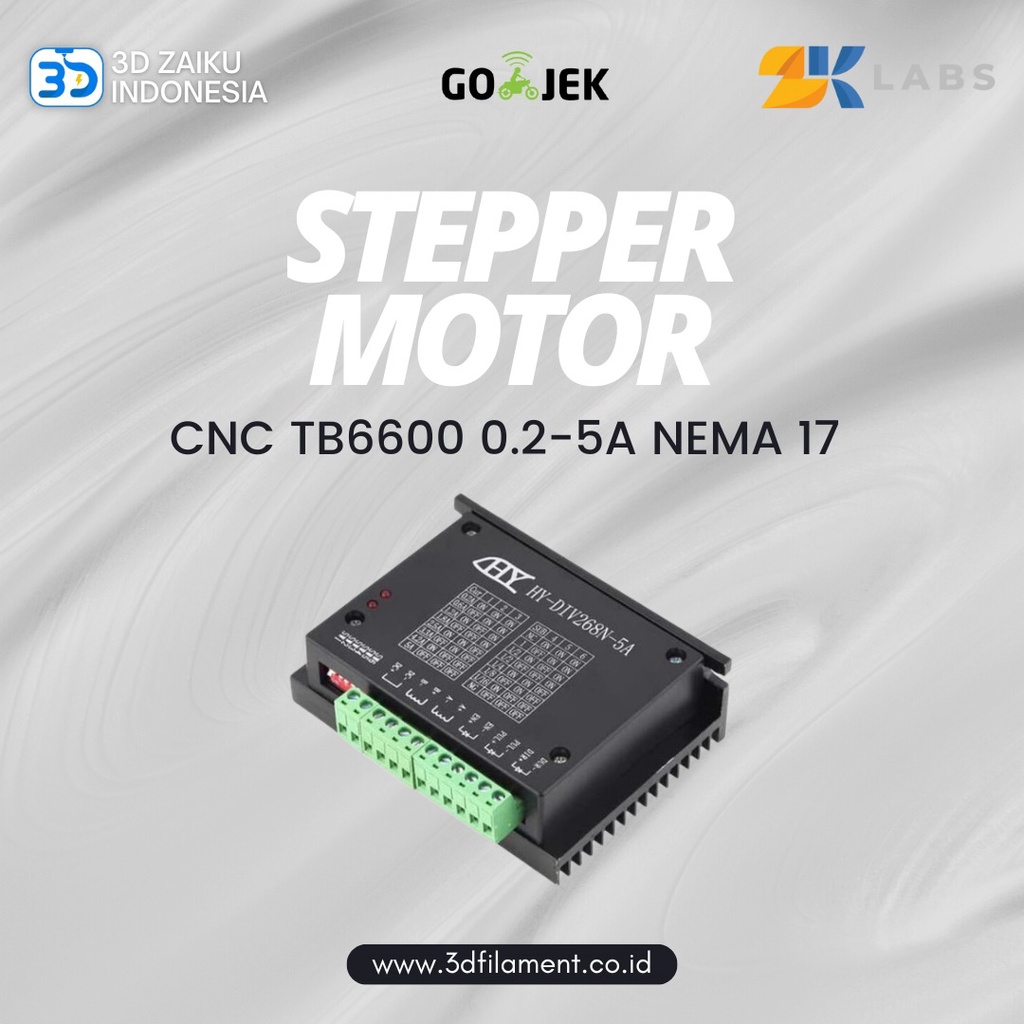

3D Reprap CNC TB6600 0.2-5A CNC Controller Sttepper Motor Driver Nema 17,

Detail 3D Reprap CNC TB6600 0.2-5A CNC Controller Sttepper Motor Driver Nema 17,

3D Zaiku Indonesia

TB6600 0.2-5A CNC controller ,stepper motor driver nema 17,23, tb6600 Single axes Two Phase Hybrid stepper motor for CNC

Merek : Zaiku TB66-5
Tipe : TB6600 0.2-5A Motor Driver
Garansi sparepart 6 bulan untuk semua merek Zaiku

Automatic idle-current reduction.
Supply voltage up to 48V DC
Output current up to 5.0A.
Suitable for 2-phase and 4-phase motors.
High speed optoelectronic isolation signal input.

Single-chip PWM bipolar sinusoidal chopper ensures low vibration and high efficiency.
1, 2, 4 (New Mode), 8, 16 adjustable microstep control, motors run more precisely and smoothly.

Equipped with the 3rd generation of breakout board, display panel and control pad to control the motor manually.

Overload, overcurrent, overheat, overvoltage and undervoltage protection to avoid damaging your computer and devices.

Cooling Aluminium Box Design for Cooling, and protect the driver board from being damaged by dirt, dust or other liquids.

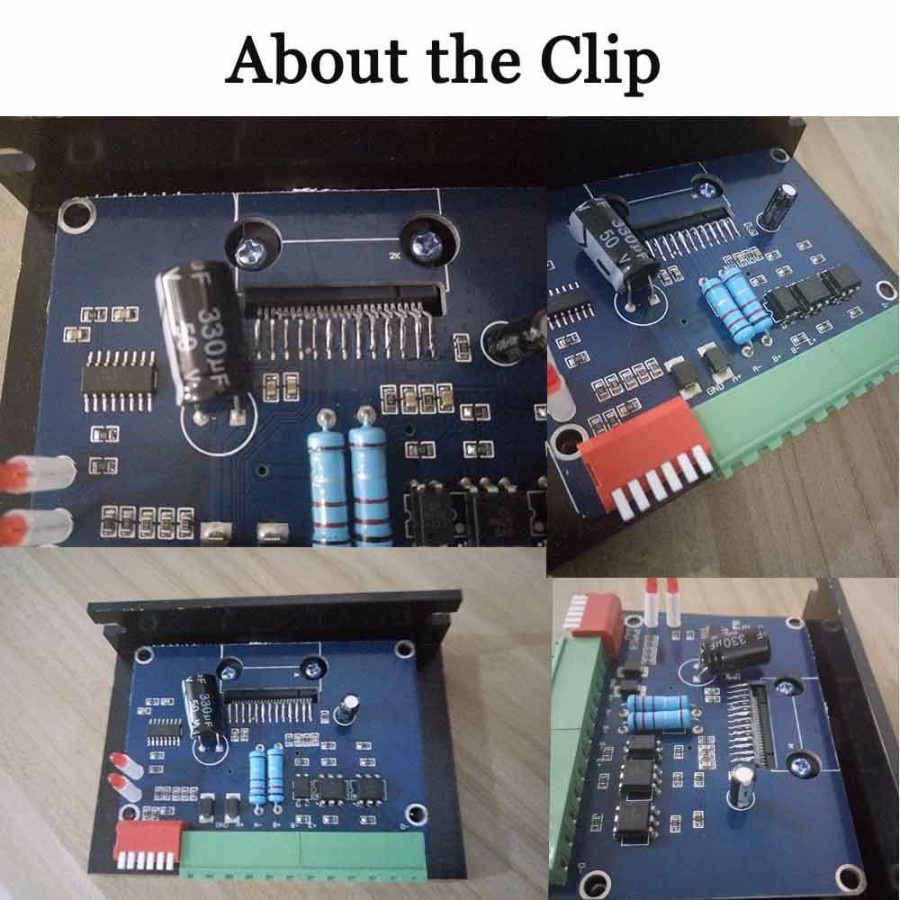

The TB1H is a high performance microstepping driver based on the latest original for TOSHIBA high-efficiency TB6600HG for IC. The TB6600HG adopts single-chip PWM bipolar sinusoidal chopper to ensure the low vibration and high efficiency.

Moreover, the brand new design with BiCD0.13 (50V) process technology on the chipset also ensures maximum 5.0A output current and 50V output withstand voltage.

Consequently, as long as the current range of the stepper motor is within 0.2-5 amps, all the 2 Phase or 4 Phase of Nema17, Nema23, Nema24 and Nema34 stepper motors will work perfectly with this new-type TB6600HG Stepper Driver.

Ready Stock

Gambar produk
