35mm Guide Hinge Hole Drilling Jig Conceal Locator Hole Opener Drill Tools

Detail 35mm Guide Hinge Hole Drilling Jig Conceal Locator Hole Opener Drill Tools

Video perkenalan produk 35mm Guide Hinge Hole Drilling Jig Conceal Locator Hole Opener Drill Tools. Sumber: Shopee.

35mm Door Cabinet Guide Hinge Hole Drilling Jig Conceal Locator Hole Opener Template DIY Drill Hand Tool for Carpentry Woodworking Accessories
Feature:
1. Bit guide tool for convenient drilling of hinge holes.
2. The hole position is accurate without drawing line, which is suitable for 35mm hinge.
3. With this drill guide, you can drill the hinge hole easily and quickly.
4. Good tool for DIY or professional engineer.
5. Quickly locate the drill center point of all brand hinges and mounting plates.

Specification:
Item: drilling positioner
Material: ABS
Project type: hinge hole fixture
Applicable to hinge size: 35mm
Size: 66 * 77 mm/2.6*3.03in
Color: Blue

How to Use:

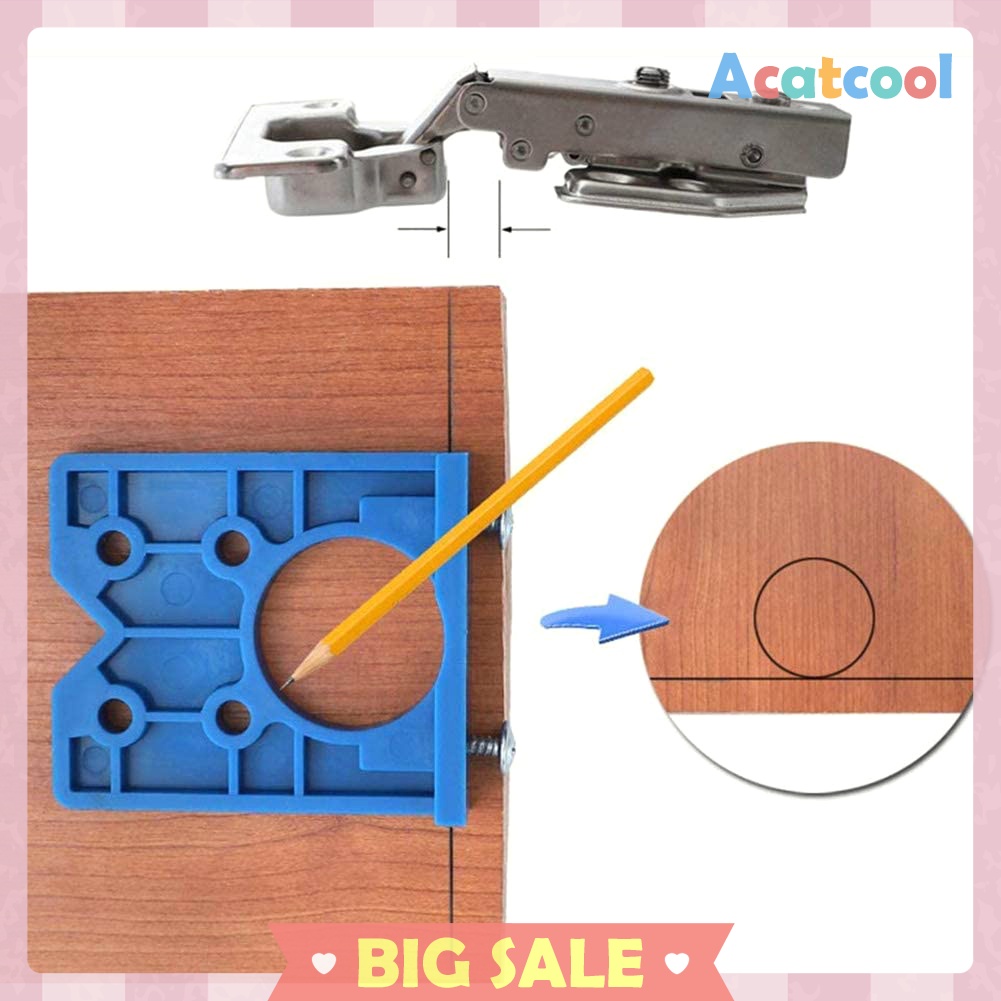

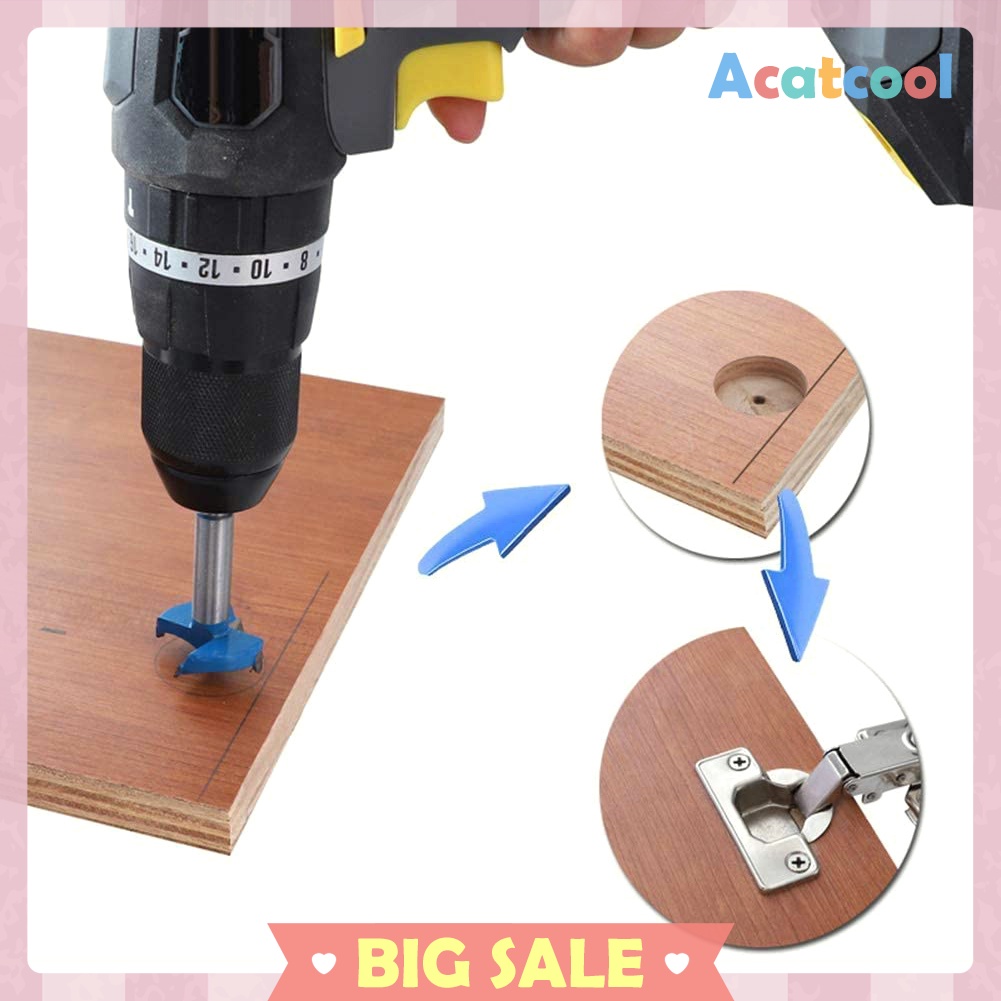

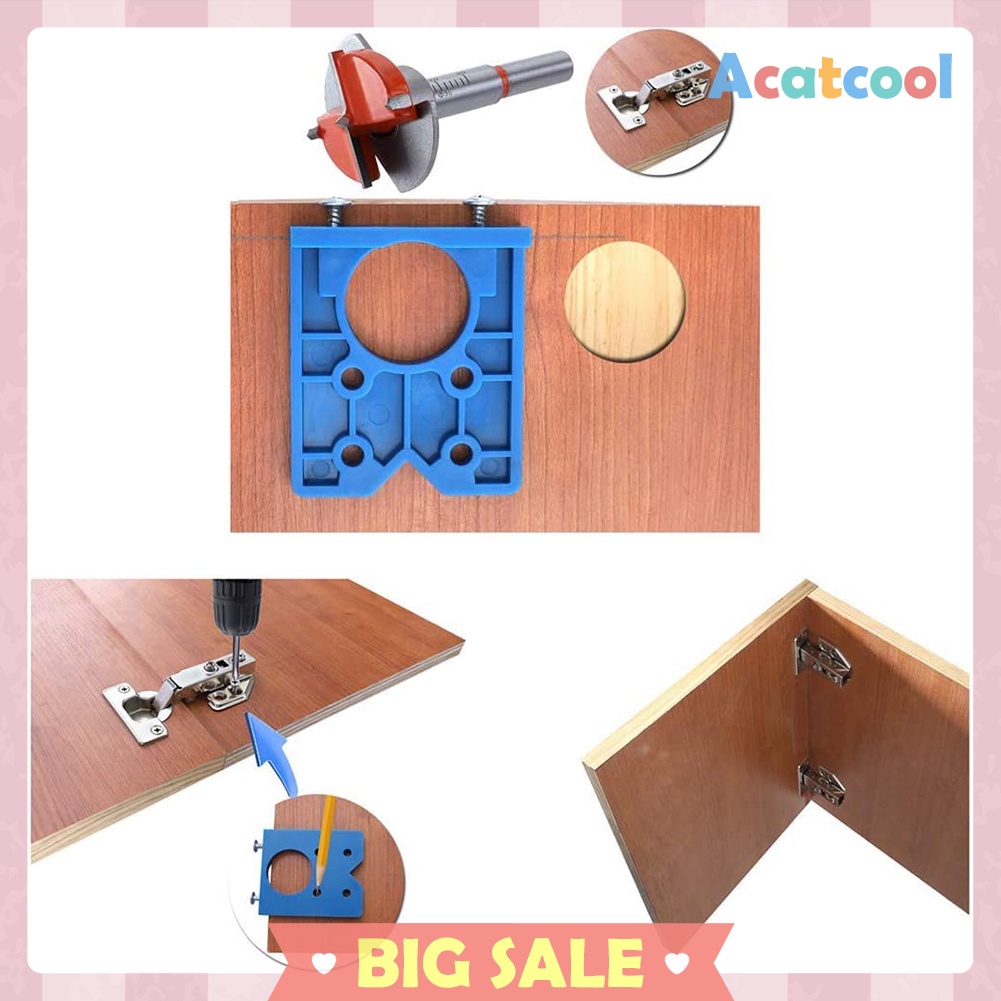

1. Determine the position of hinge cup, short plate facing up, fix the screw to the edge of the board and drill the hinge cup.

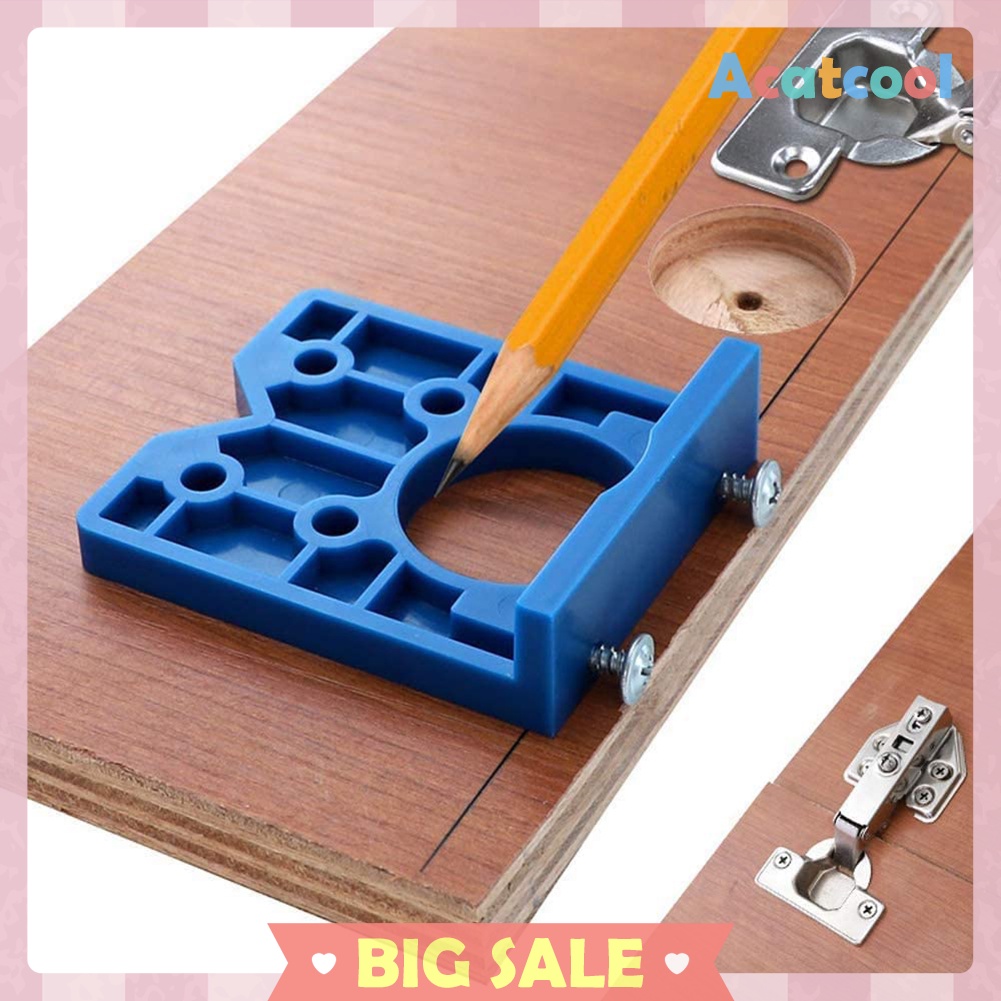

2. Draw the corresponding center line on another board and the short plate facing down, the center line is aligned with the inverted triangle, and then the positioning hole is drilled.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.

Included:

1 x Hinge Hole Drilling Guide
