[30m] Kabel SDI Video BNC-BNC | Canare L45CHWS

Detail [30m] Kabel SDI Video BNC-BNC | Canare L45CHWS

Kabel SDI Video BNC-BNC | Canare L45CHWS

Maximum transmission distance:
SDI up to 225m, HD-SDI up to 87 meter, 3G-SDI up to 60 meter.

---------------- Spesifikasi ---------------------

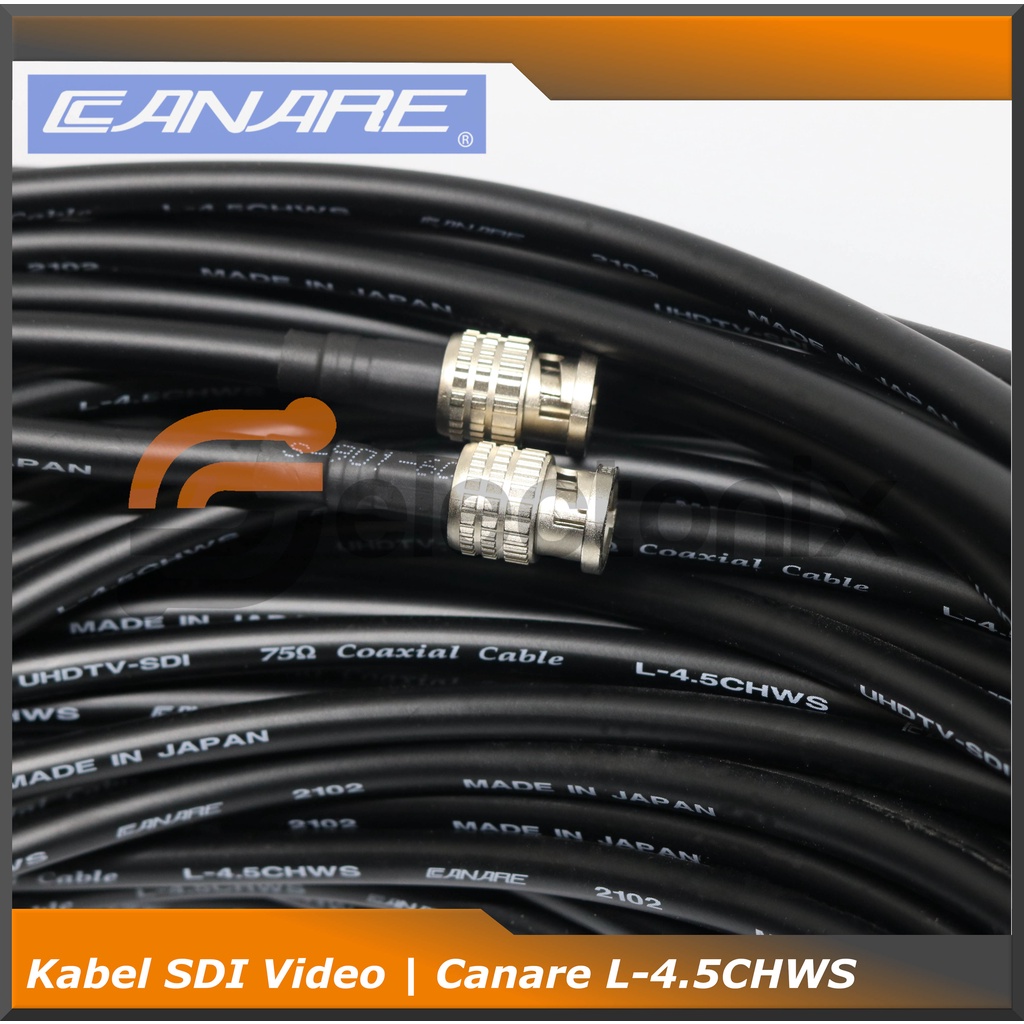

Cable: Canare L-45CHWS super low loss 75 Ohm coaxial cable
Connector: Canare BCP-B45HW
Panjang: 30 Meter

----------------- Key Feature ------------------
- SMPTE 424M & 292M Compliant
- Serial Digital Video
- HDTV Upgrades
- NTSC Analog
- Test Equipment
- Satellite Headends
- TELCOM
- True 75 ohm construction Crimp Pin & Sleeve
- High performance of 1.1 or less VSWR up to 3GHz
- Elongated Body for better finger grip
- Position mark on body allows the connector fit to be checked
- Superior cable pull strength
- Gold plated center pins 'snap' into place
​- Connector Body has been die-cast
​- Easy Assembly using Canare Strip & Crimp Tools

=========================================
Silahkan lihat gambar produk untuk melihat produk dengan lebih detail.
Gambar produk tertera adalah foto yang kami ambil sendiri menggunakan barang yang kami jual dan berikan kepada customer.

Gambar produk
