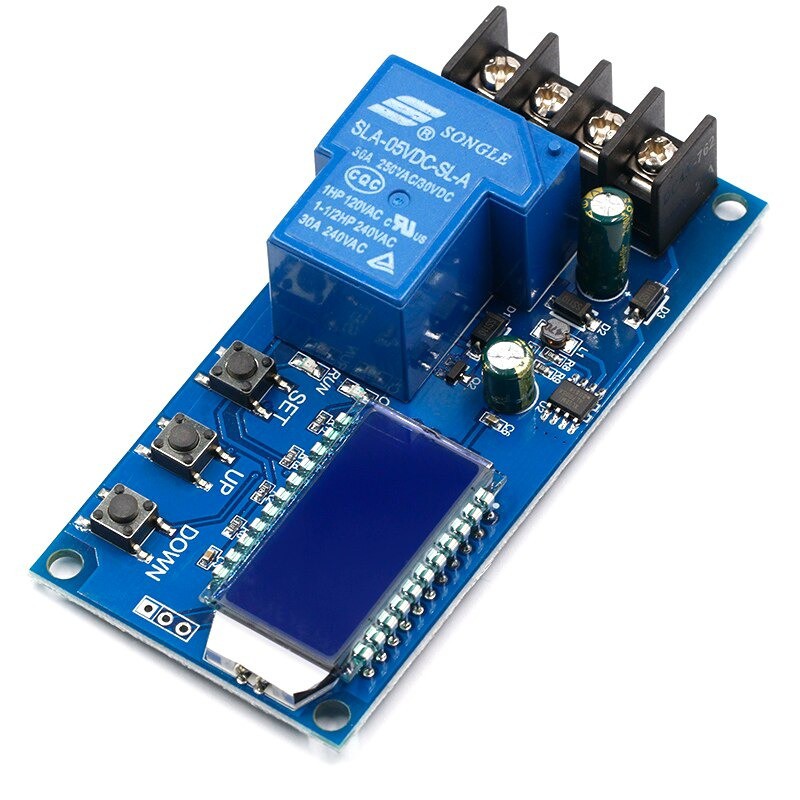

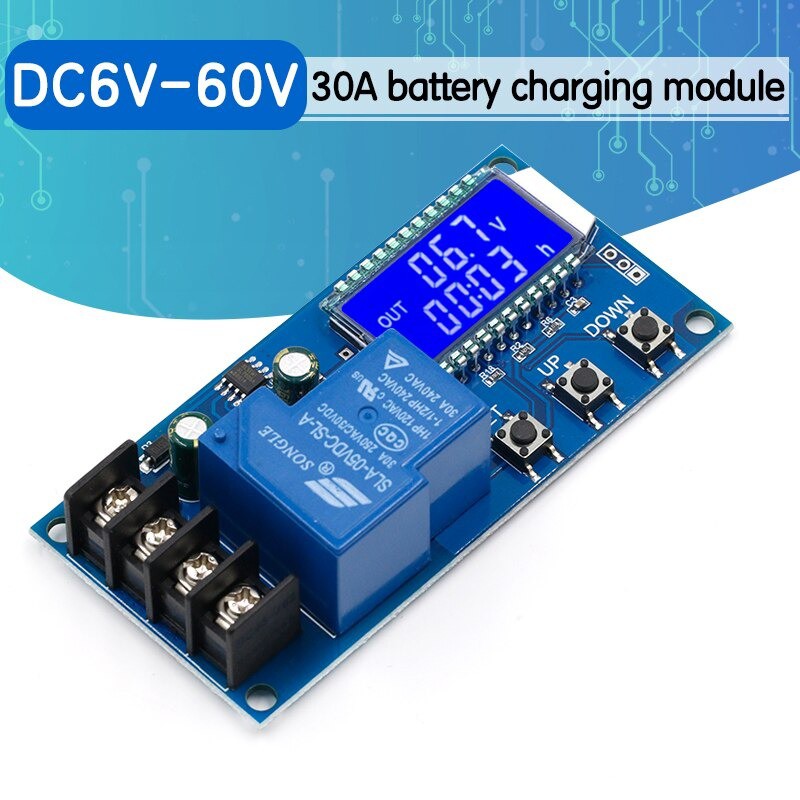

30A 6-60V Lead-acid Lithium Battery Charger Control Module Automatic charging control Overcharge

Detail 30A 6-60V Lead-acid Lithium Battery Charger Control Module Automatic charging control Overcharge

Product model: XY-L30A
Control voltage: DC6~60v
Control current: 30A
Control accuracy: 0.1V
Output type: direct output
Voltage error: ±0.1V
Use range: various battery lithium batteries

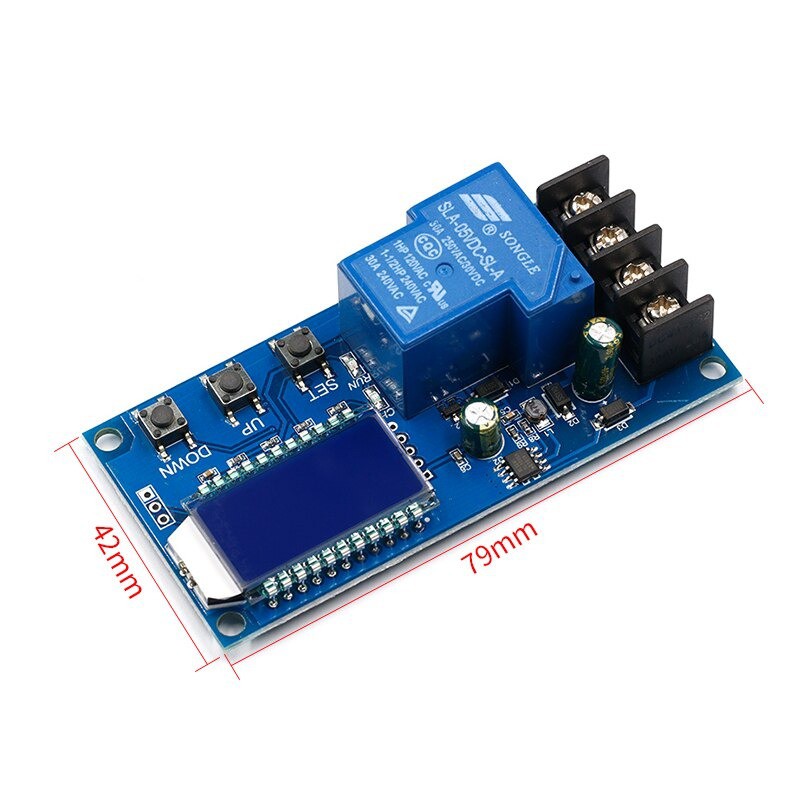

Appearance size: 79*42MM
6-60V any battery, lithium battery can be used

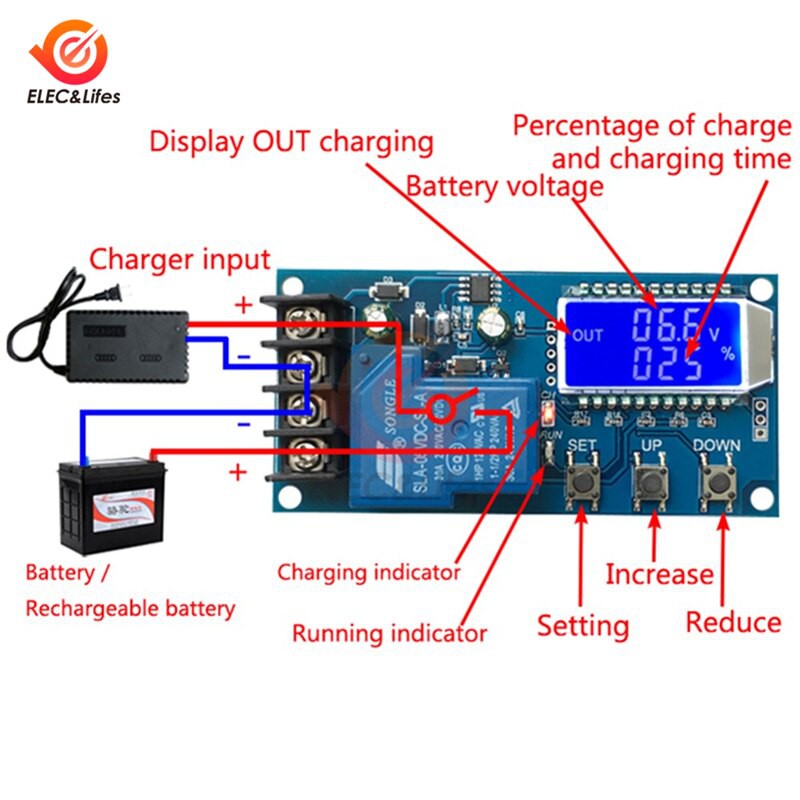

LCD display, battery voltage, charge percentage and charging time at a glance
The function is very powerful, it can automatically charge control, can control the charging time, and can set and upload the corresponding parameters through the serial port

Dimensi:
Tanpa Casing: 9 x 4.5 x 2.3 cm
Dengan Casing: 11 x 6.5 x 3 cm

Parameter Settings：
Press and hold the SET button to enter the parameter setting interface, the LCD will display SET;
After entering the parameter setting interface, switch the set parameters by short pressing the SET button;
After selecting the parameters, you can use the UP/DOWN button to set, support short press, long press (rapid increase or decrease);
If you want to set other parameters, repeat steps b), c);
After all the parameters are set, press and hold the SET button to exit and save

Package list:
1 x Modul Charger

Gambar produk
