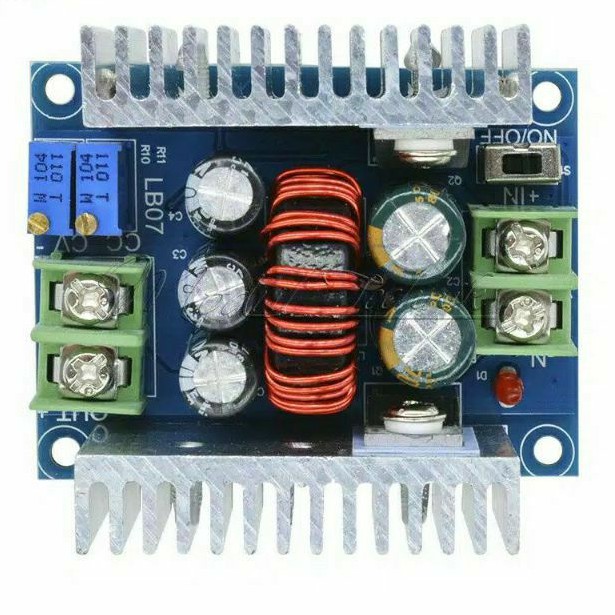

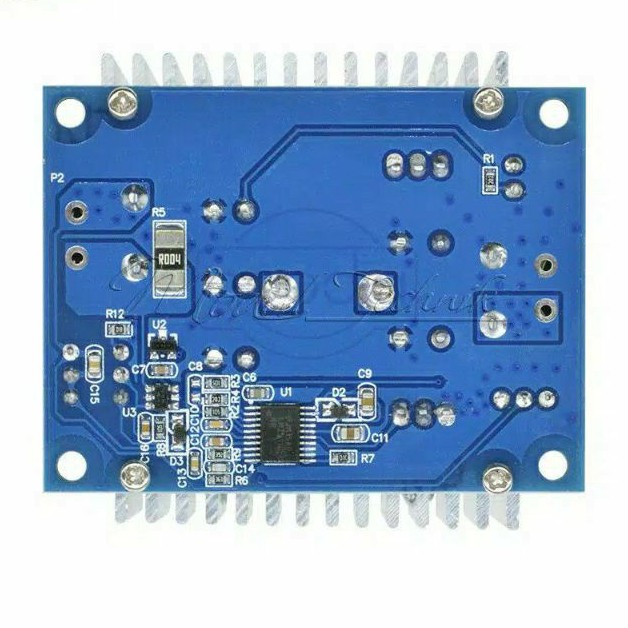

Detail 300W 20A Constant Current Adjustable Buck Converter Step-Down cc cv

Specifications:
Input Voltage: 6V to 40V DC(10V to 40V is suggested)
Output Voltage: 1.2V to 36V DC
Output Current: 20A(max.), 15A(suggested) Efficiency: 95%(24V to 12V, 20A)
Output Ripple: <50mV
Wiring Method: Terminal
Short Circuit Protection: Self-recovery(cannot short circuit for long time)
Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06"
VO+: Output positive VO-: Output negative +IN: Input positive -IN: Input negative CV: Output voltage adjustment CC: Output current adjustment EN: Enable, low voltage level shut off output; suspension, high voltage level is effective When input and output is common grounded, no-load CV output constant voltage,CC output constant current
