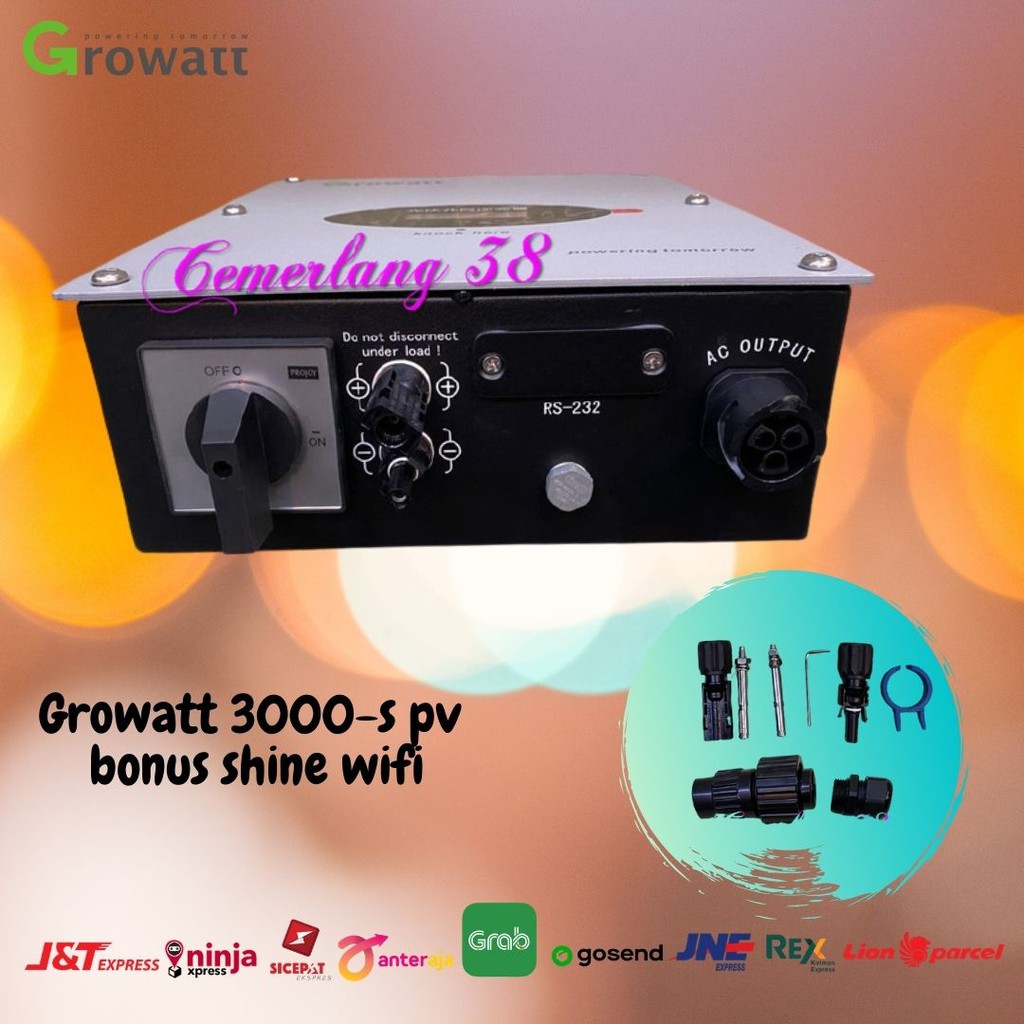

3000W On Grid Growatt 3000-S PV Grid Inverter 3000 W BONUS Shine WIFI

Detail 3000W On Grid Growatt 3000-S PV Grid Inverter 3000 W BONUS Shine WIFI

POWER INVERTER GROWATT 3000-S/ ON-GRID 3000Watt Support Wifi

Kami berikan module Shine WI FI secara GRATIS

Leading-edge Technology :
- Maximum efficiency of 97,6% and wide input voltage range
- Internal DC Switch
- Transformerlles GT Topology
- Compact Design
- Ethernet / RF Technology / Wi-Fi
- Sound Control
- Easy Installation

Spesifications : Growatt-3000S
Input Data (DC)
- Max recommended PV Power (For Module STC) : 3900W
- Max DC Voltage : 550V
- Start Voltage : 80V
- PV Voltage Range : 70V-550V
- MPP work Voltage range/nominal voltage : 70V/550V/360V
- Full Load Dc voltage range : 250V-500V
- Max Input Current : 13A
- Max Input Current Per String : 13A
- Number of Independent MPP trackers/Strings per MPP tracker : 1/1

Output (AC)
- Rated AC Output Power : 3000W
- Max AC Power : 3000W
- Max Output Current : 14.3A
- AC nominal voltage;range : 220,230, 240V ; 180Vac-280Vac
- AC grid frequency;range : 50. 60Hz -+ 5Hz
- Power Factor : 1
- Displacement Power Factor : 0.8 Leading
- Configurable : 0.8 Lagging
- THDi : - AC Connection : Single Phase

Efficiency
- Max efficiency : 97.6%
- Euro Weighted efficiency : 97.3%
- MPPT efficiency : 99.5%

Protections Devices
- DC Reverse polarity protection : Yes
- Dc Switch rating for each MPPT : Opt
- Output over current protection, Output over voltage protection-varistor : Yes
- Ground fault monitoring, Grid Monitoring : Yes
- Integrated all - pole sensitive leakage current monitoring unit : Yes

General Data
- Operating Temperature range : -25C + 60C with derating above 45C
- Noise emission (typical) : - Altitude : 2000m without derating
- Self-Consumption night : - Environmental Protection Rating : IP65
- Relative Humidity : 100%

Features
- DC Connection : H4/MC4(opt)
- AC Connection : Connector
- Display : LCD
- Interfaces : RS232 / RF / Wi-Fi / LAN / GPRS : Yes/Opt/Opt/Opt /Opt
Dimenssions (W / H / D) in mm : 271 * 320 * 142 mm

Maaf TIDAK ADA GARANSI TOKO
KLIK = MEMBELI = SETUJU, NO COMPLAINT / NO REFUND

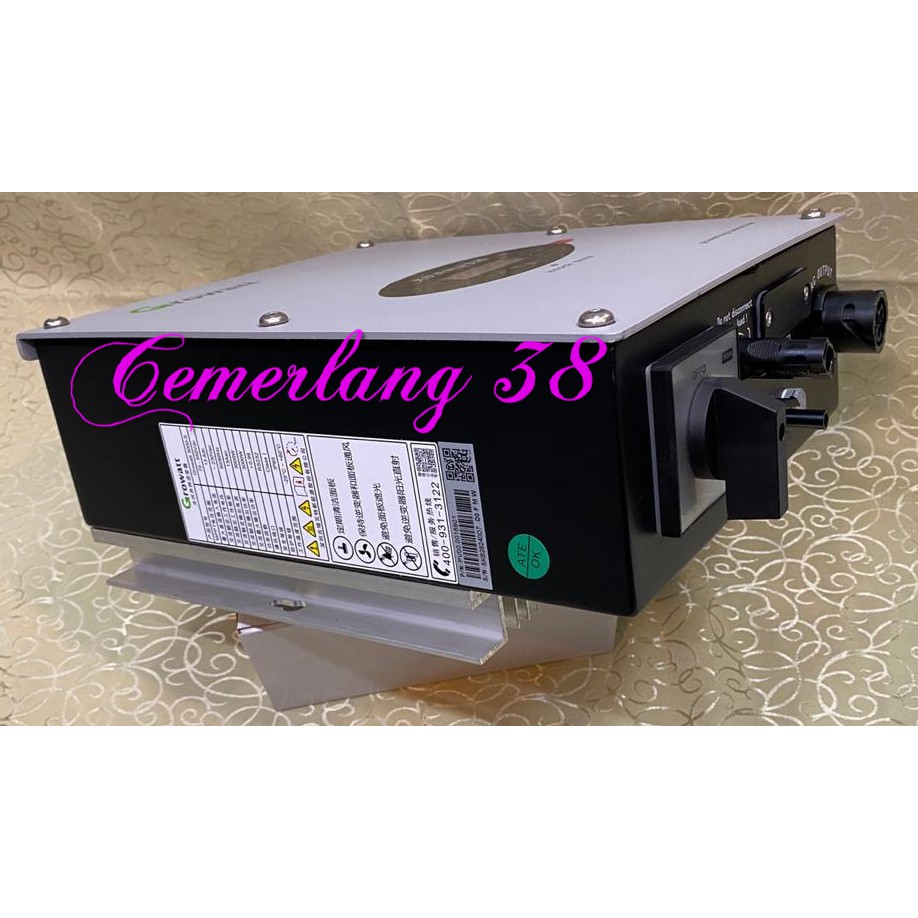

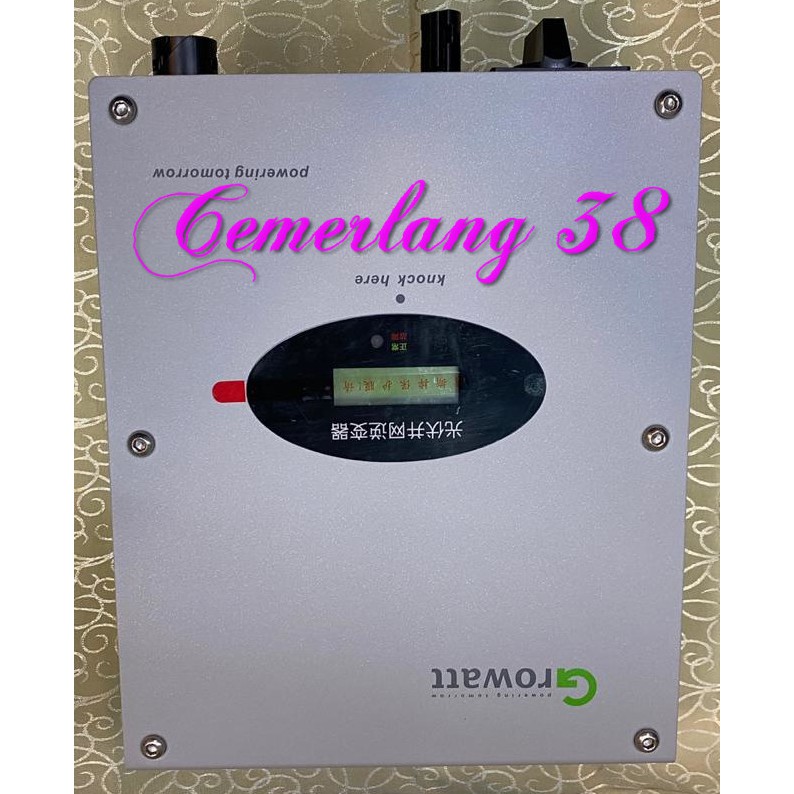

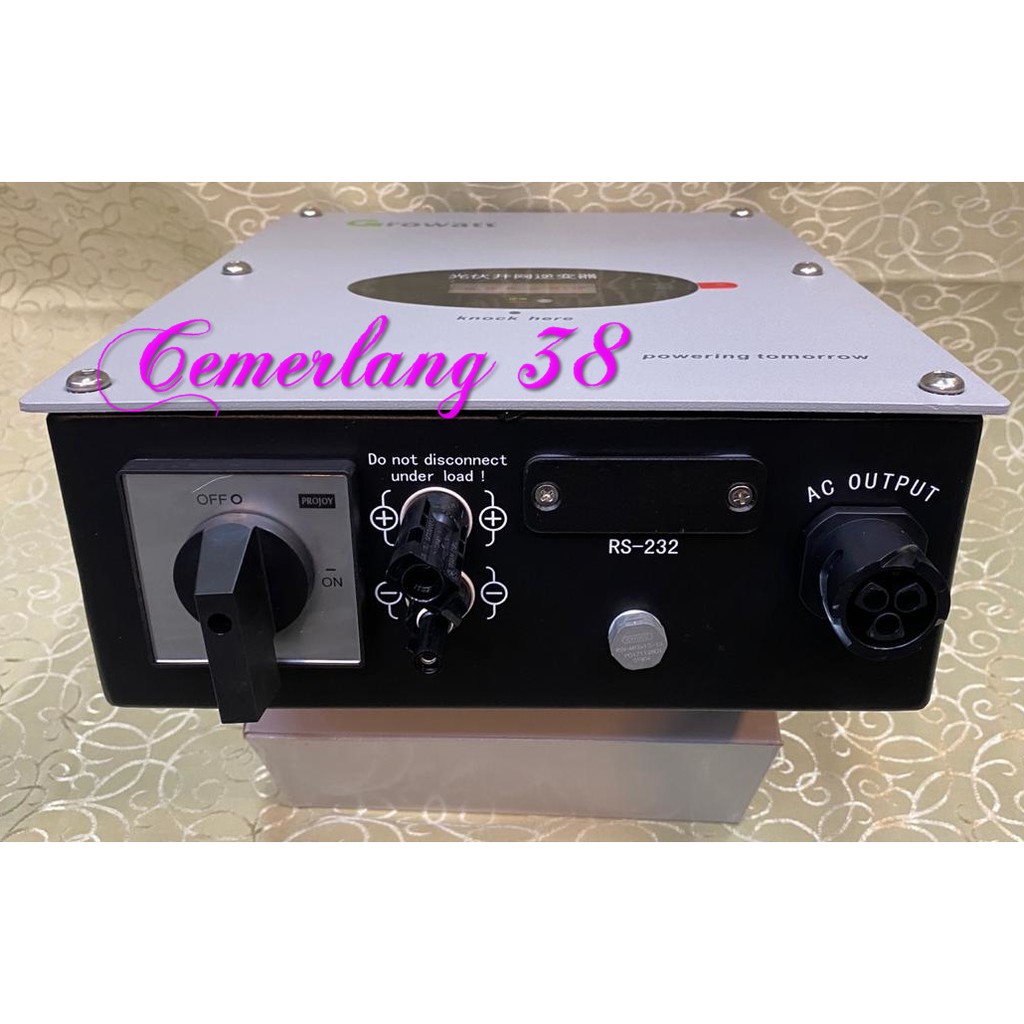

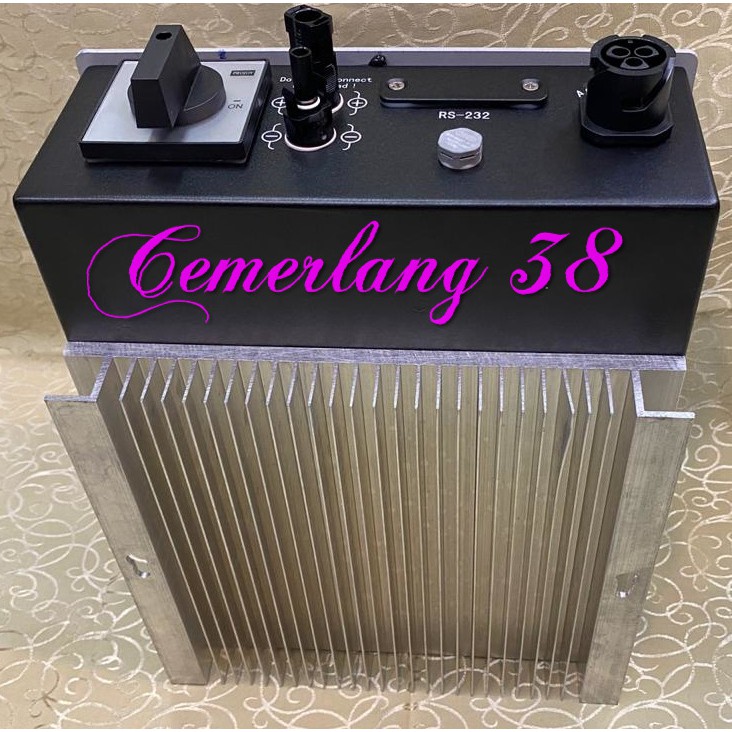

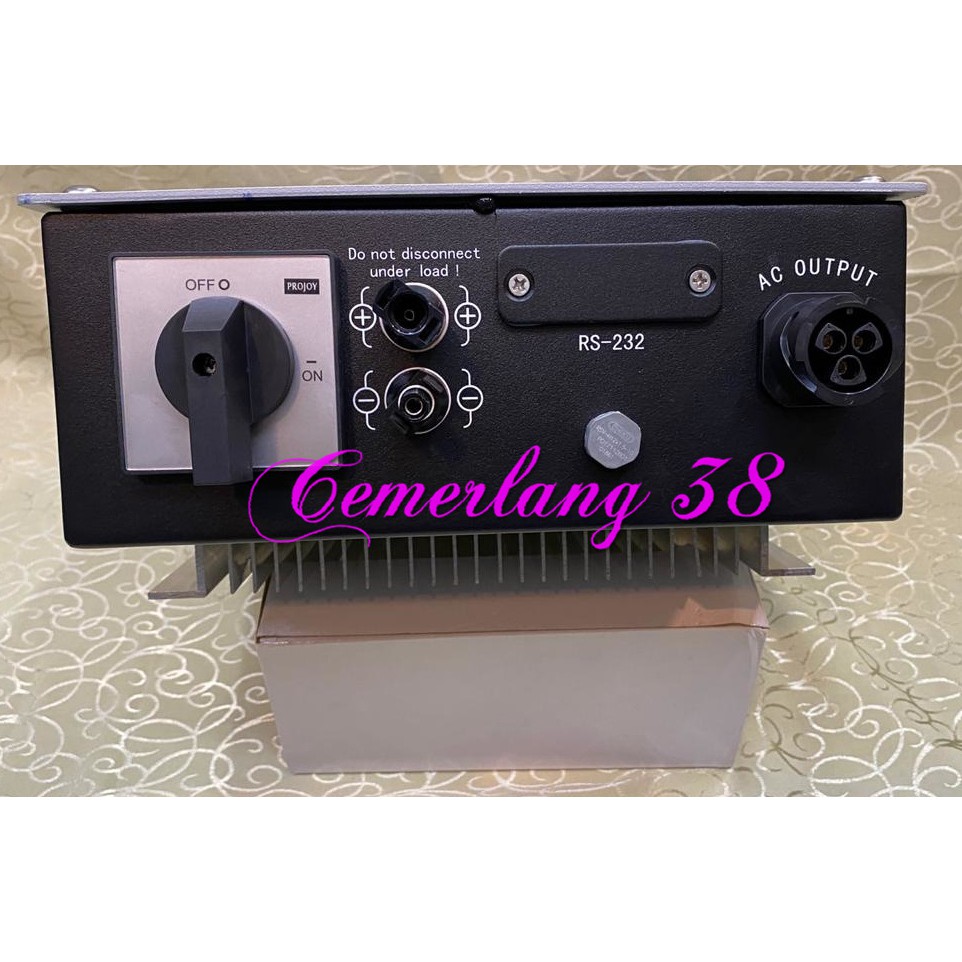

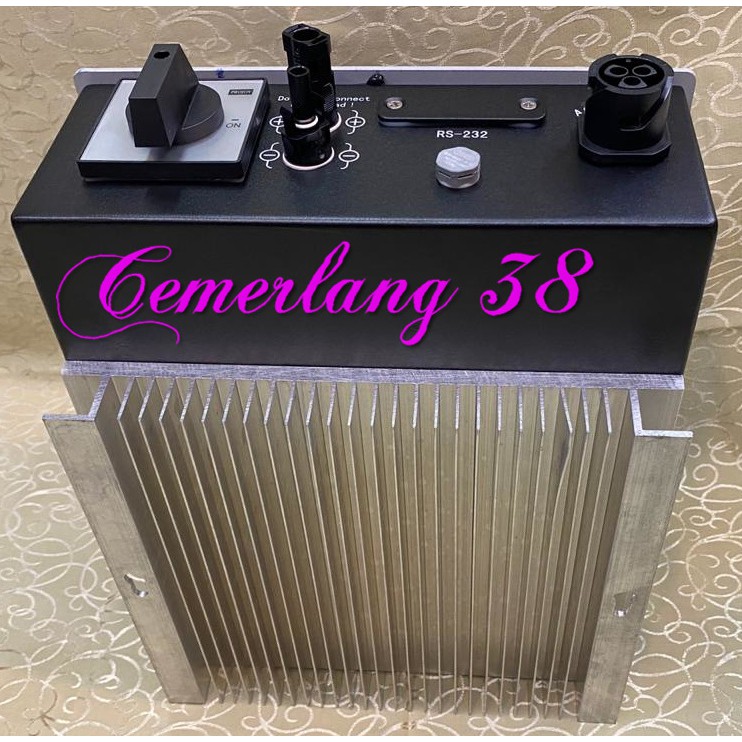

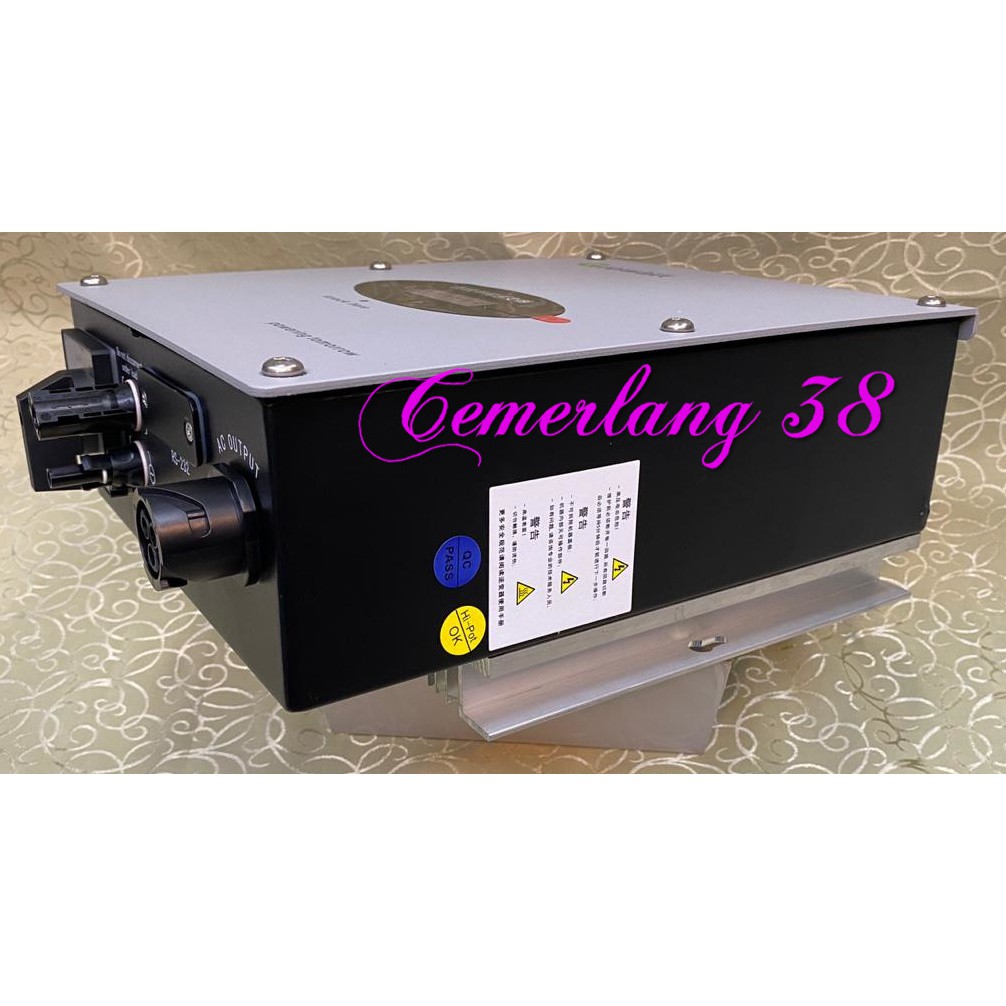

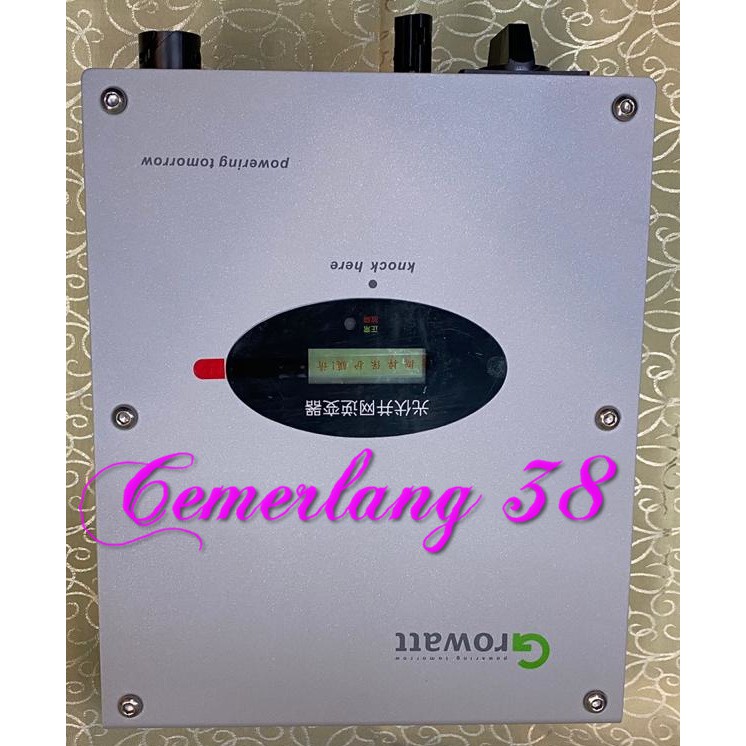

Gambar produk
