Detail 30 T gigi 30T Timing pulley belt width 21mm roda velg sumo robot wheel
1pcs 5M30T Bore: 6mm and 8mm(Teeth Leght: 16MM) Timing Belt Pulley 30 Teeth For Stepper Motor

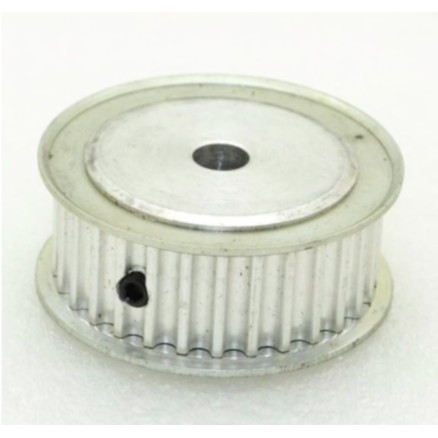

Product Name: Timing Pulley
Model: 5M30T
Tooth Number: 30
Teeth Pitch: 5mm
Teeth Width (Approx.): 16mm (Fit for 15mm Belt Width)
Screws Diameter: 2 x M5
Material: Aluminium
Total Height(Approx.): 21mm
Outside Dia(Approx.): 51mm
Weight: 96g/pc(+/-5g)/pc
Gambar produk
30 T gigi 30T Timing pulley belt width 21mm roda velg sumo robot wheel
