Detail 3 Phase Power Analyzer Lutron DM-6093 Original

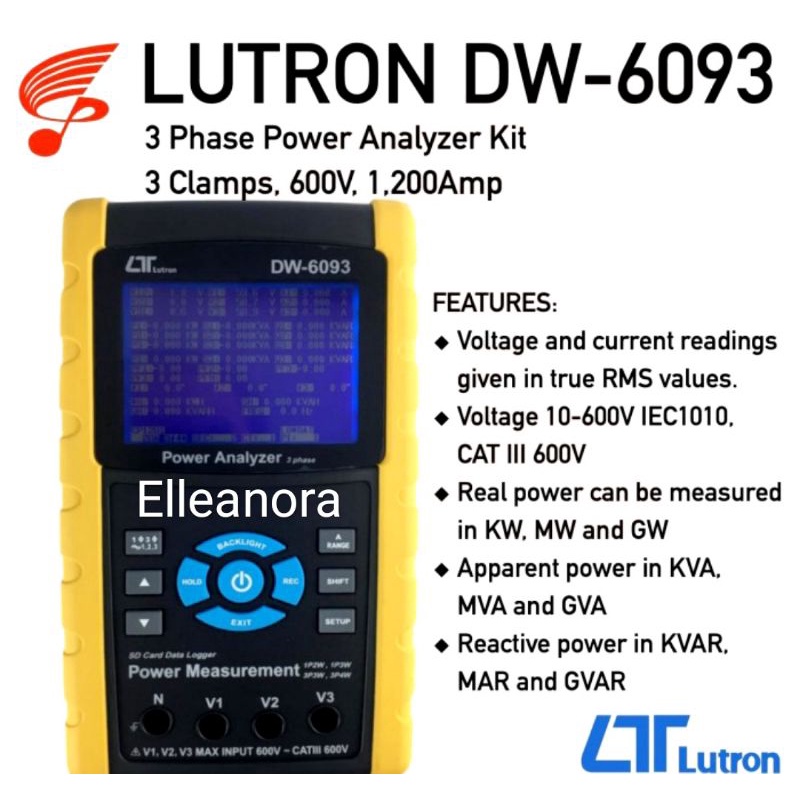

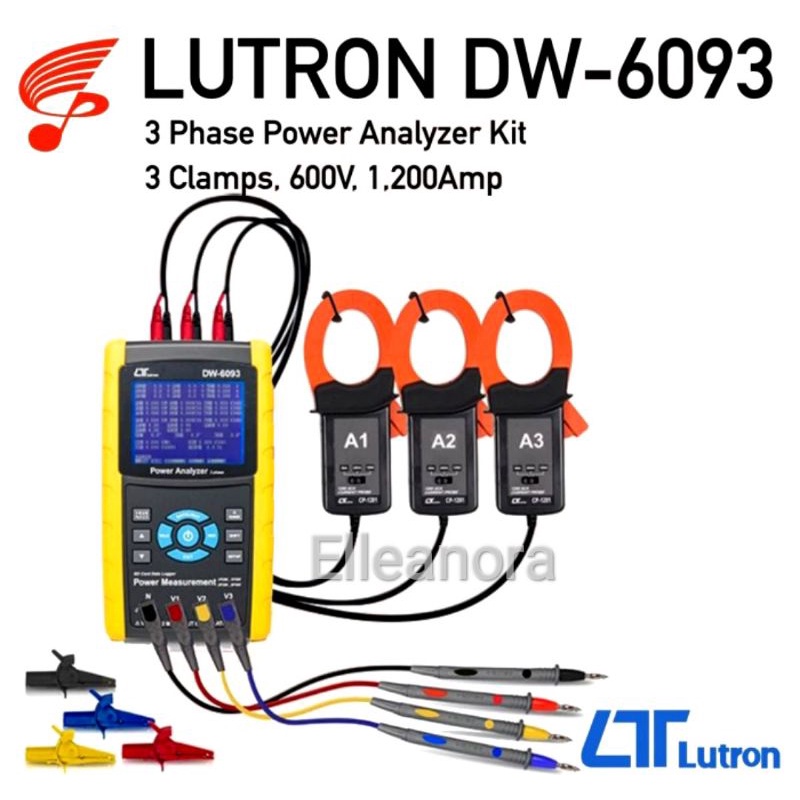

3 Phase Power Analyzer Lutron DM-6093 Original
Brand : Lutron Model : DW-6093
*Analysis for 3 phase multi-power system, 1P/2W,1P/3W, 3P/3W, 3P/4W *3 current probes (CP-1201) are included. If change the current probes, the calibration procedures are not necesssary. *Current probe input signal volage (ACV):200 mV/300 mV/500 mV/1 V/2 V/3 V; *Current probe input current range (ACA):20 A/200 A/2000 A ( 1200 A)/30 A/300A /3000 A/6000 A *Voltage & Current are the True RMS value *True Power (KW,MW,GW) measurement *Apparent Power ( KVA,MVA,GVA ) measurement. *Reactive Power ( KVAR MVAR、GVAR) measurement *Watt-Hour ( WH,SH,QH,PFH ) *Power Factor( PF ), Phase Angle( Φ ). *Voltage range : 10 to 600 ACV *Programmable CT ratio (1 to 600) and PT ratio (1 to 1000) *Meter can cooperate the universal current probe *ACV input impedance is 10 Mega ohms *Safety Standard:IEC 1010,CAT III 600V *Built-in clock and Calendar,real time data record with SD memory card,sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer,it can down load the all the measured value with the time information ( year/month/data/hour/mimute/second ) to the Excel directly,then user can make the further data analysis by themselves. Measurement: *ACV *ACA *AC WATT ( True Power ) AC WATT( Apparent Power ) AC WATT( Reactive Power ) *Power factor *Phase angle *Frequency

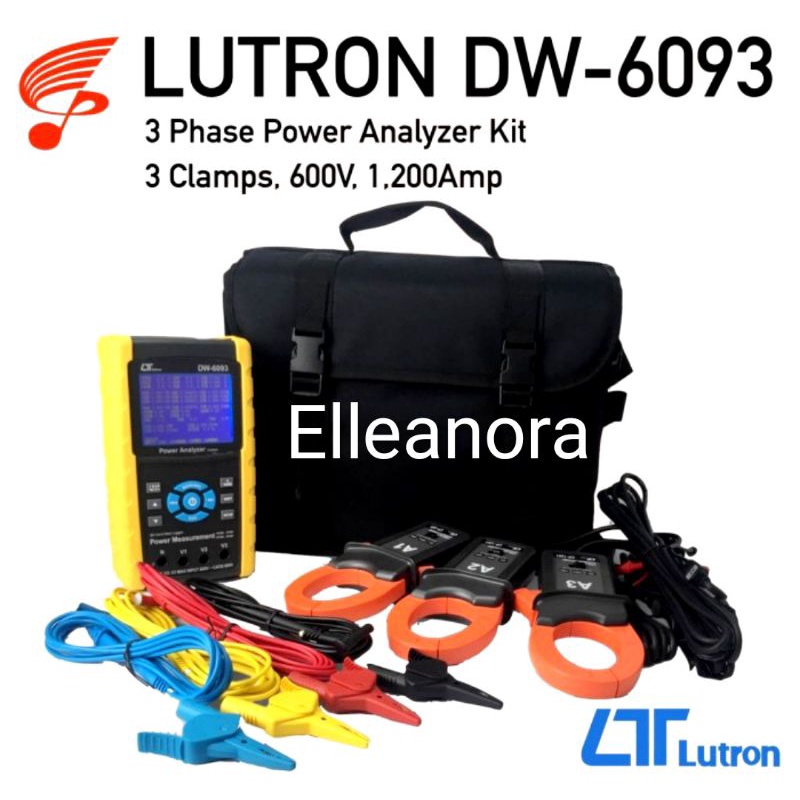

Standard Accessories: *Instruction manual...1 PC *Test Leads (TL88-4AT)... 1 Set (4 PCs) *Alligator clips (TL88-4AC)...1 Set (4 PCs) *Clamp Probe (CP-1201)...3 PCs *AC to DC 9V adapter...1 PC *SD card (2G)...1 PC *Carrying bag...1 PC
Optional Accessories *2000 Amp current probe,CP-2000 *200 Amp current probe,CP-200 *Flexible 3000 Amp current probe,CP-3000
