3 Phase 380V 3-63A Din rail Voltmeter Ammeter Adjustable Over and Under Voltage Current Limit Protection Monitor Relays Protector
Deskripsi singkat
Elektronik > Kelistrikan > Pengaman Stop Kontak > 3 Phase 380V 3-63A Din rail Voltmeter Ammeter Adjustable Over and Under Voltage Current Limit Protection Monitor Relays Protector
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail 3 Phase 380V 3-63A Din rail Voltmeter Ammeter Adjustable Over and Under Voltage Current Limit Protection Monitor Relays Protector
Tersedia 2 varian:-Voltage Protector 3P 230V AC
-Voltage Protector 3P 380V AC
1.Over-voltage protection: Adjustable
2.Under-voltage protection: Adjustable

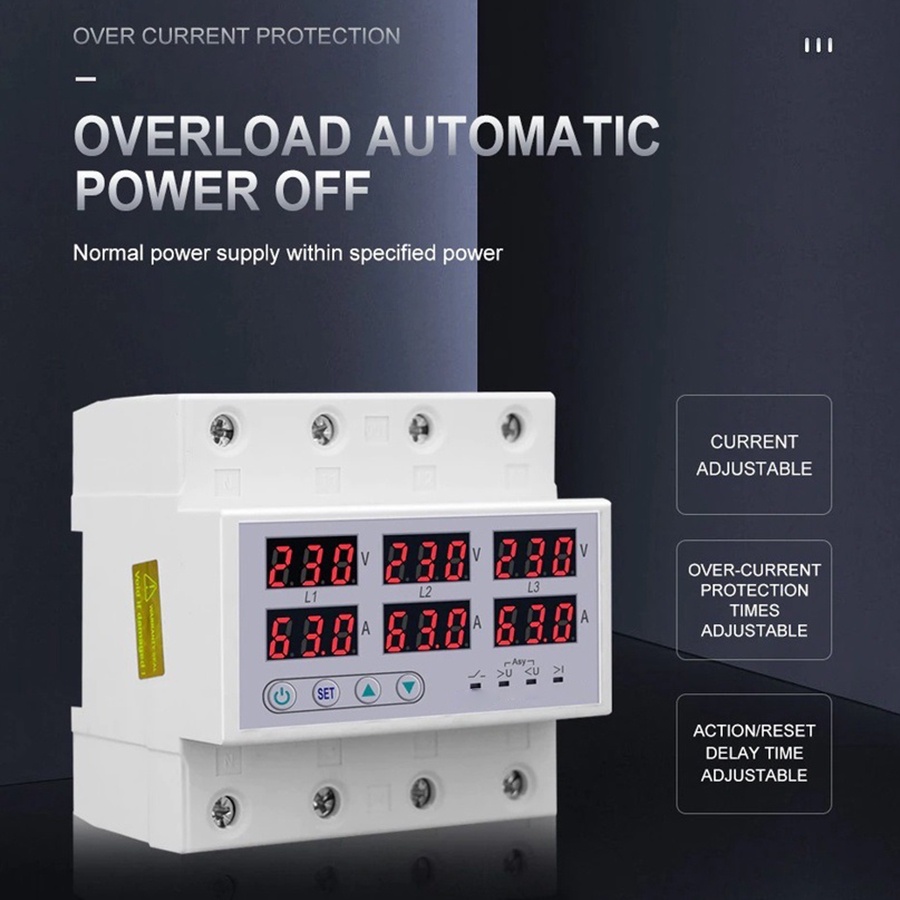

3.Over-Current protection: Adjustable
4. Asymmetry protection
5.Phase squence protection
6. Active time and reconnect time adjsutable
7. Voltage and current can be manually calibrated

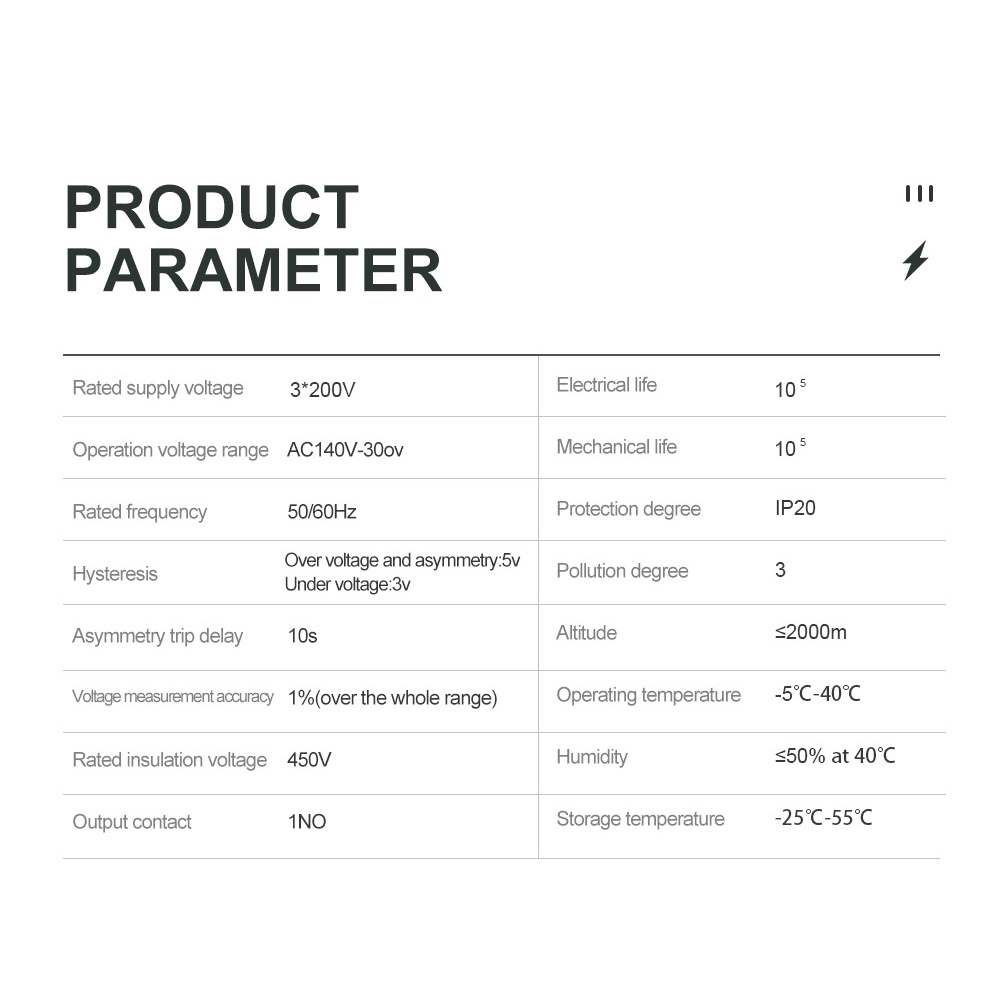

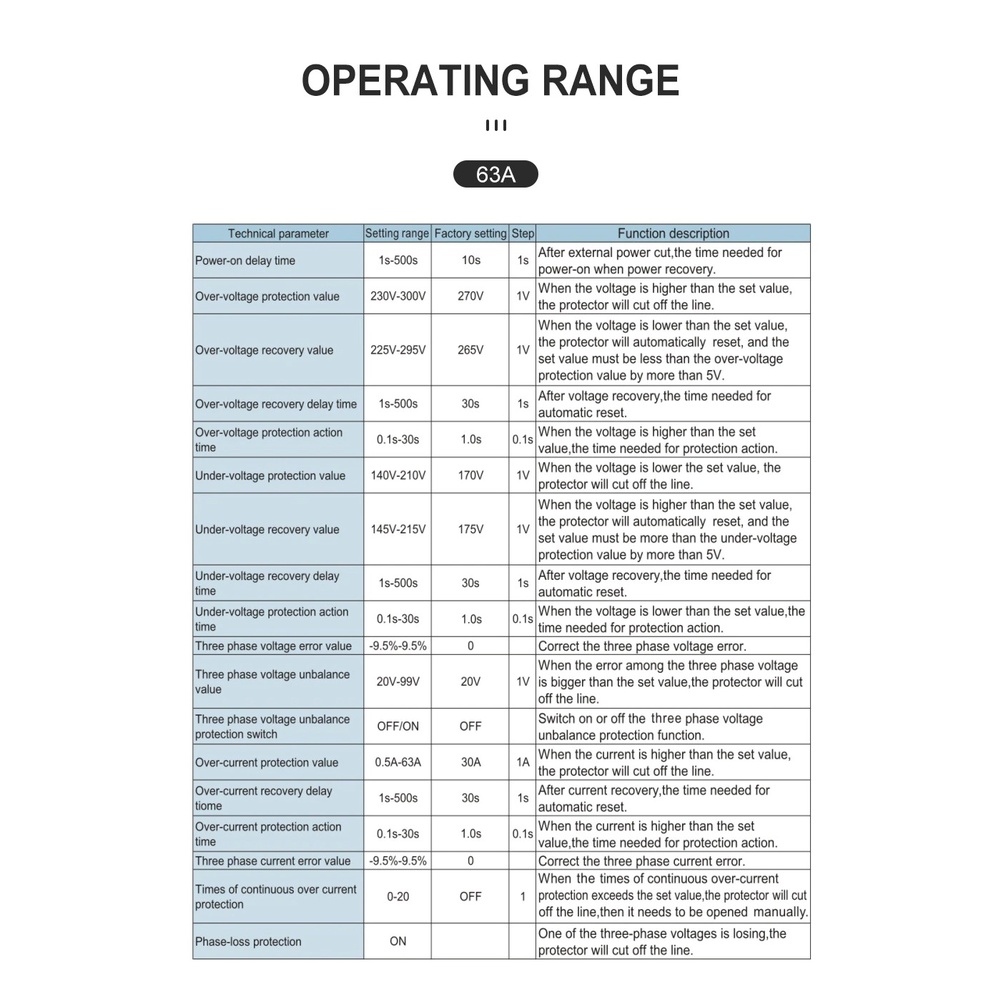

Spesifkasi:
Power On Time: 1-500S
Over Voltage: 230-300V
Recovery Voltage: 220-295V
Recovery Time: 1-500S
Power Off delay Time: 0.1-30S
Under Voltage: 140-210V
Recovery Voltage: 145-215V
Recovery Time: 1-500S
Power Off delay Time: 0.1-30S
Voltage Deviation: -9.5 to 9.5%
Asymmetry: 20-99V
Phase squence protect: on/off
Over Current: 3-63A
Recovery Time: 1-500S
Power Off delay Time: 0.1-30S
Current Deviation: -9.5 to 9.5%
Continues Over Current Times: 1-20 off
Isi dalam paket:
1 x Din rail Voltmeter Ammeter Monitor
1 x User Manual

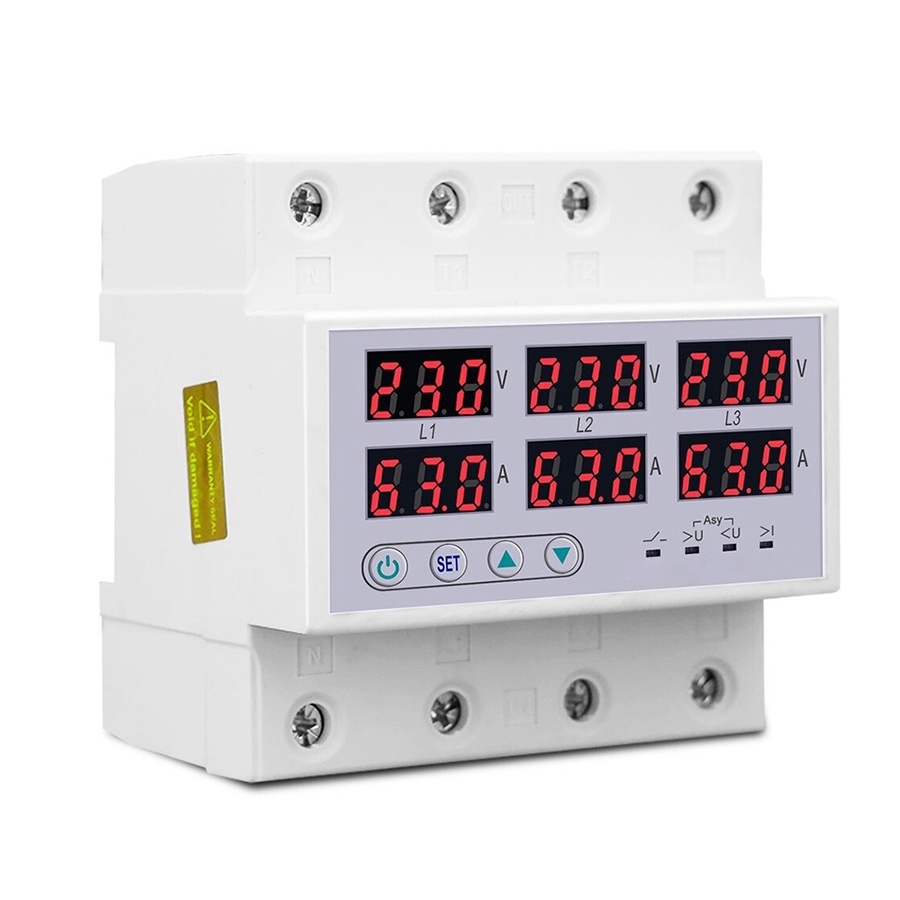

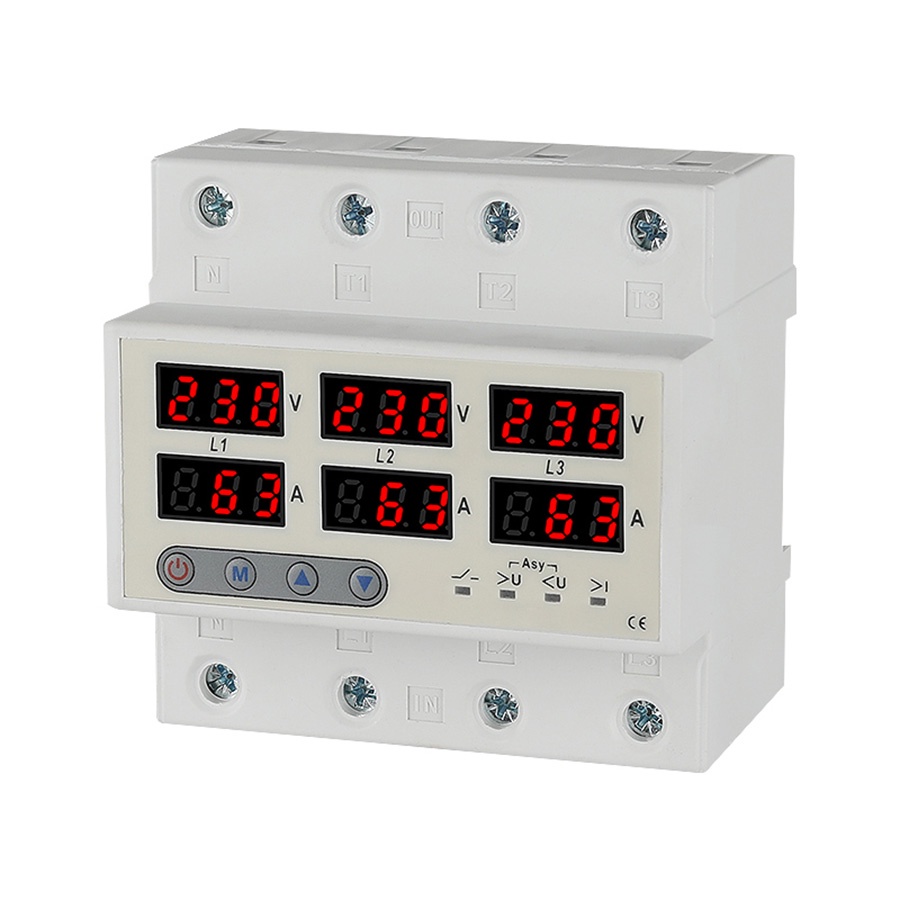

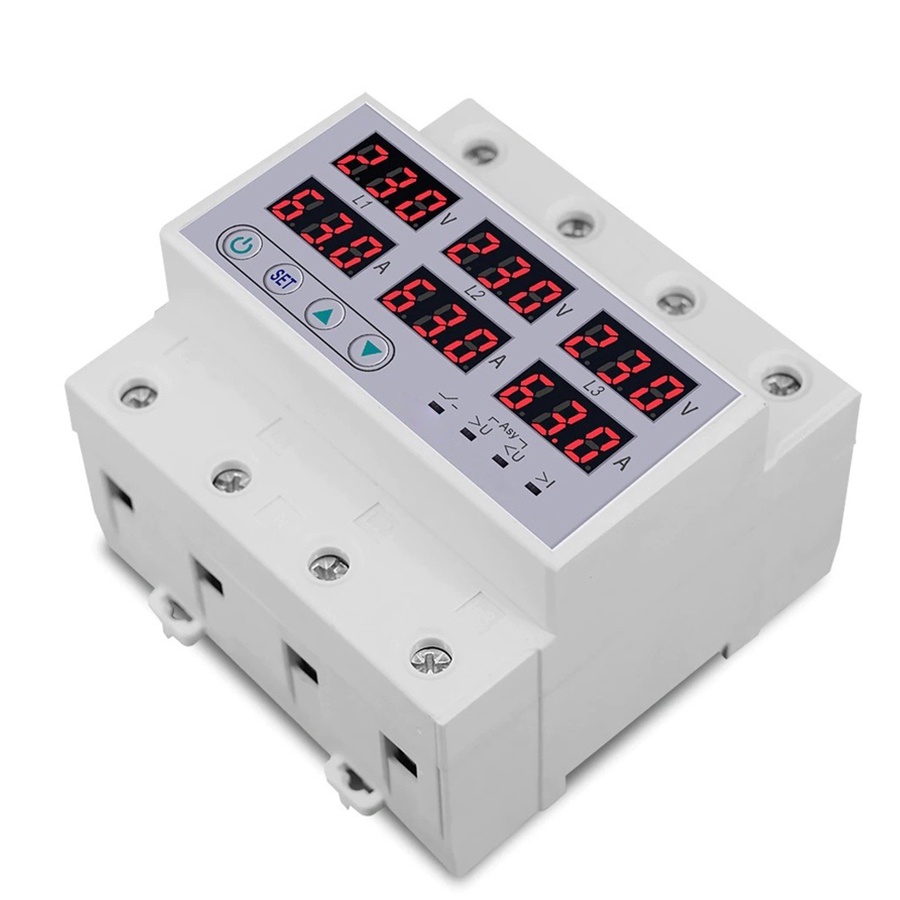

Gambar produk
