2x40W Bluetooth MP3 Player Kit USB TFT FM Radio Stereo D025BT

Detail 2x40W Bluetooth MP3 Player Kit USB TFT FM Radio Stereo D025BT

Specifications :
Power In : DC7V-26V
Support Audio Format : WMA, MP3, WAV, APE, FLAC
Size : 107*25mm
Amplifier : 2x40W
Material : Plastic + PCB Board

Major Functions:
1. Double decoding,support MP3/WMA/WAV format music
2. Support Wireless BT music and Wireless BT call function
3. Display with digital tube
4. Support USB/MMC/SD/MMA card
5. Power off memory function 24C02
6. Support 5-10 meters distance infrared remote control operation
7. Support FM(87.5MHZ-108.0MHZ)
8. Buttons : VOL-/ AUTO / VOL+ / MODE
9. Support LINE-IN/ LINE-OUT
10. Support power automatic protection system(the PCBA will not burn out if the positive and negative power is reverse,it only not working)
11. The highest volume level is 30
12. Support for pause / single loop play / replay all the repertoire
13. Input DC 7V-26V, Amplifier 2x40W

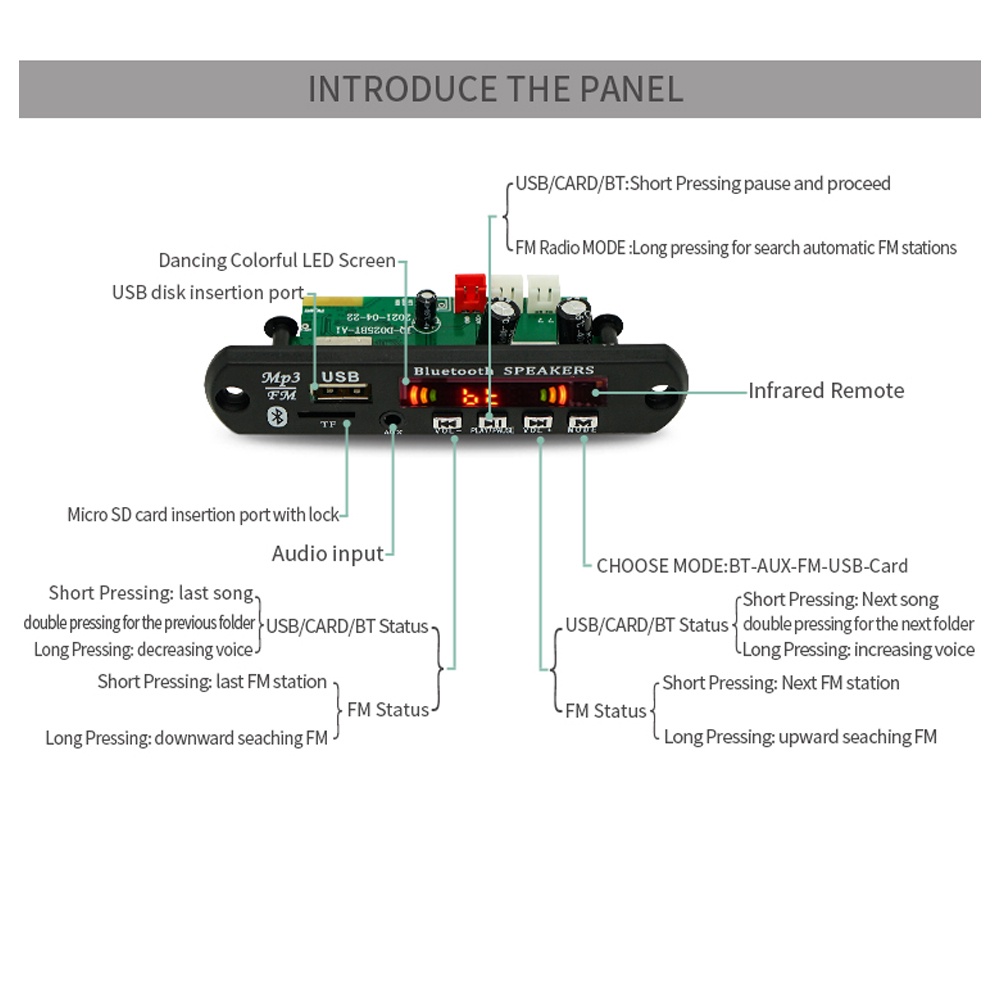

Button Operation Instructions:
1. Vol- button (last song / volume reduction): in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under Wireless BT function, short press is Wireless BT one, long press is volume reduction.

2. Auto button (play / pause): in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving station; in Wireless BT function, short press is playing / pause.

3. Vol+ button (next song / volume increase): in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number; under Wireless BT function, short press is Wireless BT next song, long press is volume reduction.

4. MODE button:switch between USB/SD/FM/AUX/BT functions in turn

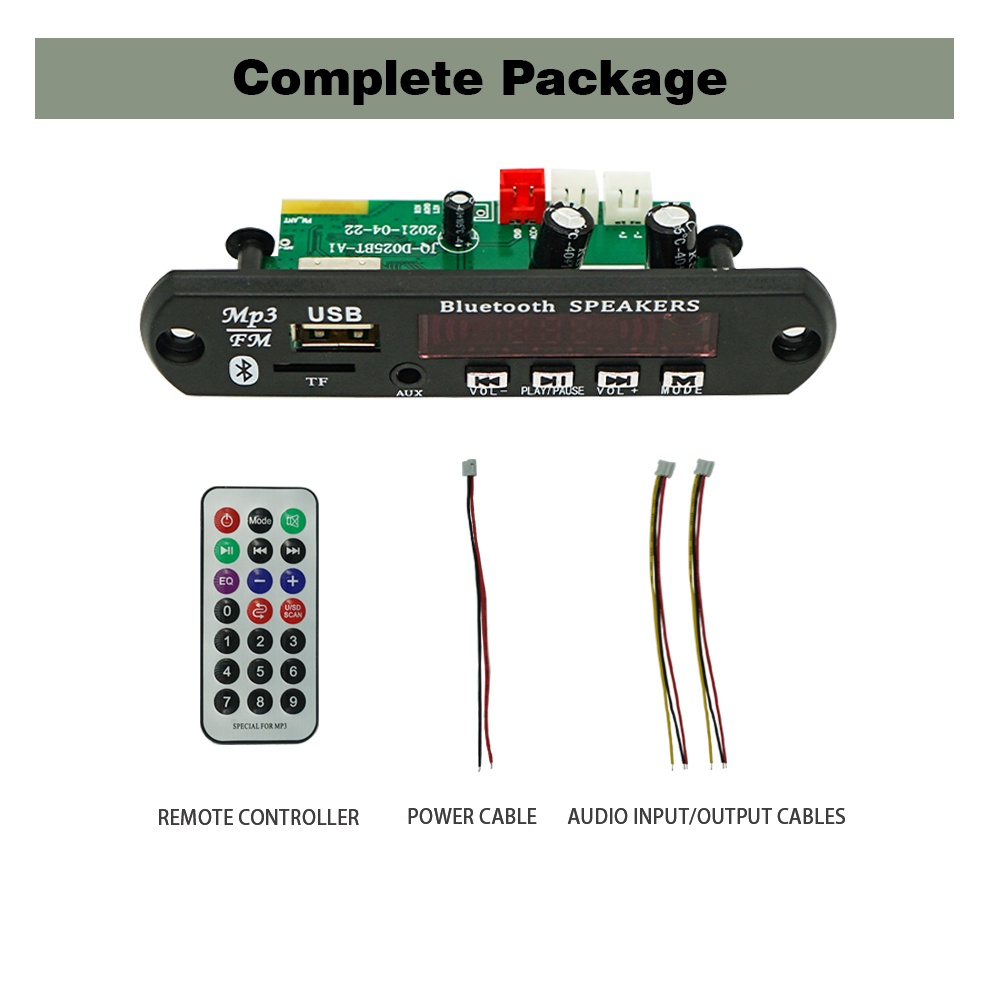

Packing List :
1X MP3 Module
1X Remote + Battery
1X Power Cable
2X Speaker Cables

Gambar produk
